4|Transport, installation, storage, disposal
4.9.3 Setting the machine height
Preadjusting the machine height
ü The machine height can be varied by about 70 mm:
a) Remove the cover panels in the area of the adjustment feet or open the casing
doors.
b) Lift the machine with a forklift and secure the load against falling.
c) Preadjust all the adjustment feet as described below. Do not stand or walk un-
der suspended loads.
Fig.12: Lift the machine
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 75/695
4|Transport, installation, storage, disposal
11 2

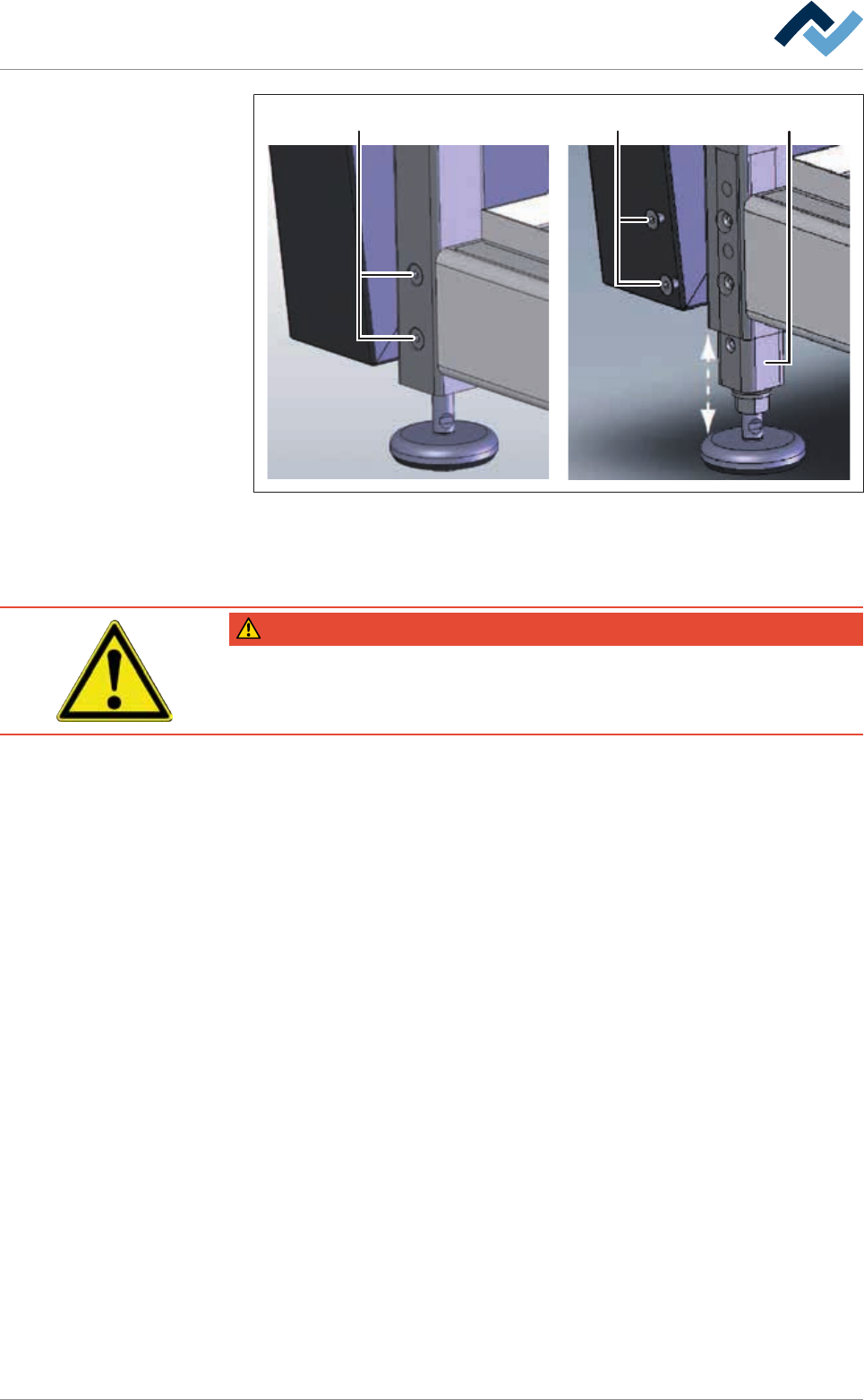

ü To preadjust the adjustment feet:
a) Loosen and remove both screws (1).
b) Pull out the internal pipe (2) to adjust the machine height.
DANGER
Risk of accidents!
a) The inner pipe may be pulled out by a maximum of 70 mm!
b) After the upgrade, screw back in again and tighten all screws.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 76/695
4|Transport, installation, storage, disposal
max. 70mm
1

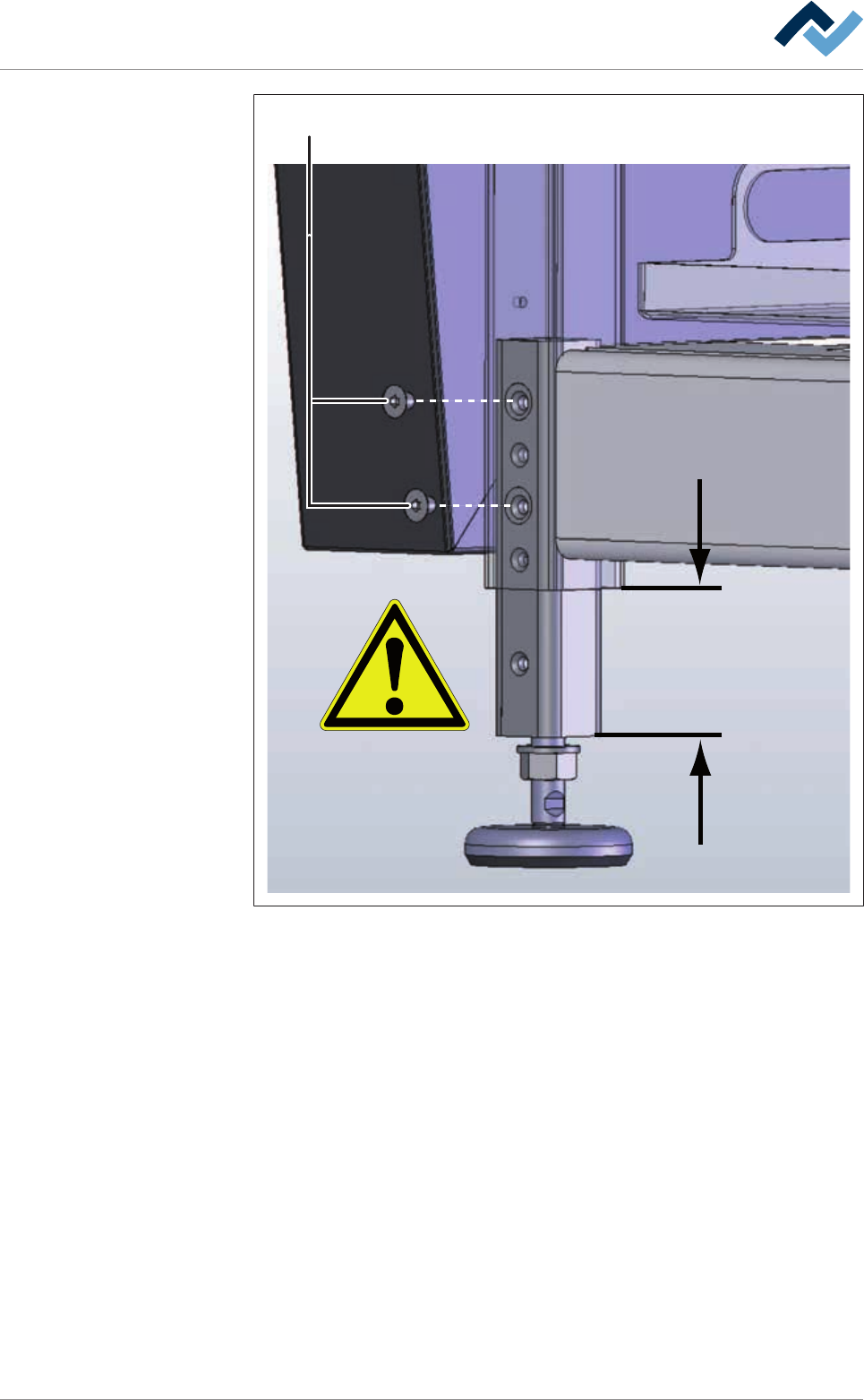

Fig.13: Secure the internal pipe with the two screws
ü To complete the preliminary adjustment:
a) Drive in and tighten the two screws (1).
b) Perform this same procedure on all the adjustment feet.
c) Carefully lower the machine.
d) Refit the casings and close the casing door.
ð The exact setting of the machine height is carried out in the next step.
