9|Spare and wear parts Flexible rail 1, (single track), view [X] 1 2 5 4 3 6 Fig.277: EM113-339-20-00Af Pos Description Item number A B 1 Sliding piece (chain tensioner) 169520 x 2 Spring 6FEDZ-094I x 3 Circlip A 17 D…
9|Spare and wear parts
Pos Description Item number A B
13 Sliding piece, redirection 143640 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 555/695
9|Spare and wear parts

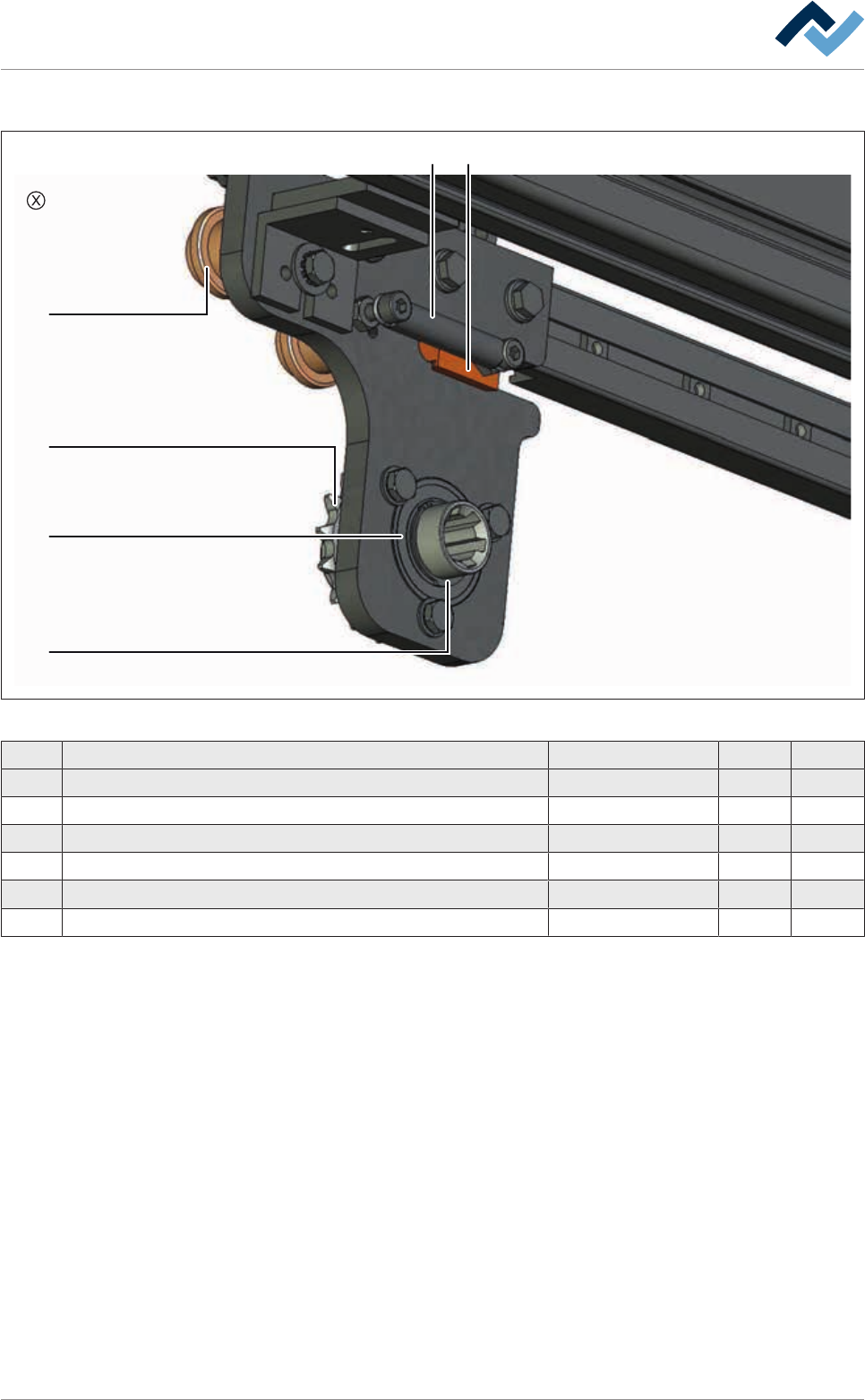

Flexible rail 1, (single track), view [X]
12
5
4
3
6
Fig.277: EM113-339-20-00Af
Pos Description Item number A B
1 Sliding piece (chain tensioner) 169520 x
2 Spring 6FEDZ-094I x
3 Circlip A 17 DIN 471 6SER-A170471 x
4 Bearing 6LA619032RS x
5 Chain wheel Z=15 170047 x
6 Deflection roller Ø 21 mm 107607 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 556/695
9|Spare and wear parts

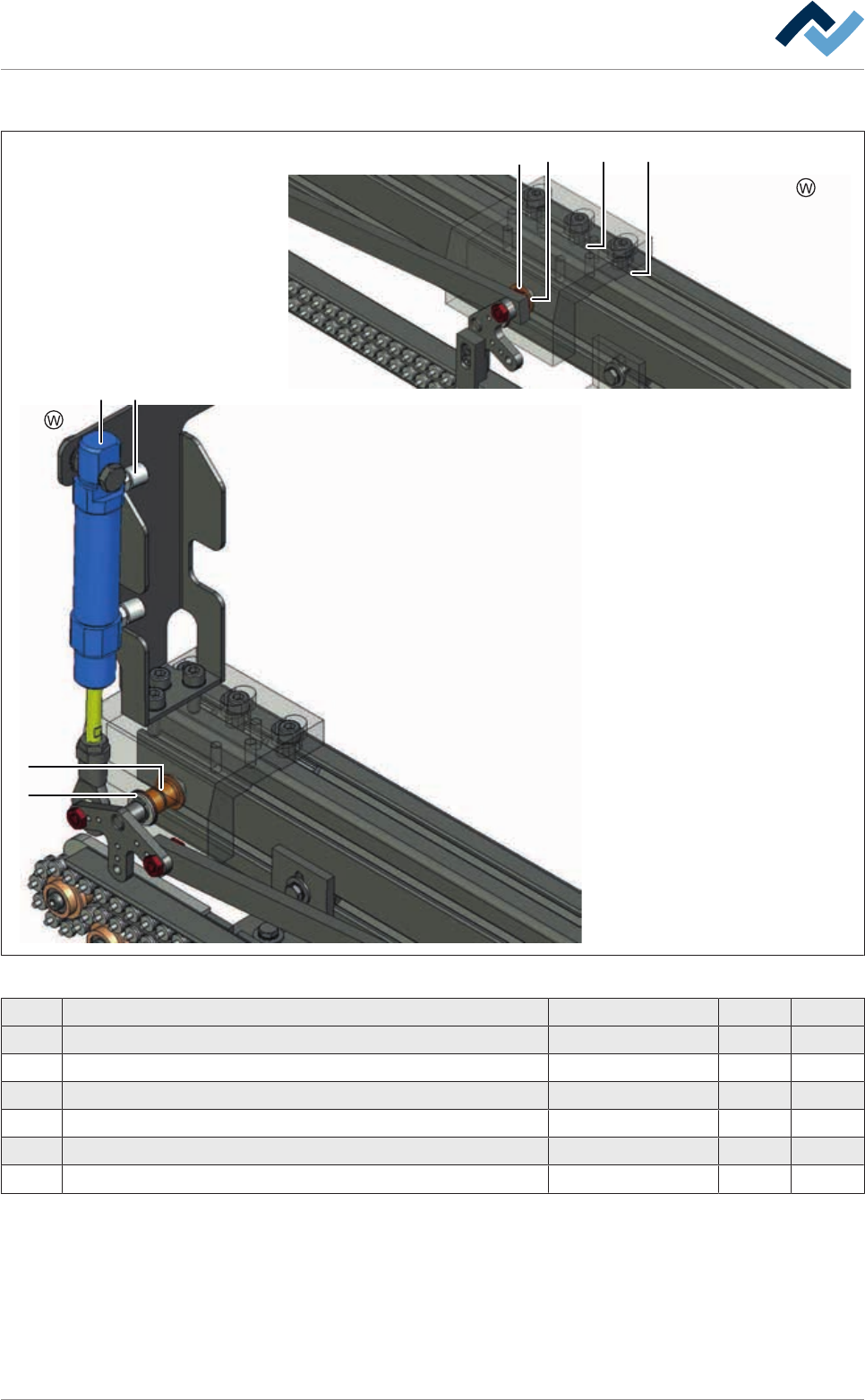

Flexible rail 1, (single track), view [W]
13
45
7
3
2 1
Fig.278: EM113-339-20-00Ag
Pos Description Item number A B
1 Groove nut STM5 * 6ZIS049 x
2 Washer 8/14X1,0 DIN988 * 6SA08X1.00 x
3 Collar bush * 143513 x
4 Straight screwing M5, stainless stell * 97965 x
5 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant * 85950 x
* Only with option [second stopper]
