8|Service and maintenance ð If the mechanism is still heavily polluted or stiff: h) Let the board fixation be repaired by trained personnel. ð The process has now been completed. With regard to this, please read the Lu…
8|Service and maintenance
21 1
3
3
4
5
52
4
2
6 6

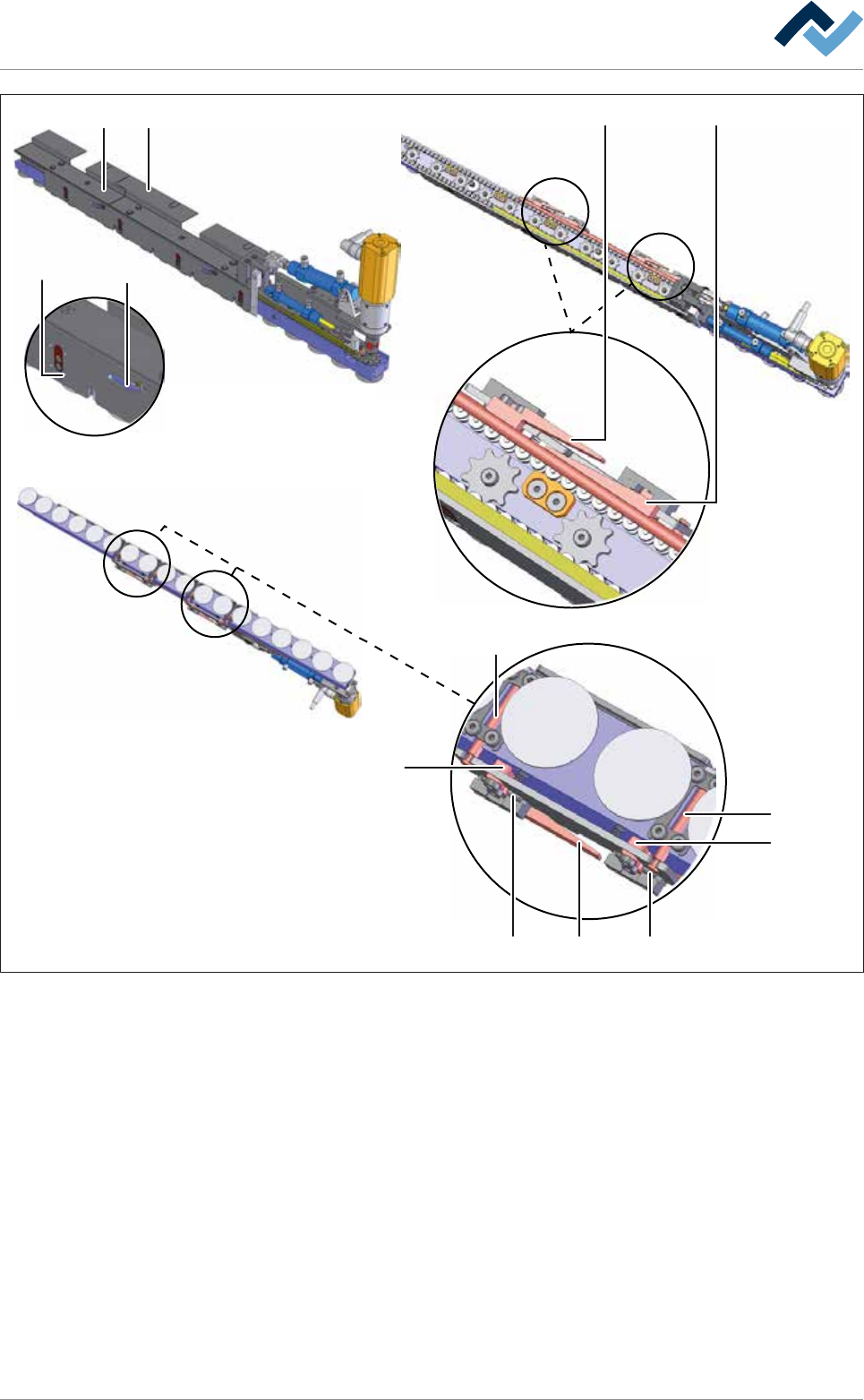

Fig.174: Board fixation: Clean and lubricate slide surfaces
ü Clean and lubricate slide surfaces of the board fixation:
ü The parts are maintenance-free and must be cleaned and lubricated only when
polluted or sluggish.
ü Use a brush or a soft wire brush to clean the slide surfaces. Do not use com-
pressed air!
a) Remove coverings (1).
b) Clean and lubricate the slide surfaces (6).
c) Clean and lubricate the wedges (2).
d) Clean and lubricate the plunger (3).
e) Clean and lubricate the slide surfaces (4).
f) Clean and lubricate the hinges (5).
ð After completing the work:
g) Check the mechanism for ease of operation.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 440/695
8|Service and maintenance
ð If the mechanism is still heavily polluted or stiff:
h) Let the board fixation be repaired by trained personnel.
ð The process has now been completed.
With regard to this, please read the Lubricants used [
}299] Chapter.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 441/695
