6|Function description
NOTE
Monitoring
As soon as the
button is displayed in yellow, data is being logged. If the button is
displayed in grey, no data is currently being logged:
Settings in the [Traceability system] frame
You can log traceability system data using the acquired data to document the
traceability of production parameters within a traceability system.
ü To log traceability system data
a) Proceed as described above in the [ERSAsoft] frame. After entering a name for
the log file, click on the
button.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 142/695
6|Function description
6.6 The [Weekly timer] setting dialog.
In this dialog, you can determine the timeframe for the machine to be ready for op-
eration. For example, the solder in the pot will be heated from the standby temper-
ature to the set temperature in due time, so that the solder has reached its set
temperature when production is started. The modules switch-on time and the time
ahead of it can be defined in the setting dialogs of the units.
ü Opening a dialog:
a) click on the
button in the top toolbar of the start dialog.
ð If the [Password:] input field is displayed:
b) enter user name and correct password.
NOTE
Are any changes possible?
The [Weekly timer] user rights are required to access this dialog. Without name and
password, the settings can only be displayed. In this case, press the [ESC] key on your
keyboard, or click on the [Cancel] button when a password is required.
After entering [User name] and [Password:] correctly, the [Weekly timer] setting
dialog is displayed:
Settings Weekly timer
Tuesday
Shut down period active
From: To:
Operation mode if timer is off
Tuesday Tuesday
Monday Monday
Wednesday Wednesday
Thursday Thursday
Friday Friday
On day On time Off day Off time Active
Voltage supply OK
User ersa Maintenance mode

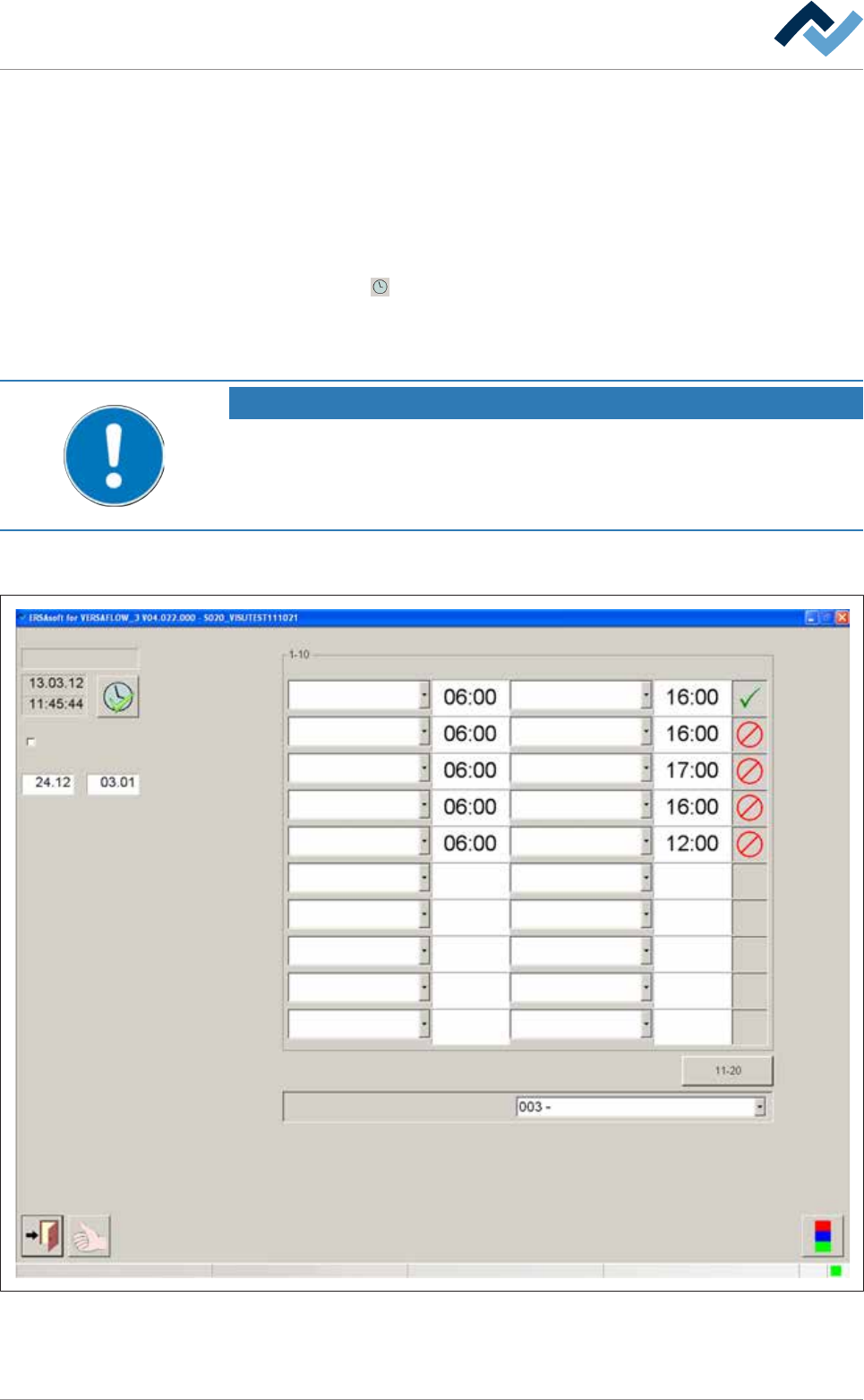

Fig.26: The [Weekly timer] settings dialog
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 143/695
6|Function description
Distinction is made between ON and OFF phases. During an OFF phase, individual
modules, e.g. the soldering module, are in the stand-by mode. During an ON phase,
the machine can start soldering.
6.6.1 Setting the current time
ü Setting the current time
a) Make sure the system time of the PC controller is set correctly.
b) Click on the
button. Follow the instructions on the screen.
ð The PC system time is accepted.
6.6.2 Setting the shut-down period
During the shut-down period, the weekly timer is blocked; during this period, no
switching commands are performed.
ü Entering the shut-down period:
a) Click on the [From:]...[To:] and enter the beginning and the end of the shut-
down period.
ð A calendar is displayed.
b) Select the corresponding date by clicking on the relevant week day.
ð The date is automatically entered.
c) Enable the [Shut down period active] checkbox.
ð The function [Shut down period] is active.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 144/695
