4|Transport, installation, storage, disposal

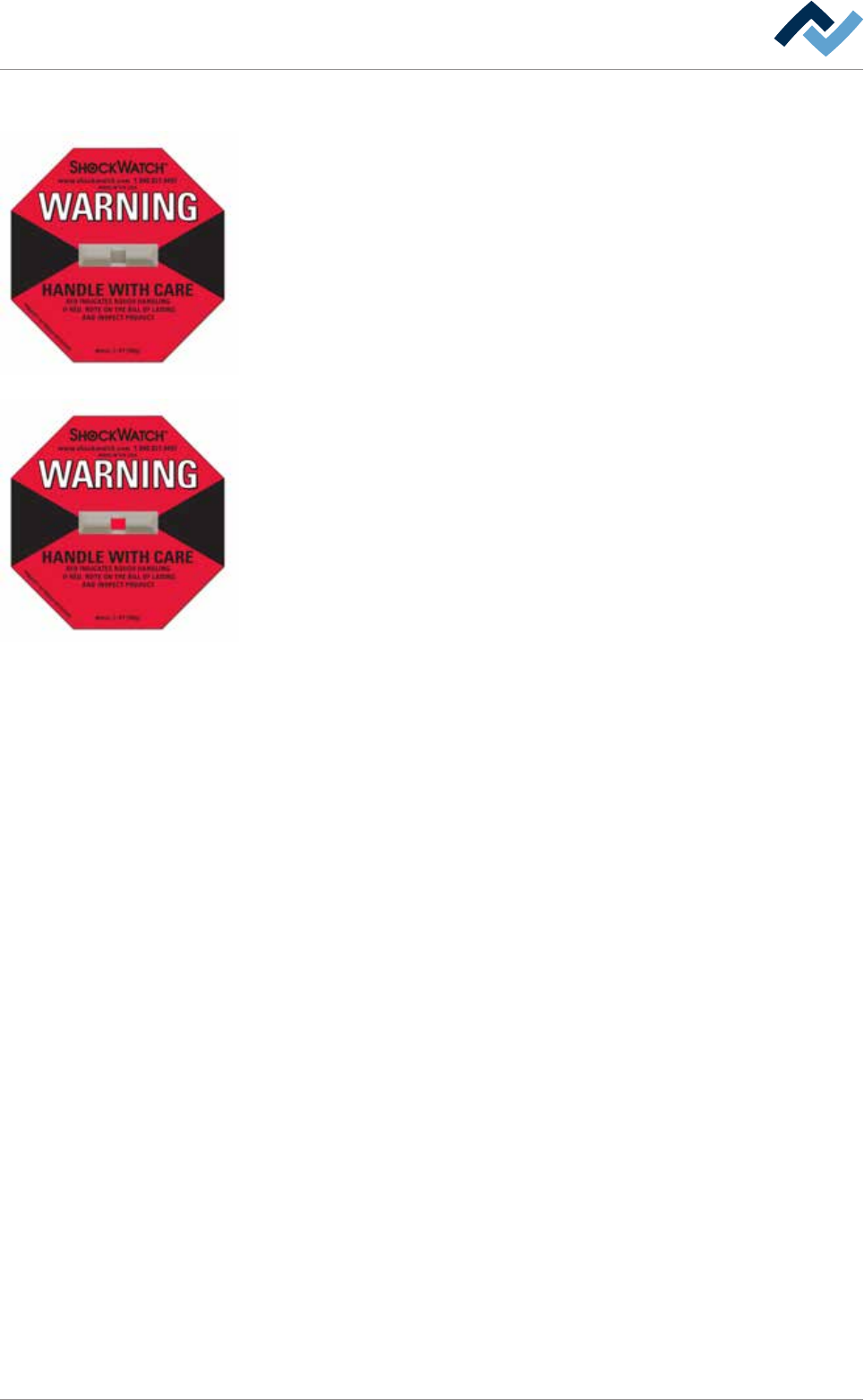

4.5.1 Packaging with Shock Watch
Fig.5: Indicator not coloured
ü Checking packaging provided with Shock Watch impact indicator:
a) Check all available Shock Watch stickers.
b) A not coloured indicator means: The machine was transported properly.
c) A red coloured indicator means: A shock impact has occurred during the ma-
chine transport.
d) Make a note of the red coloured indicator in the consignment bill!
Fig.6: Red coloured indicator
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 66/695
4|Transport, installation, storage, disposal
4.5.2 Packaging with Tilt Watch
Fig.7: Indicator not coloured
ü Checking packaging provided with Tilt Watch tilt indicator:
a) Check all available Tilt Watch stickers.
b) A not coloured indicator means: The machine was transported properly.
c) A red coloured indicator means: The machine was tilted excessively during
transport.
d) Make a note of the red coloured indicator in the consignment bill!
Fig.8: Coloured indicator
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 67/695
4|Transport, installation, storage, disposal
4.5.3 Machine packaged in a crate
On this regard, please observe the following picture:
1
1
2
1
1 Steel band 2 Cover
ü Unpacking the machine:
a) Remove the steel bands.
b) Remove the cover
c) Remove the side panels.
d) Remove the protective packaging (plastic film).
