9|Spare and wear parts Flexible rail 1, (single track), view [X] 1 12 13 3 2 10 5 4 11 6 9 7 8 Fig.276: EM113-339-20-00Ae Pos Description Item number A B 1 Pressure spring VD-177 143511 x 2 Chain guide, fixed 143645 x…
9|Spare and wear parts
Flexible rail 1, (single track), view [X]
734 1 2
6
5
Fig.275: EM113-339-20-00Ad
Pos Description Item number A B
1 Joint clip 170367 x
2 Straight screwing M5, stainless stell 97965 x
3 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant 85950 x
4 Swivel head M6 170366 x
5 Conveyor chain, 3 mm pins, bulk stock 208821 x
6 Chain joint 3 mm 208824 x
7 Groove nut STM5 6ZIS049 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 553/695
9|Spare and wear parts

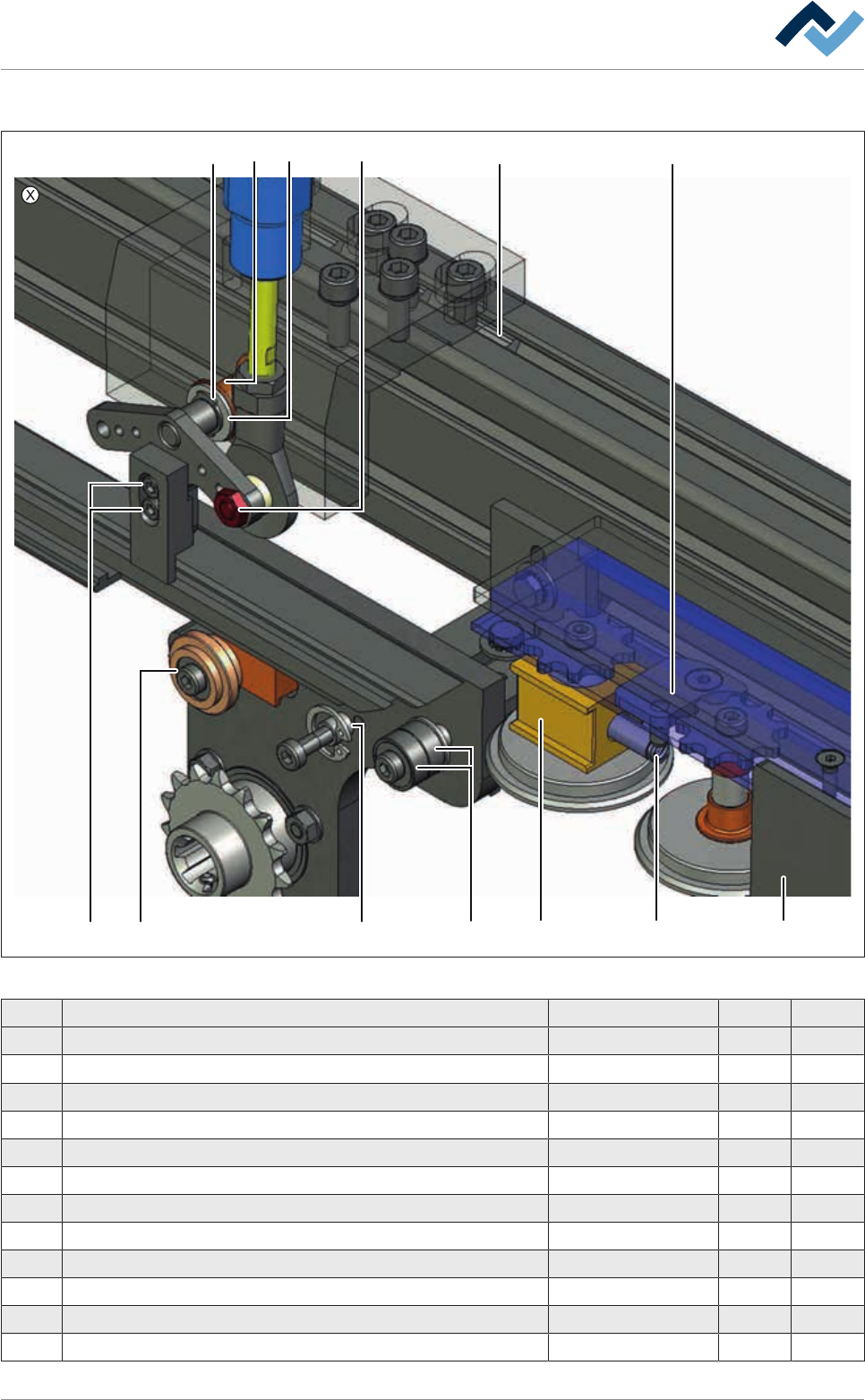

Flexible rail 1, (single track), view [X]
1 12133
2105 4 116
9 7 8
Fig.276: EM113-339-20-00Ae
Pos Description Item number A B
1 Pressure spring VD-177 143511 x
2 Chain guide, fixed 143645 x
3 Screw M3 6M03X008Z0912 x
4 Washer 8/14X1,0 DIN988 6SA08X1.00 x
5 Circlip A 8x0,8mm, DIN 471 6SER-A080471 x
6 Collar bush 143513 x
7 Distance bush 108981 x
8 Bearing 6LA624Z x
9 Deflection disk 143668 x
10 Groove nut STM5 6ZIS049 x
11 Pan head screw M5 170207 x
12 Chain guide, fixed, adjustable 143673 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 554/695
9|Spare and wear parts
Pos Description Item number A B
13 Sliding piece, redirection 143640 x
