9|Spare and wear parts
Fixed rail 2, (dual track), view [Y]
12
1 321
Fig.267: EM113-339-30-00d
Pos Designation Item number A B
1 Sliding piece 143664 x
2 Fit screw M4 143665 x
3 Fastening angle (roller-chain conveyor) 170777 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 545/695

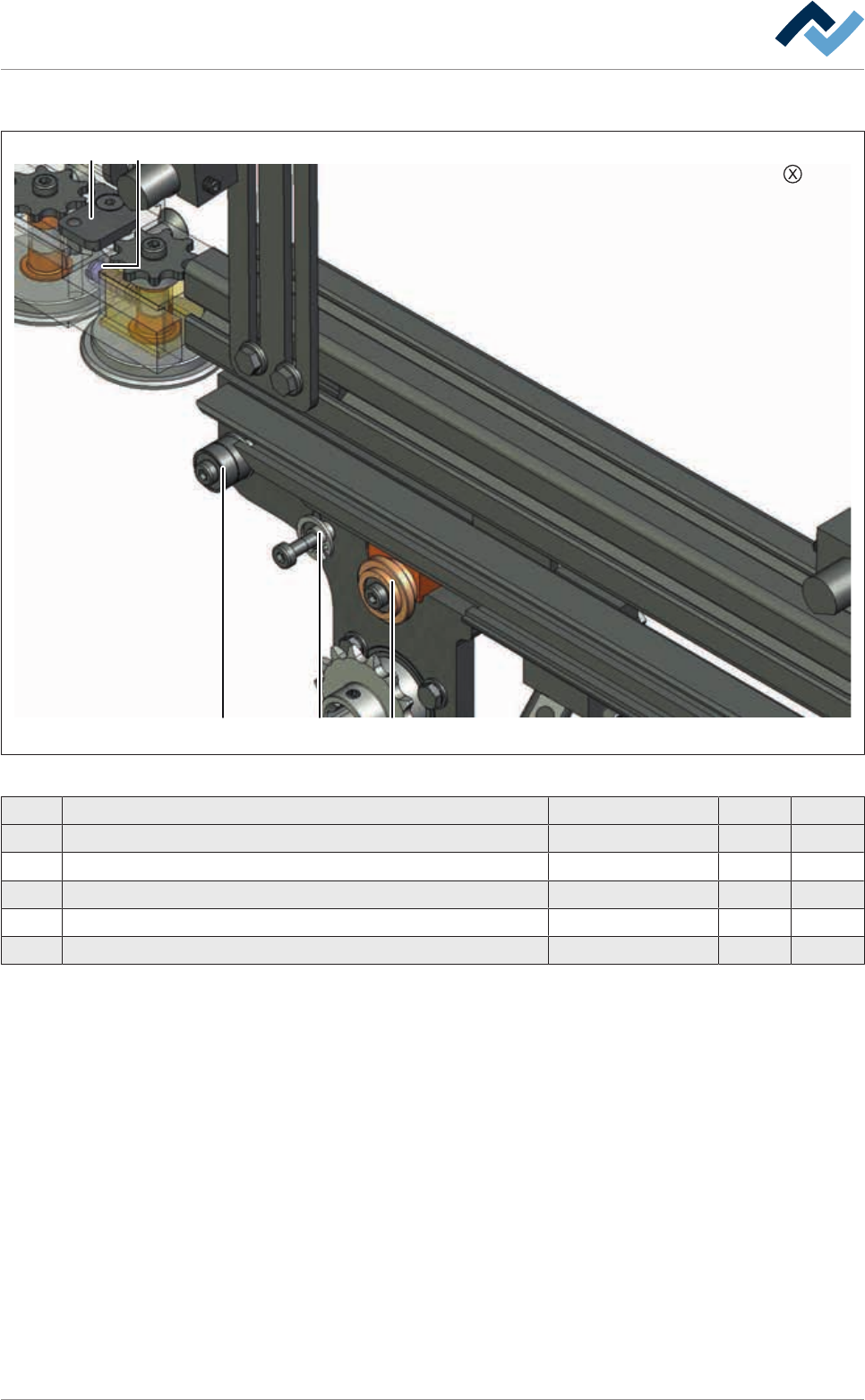

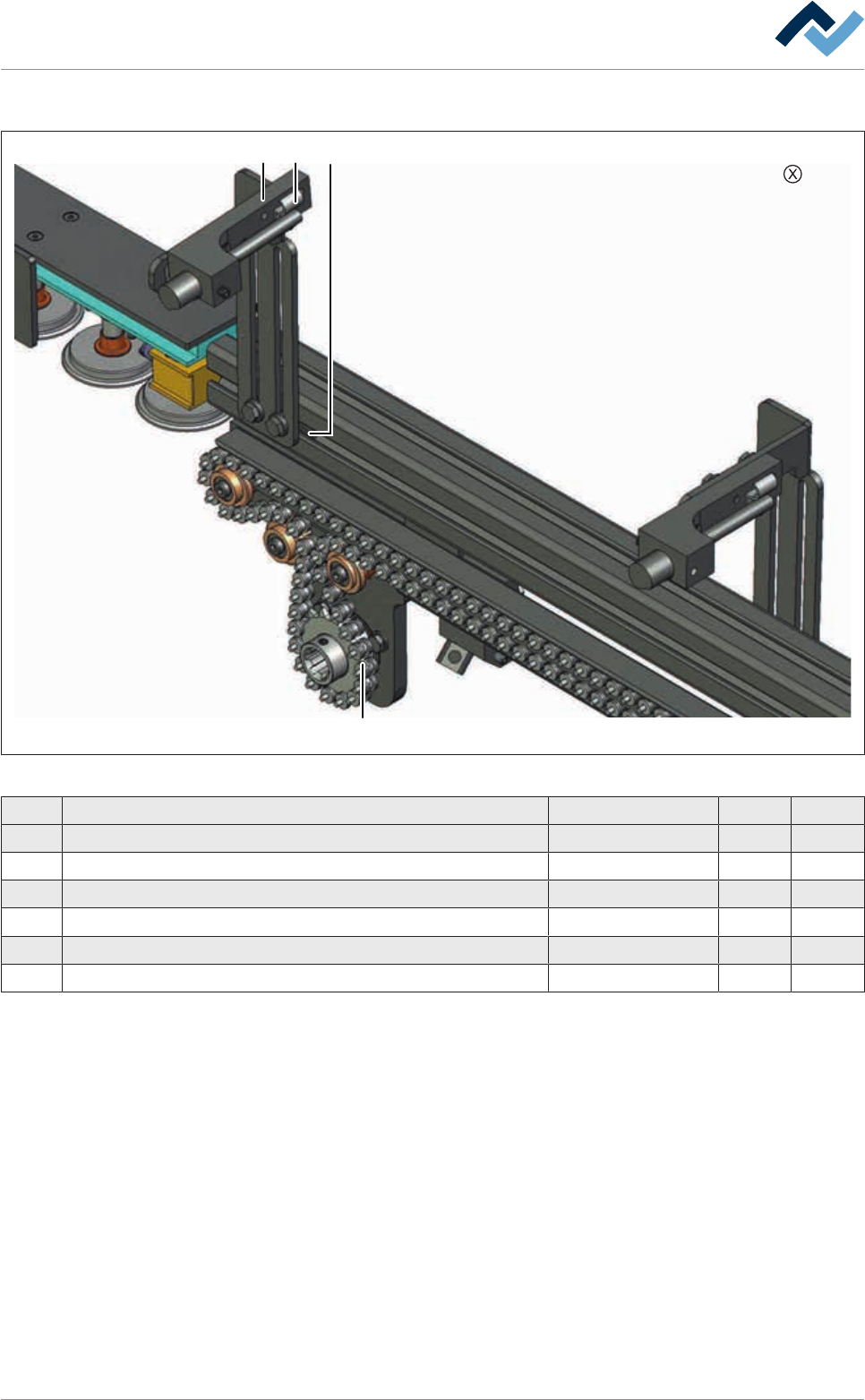

9|Spare and wear parts
Fixed rail 2, (dual track), view [X]
14
2/3
5
Fig.268: EM113-339-30-00e
Pos Designation Item number A B
1 Pipe clamp DIN 72571 * 6ZT00211 x
2 Conveyor chain, 3 mm pins, bulk stock 208821 x
3 Chain joint 3 mm 208824 x
4 Support, Senor LK6, top * 170766 x
5 Groove nut, flute width 6 M4 26315 x
* Only for option [Dual track] or [Second stopper]
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 546/695
9|Spare and wear parts
Fixed rail 2, (dual track), view [X]
12
34 5
Fig.269: EM113-339-30-00f
Pos Designation Item number A B
1 Pressure spring VD-177 143511 x
2 Chain guide, fixed 143645 x
3 Distance bush 108981 x
4 Bearing 6LA624ZZ x
5 Deflection disk 143668 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 547/695
