4|Transport, installation, storage, disposal 4.9.2 Footprint area conditions ü The system can only function properly if the following requirements regarding footprint and the immediate surroundings have been fulfilled:…
4|Transport, installation, storage, disposal
4.9 Setting up the machine
4.9.1 Clearance space around the machine
With open doors and hoods, a 1 metre wide passageway is required in front of and
behind the machine. On this regard, please observe the following picture:

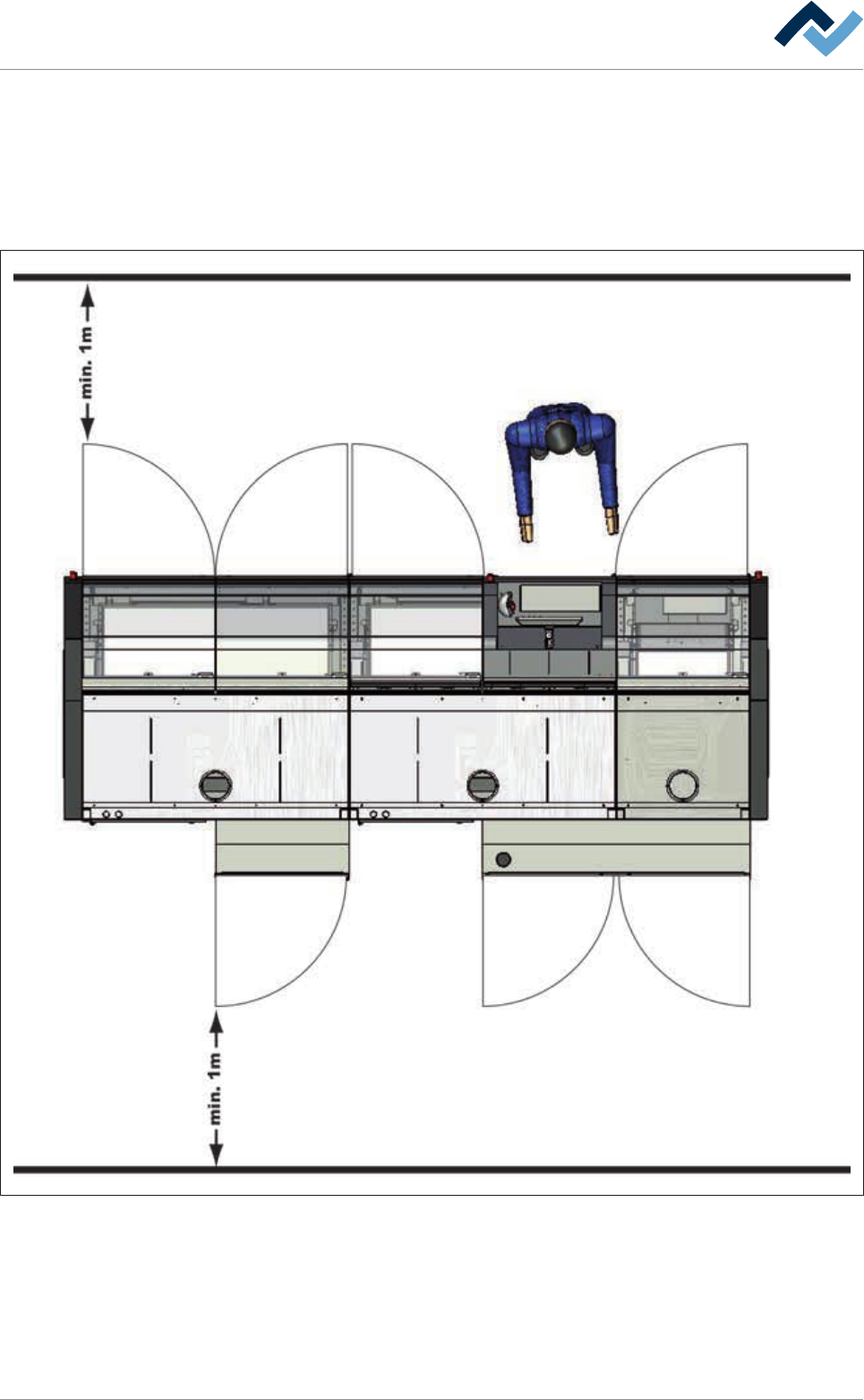

Fig.11: Clearance space around the machine
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 73/695
4|Transport, installation, storage, disposal
4.9.2 Footprint area conditions
ü The system can only function properly if the following requirements regarding
footprint and the immediate surroundings have been fulfilled:
a) The footprint must be free of vibration.
b) Avoid the influence of electromagnetic fields!
c) Avoid localized heating or cooling on one side of the machine (e.g. through ra-
diators or drafts).
The footprint must have the following characteristics and be designed for the fol-
lowing loads (base machine):
Weight approx. (kg) 1100
Levelling feet with outfeed support (pcs) 6
Point load per adjusting foot (N/cm
2
) 150
Point load at constant load referred to
the base of the machine (N/cm
2
)
0.34
Maximum unevenness of the footprint
(mm/m
2
)
5
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 74/695
4|Transport, installation, storage, disposal
4.9.3 Setting the machine height
Preadjusting the machine height
ü The machine height can be varied by about 70 mm:
a) Remove the cover panels in the area of the adjustment feet or open the casing
doors.
b) Lift the machine with a forklift and secure the load against falling.
c) Preadjust all the adjustment feet as described below. Do not stand or walk un-
der suspended loads.
Fig.12: Lift the machine
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 75/695
