9|Spare and wear parts
9.8 Selective soldering modules and options

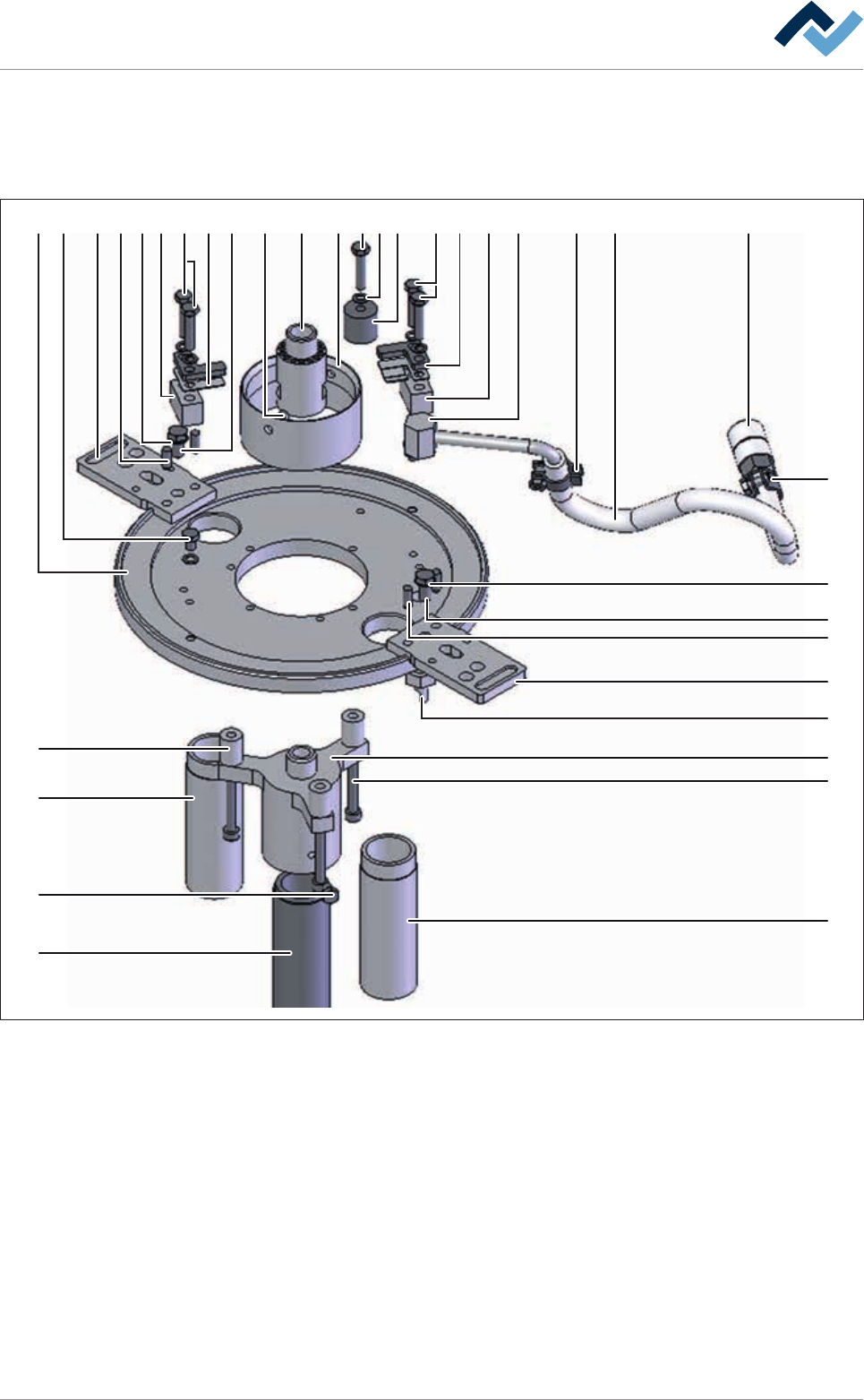

9.8.1 Solder pot cover, centric
1 613 84
2
4
3
13
9
14
16
21
15
17
18
21
227 2624 253 22 2059 23 262610 12 11 19
5
Fig.322: EM1500-127-00B
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 603/695
9|Spare and wear parts
Pos Description Item number A B
1 Solder level measuring point, upper part 154175 x
2 Solder level measuring point, bottom part 154185 x
3 SCHNORR M5 locking ring 111799 x
4 Screw M5x10 6M05X010E0933 x
5 Cylindrical pin, Ø 4 x 10 mm 143527 x
6 Tube, slicone, Ø 12 mm, bulk stock 214493 x
7 SCHNORR M4 locking ring 112055 x
8 Coupling, 6 mm 182167 x
9 Flap for clamp 188212 x
10 Cover (soldering pot) 205899 x
11 Base upper part, standard 177110 x
12 Hexagonal screw M4 V4A 150470 x
13 Hose clamp SM9 - NW12 248124 x
14 Base riser, bottom part 219986 x
15 Tube (pot) 213516 x
16 Screw M4x30 119223 x
17 Screw M4x6 150471 x
18 Distance bush 222728 x
19 Inner ring 222722 x
20 Set screw 6M05X005E0914 x
21 Pipe, solder feeding 234258 x
22 Base block for locking 243136 x
23 Spring plate for locking 243084 x
24 Distance bush 243083 x
25 Stopper 243079 x
26 Screw M4x20 6M04X020E0933 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 604/695
9|Spare and wear parts

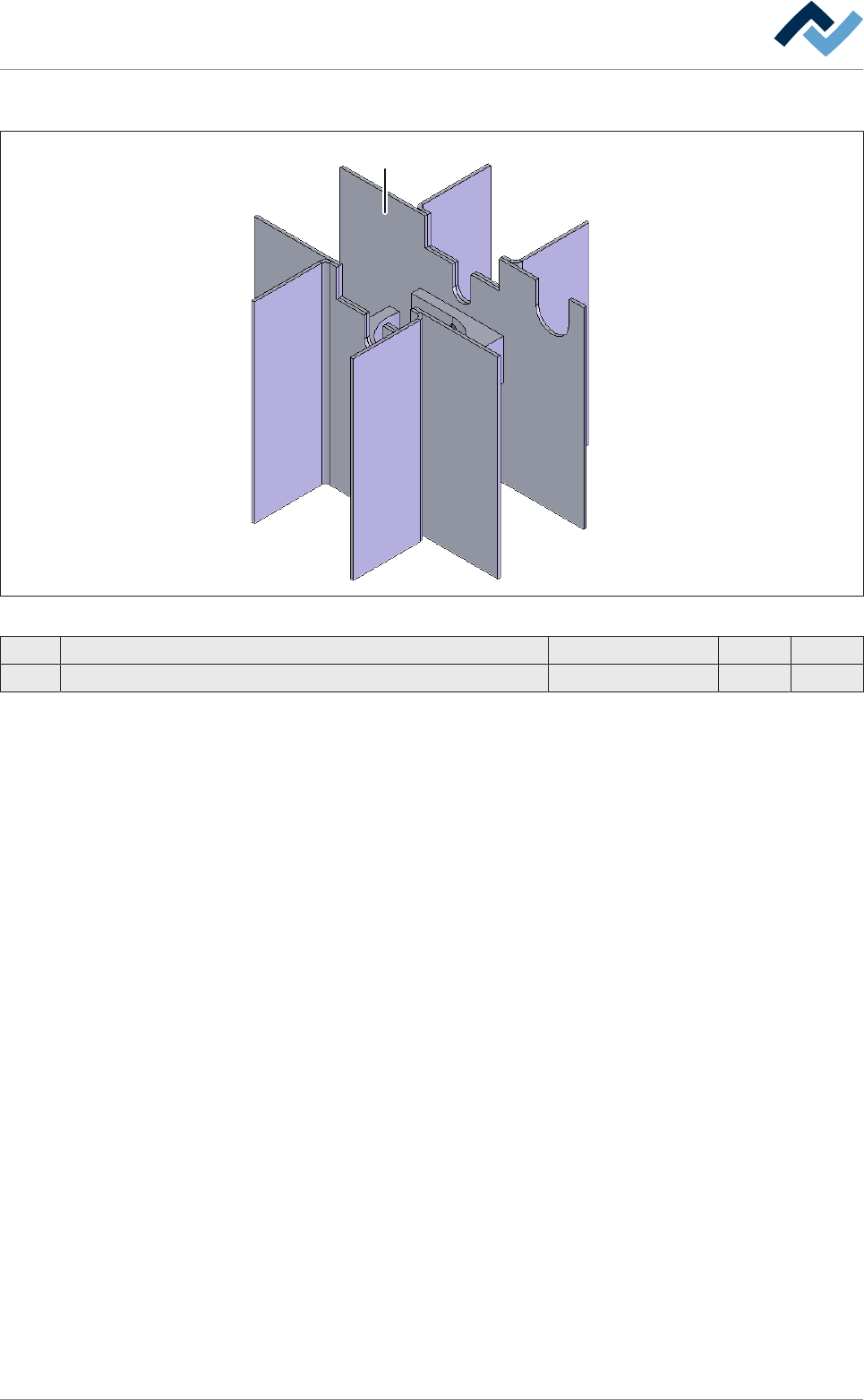

Anti surge baffle plates
1
Fig.323: Anti surge baffle plates
Pos Description Item number A B
1 Antisurge baffle 265947 x
