9|Spare and wear parts Flexible rail 1, (single track), view [Y] 1 2 5 3 3 4 3 2 1 Fig.274: EM113-339-20-00Ac Pos Description Item number A B 1 Jackscrew M12X1 170791 x 2 Groove nut STM5 6ZIS049 x 3 Sliding piece 1436…
9|Spare and wear parts

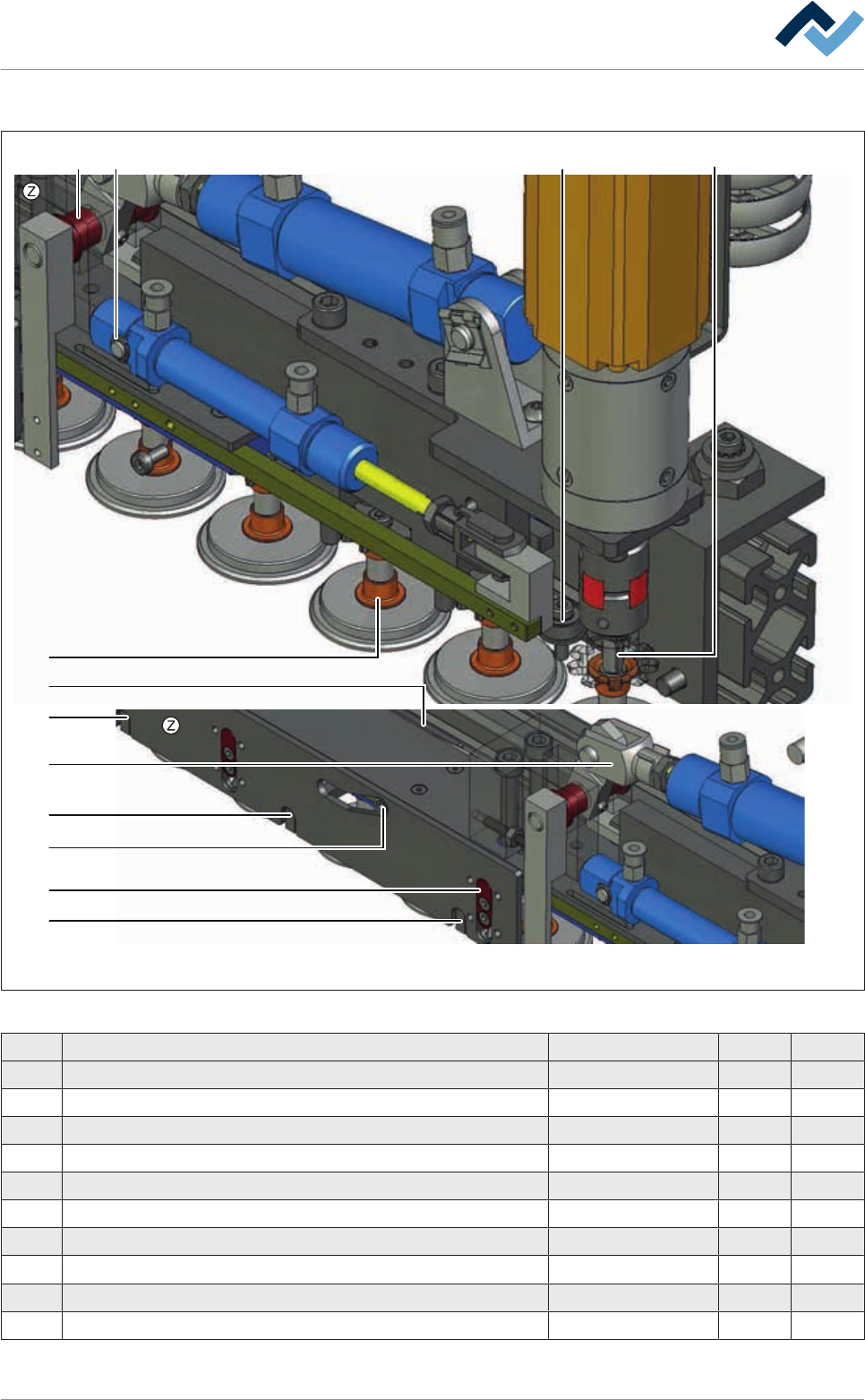

Flexible rail 1, (single track), view [Z]
214
7
5
8
8
8
9
10
3
6
Fig.273: EM113-339-20-00Ab
Pos Description Item number A B
1 Circlip A 8x0,8mm, DIN 471 6SER-A080471 x
2 Bearing 6LA624Z x
3 Collar bush 143513 x
4 Flange bushing BP 25 C 08 x 12 x 12 6BUFL08X12X12 x
5 Sliding piece 143664 x
6 Fit screw M4 143665 x
7 Key 143677 x
8 Tappet 143692 x
9 Fork head 6BO306 x
10 Feather key DIN 6885 2x2x10 6PSF2X2X10A x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 551/695
9|Spare and wear parts

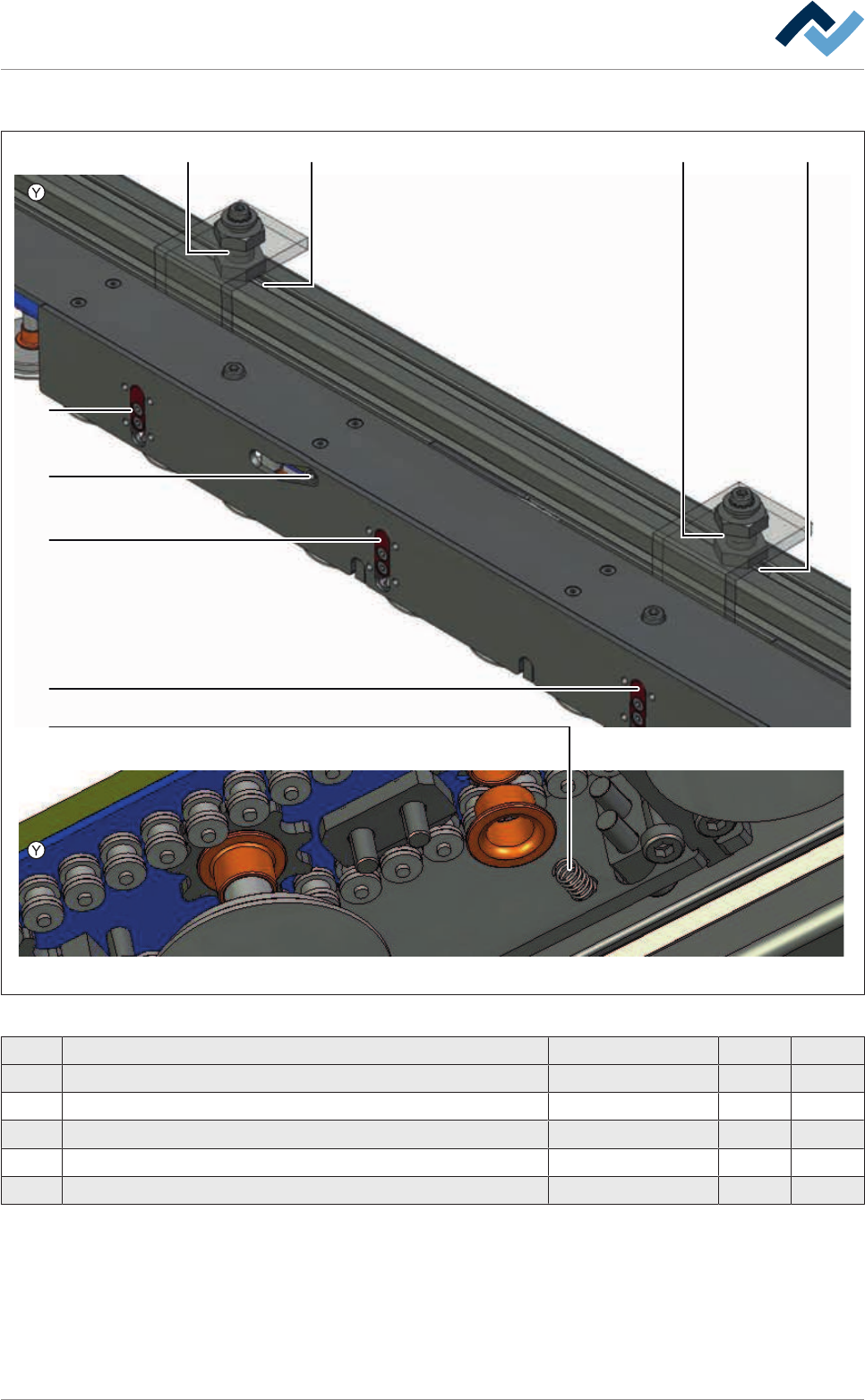

Flexible rail 1, (single track), view [Y]
1 2
5
3
3
4
3
21
Fig.274: EM113-339-20-00Ac
Pos Description Item number A B
1 Jackscrew M12X1 170791 x
2 Groove nut STM5 6ZIS049 x
3 Sliding piece 143664 x
4 Fit screw M4 143665 x
5 Spring, stainless steel 6FED078-VD x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 552/695
9|Spare and wear parts

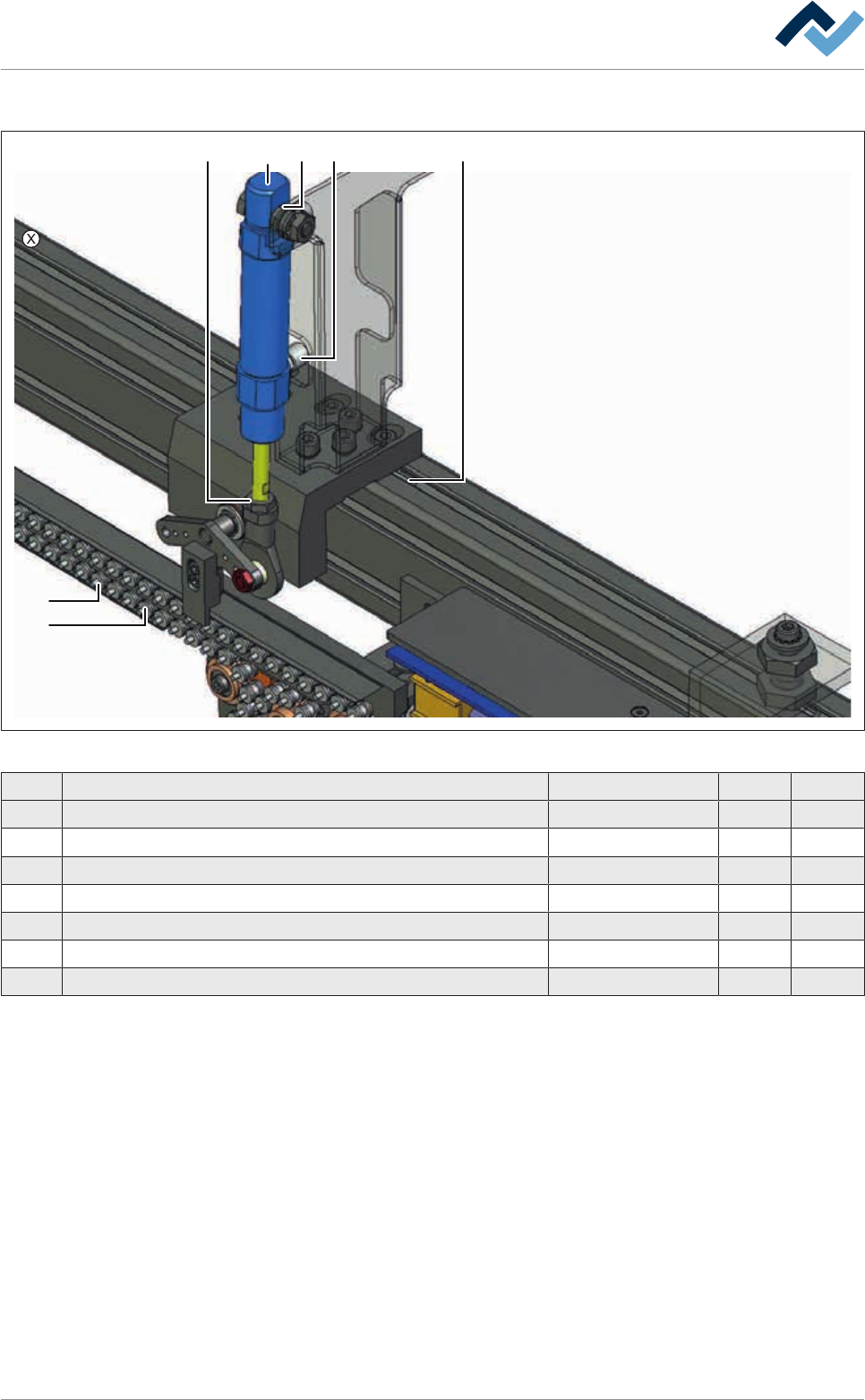

Flexible rail 1, (single track), view [X]
