9|Spare and wear parts
9.3.6 Flux material stockage
1
Fig.196: EM113-43-00
Pos Description Item number A B
1 Filter with bolting 203147 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 468/695
9|Spare and wear parts
9.3.7 Spray fluxer fiducial recognition
12
45
3
Fig.197: EM113-47-00
Pos Designation Item number A B
1 Cylinder, Ø 10, stroke = 75 mm 222155 x
2 LED festoon lamp , 12 V AC/DC 179756 x
3 Cover glass, transparent 222148 x
4 Fan 222111 x
5 Filter 222223 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 469/695
9|Spare and wear parts
Spray fluxer fiducial recognition
123 4

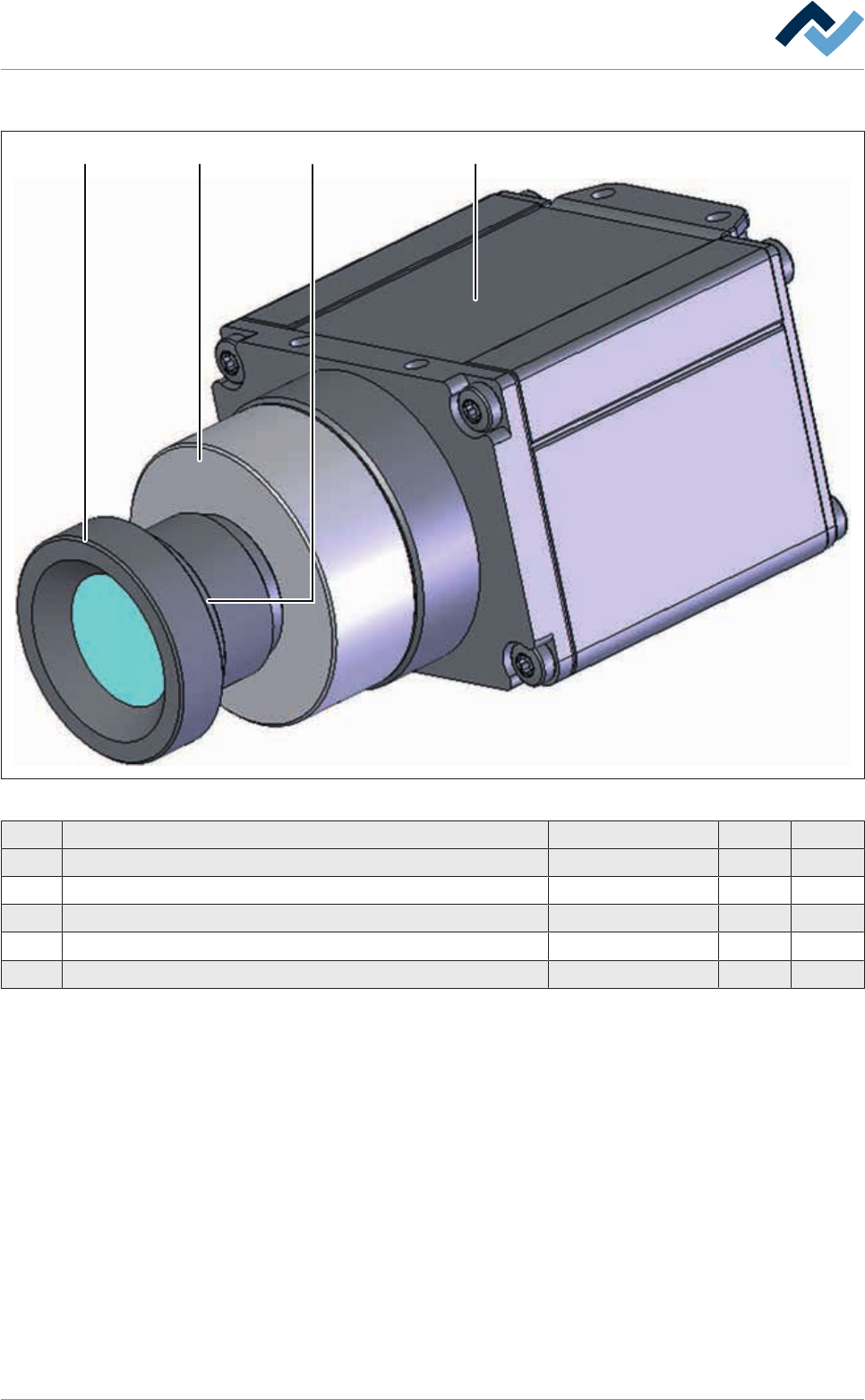

Fig.198: EM113-85-00
Pos Designation Item number A B
1 Camera, 1,3 Mega pixels, SXGA 1/2", CMOS 182569 x
2 Extension ring, C-mount, 10 mm 182573 x
3 Lens, Lensagon 182571 x
4 Counter nut, Lensagon, M12 x 0,5 182574 x
5 Adaptor, C-mount / S-mount, Lensagon, wihout fig. 182572 x
