9|Spare and wear parts
Z-axis double pot (dual track)
1
2
3
Fig.210: EM113-29-01-00a
Pos Designation Item number A B
1 Tooth belt 425-5M-15 6ZR0425-5M-15 x
2 Tensioning kit 112207 x
3 Grease nipple 89042 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 484/695
9|Spare and wear parts
9.4.5 Z-axis excenter solder pot (fix, single track)
1
2
4
2
21
1
3
Fig.211: EM113-21-01-00
Pos Description Item number A B
1 Tooth belt 425-5M-15 6ZR0425-5M-15 x
2 Tensioning kit 112207 x
3 Servo drive with resolver 23567 x
4 Lifting spindle, complete * 209659 x
5 Ball nut * 184736 x
* Cannot be shipped separately
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 485/695
9|Spare and wear parts

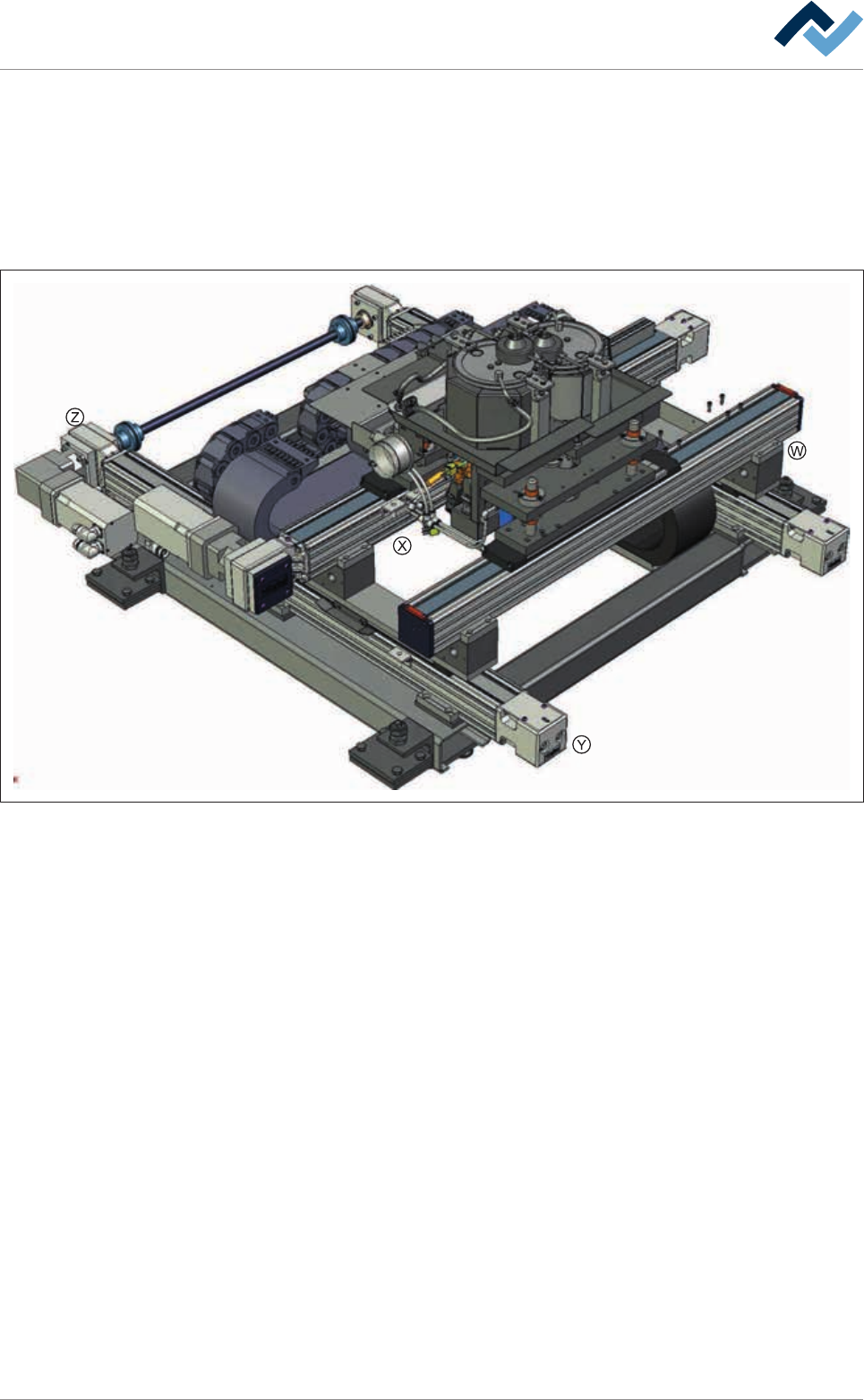

9.4.6 Positioning system for double solder pots with eccentric solder pot lids
(80mm, fixed, double stroke, single track)
Overview
Fig.212: EM-113-22-00
