8|Service and maintenance
8.8.4 Lubricating the Z-axis of the selective soldering module
DANGER
Severe or fatal injury from hot machine! Hot pot containing molten metal!
ü For any work being carried out, take the following safety precautions:
a) Touching the pot during operation is forbidden!
b) Allow the pot to cool down to room temperature before carrying out service and
cleaning work! On this regard, observe the solder temperature at the machine
terminal!
c) During the solder heating and cooling, molten metal can splash out of the pot!
The machine protective plates must therefore remain closed during heating and
cooling!
d) Open protective plates only when the solder has solidified completely.
e) Service and cleaning work on hot pots must always be carried out by trained and
qualified personnel!
2 2 2 21

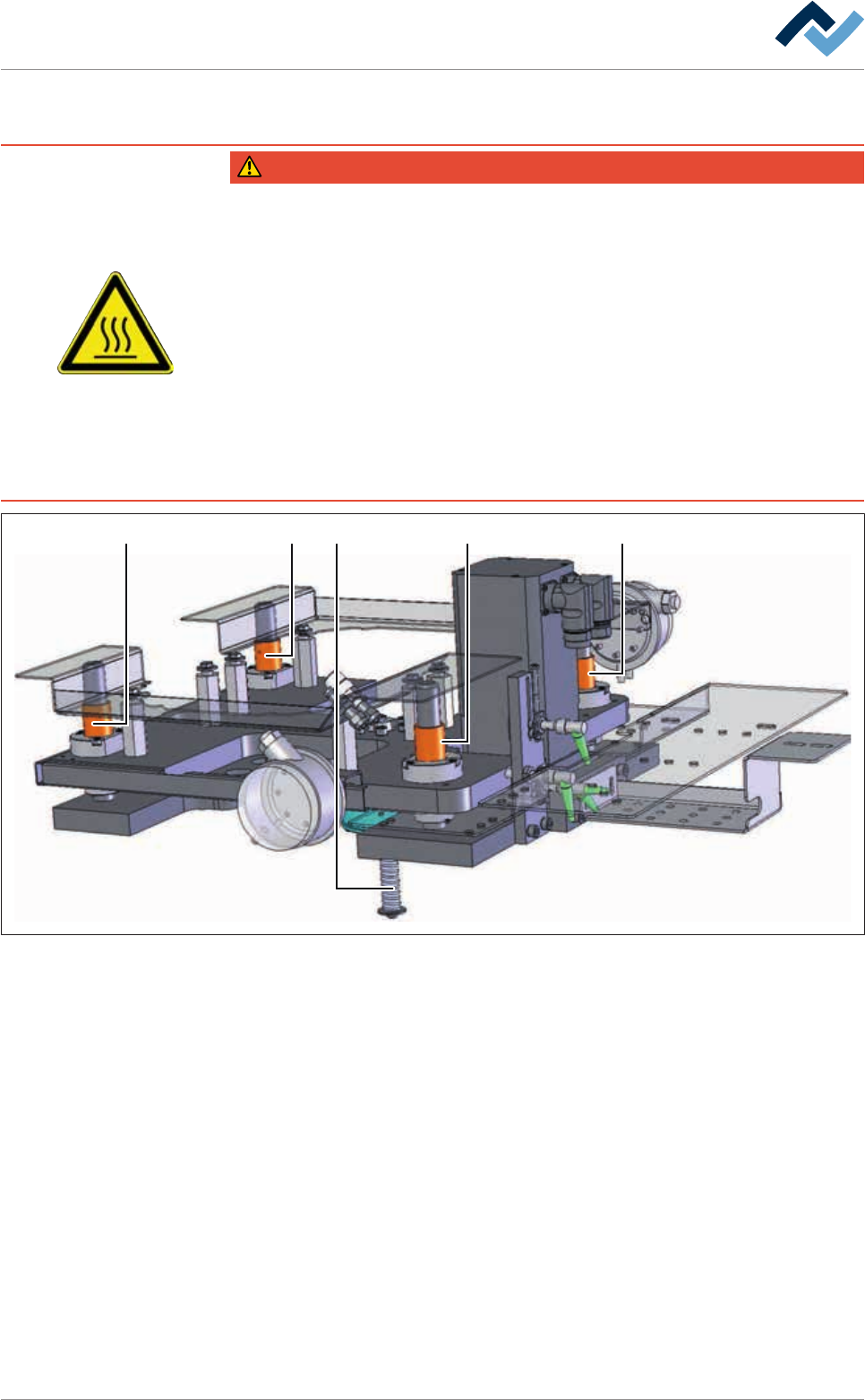

Fig.121: Z-axis lubrication
ü Lubricating the Z-axis:
a) Let the machine cool down.
b) Open hoods and doors in the area of the axis systems.
c) Remove and clean any existing blankets.
d) Disconnect conveyors, fluxer and preheat units.
e) Set the machine to the [maintenance mode] operating mode.
f) Open the [Soldering module] input dialog.
g) Reference the soldering module. Then move the soldering module to the
[Maintenance position] position.
h) Clean the jack screw (1) with a lint-free cloth.
i) With the grease brush, evenly dispense a 1 cm long strand of grease on the jack
screw.
j) Close the front casing door.
k) Acknowledge any available error messages.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 355/695
8|Service and maintenance
l) Reference the soldering module.
m)Move the soldering module in [Step mode] three times to the maximum posi-
tion upwards/downwards.
ð The first lubrication process has now been completed.
n) Repeat the process twice. Here, the action step "Clean jack screw" can no
longer be performed.
o) Clean and lubricate the guide columns (2).
ð The process has now been completed.
With regard to this, please read the Lubricants used [
}299] Chapter.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 356/695
8|Service and maintenance
8.8.5 Lubricating the DIP soldering unit Z-axis
2
2
1
1
1
3
1

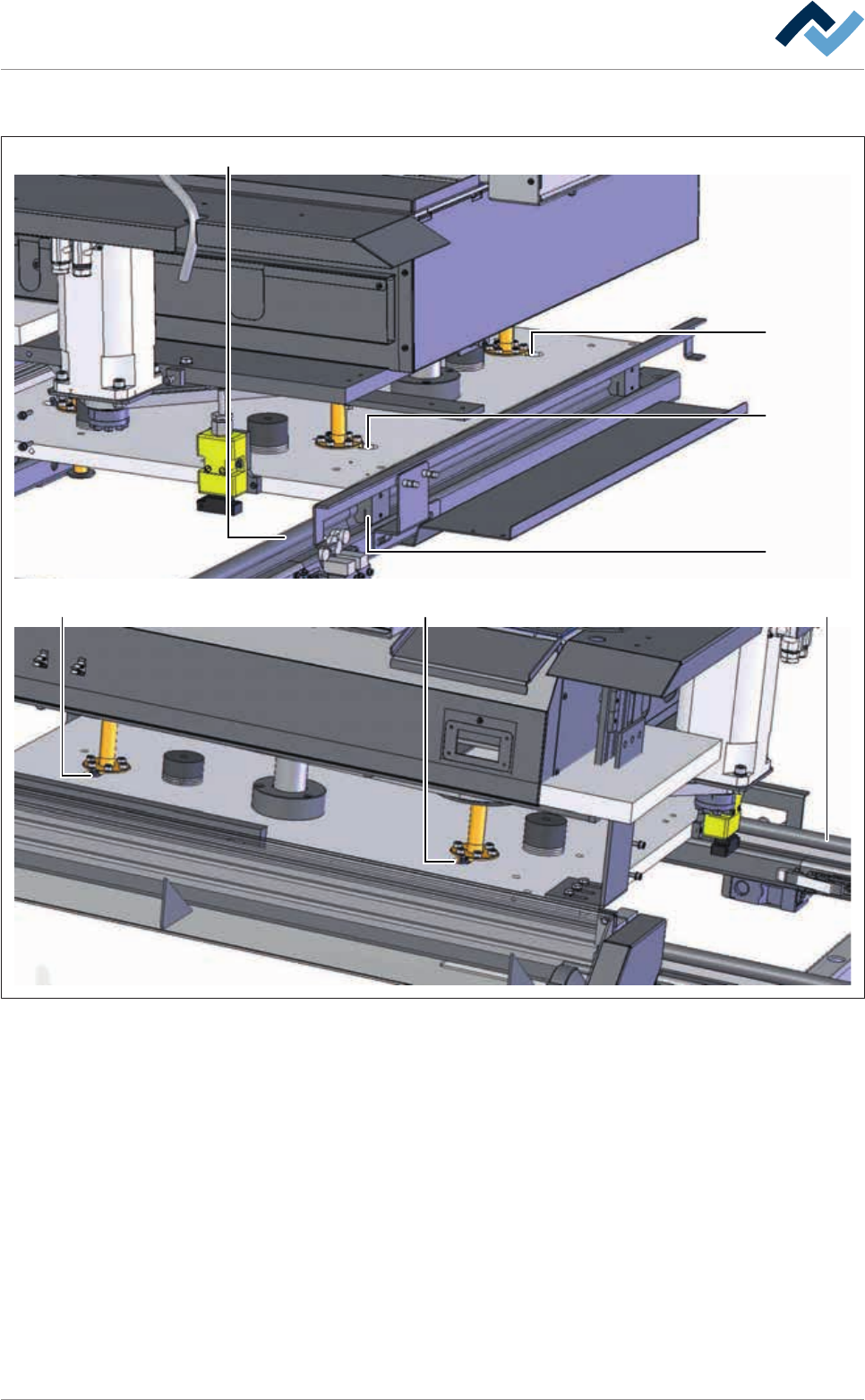

Fig.122: Z-axis DIP soldering unit
ü To lubricate the Z-axis:
a) Let the machine cool down.
b) Switch off the conveyors, fluxers and preheaters
c) Set the machine to the [maintenance mode]
d) To open the [Soldering module] input dialog:
e) Reference the soldering unit. Subsequently, move the soldering unit to the up-
per position.
f) Open the panel door in the soldering unit area.
g) With a grease injector, press about 4.5 grams of grease into each spindle nut
(1).
ð All four spindle nuts must always be lubricated!
h) Close the front panel door.
