9|Spare and wear parts 9.3.6 Flux material stockage 1 Fig.196: EM113-43-00 Pos Description Item number A B 1 Filter with bolting 203147 x Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 468/695
9|Spare and wear parts
9.3.5 Spray monitoring (optional)
Spray monitoring
3
3
3
3
2
4
1
Fig.195: EM122-45-00_EM113-45-00
Pos Description Item number A B
1 Laser sensor 23643 x
2 Spring steel clamp 6FEDKL-G-D6-Z x
3 Pressure piece M8 114126 x
4 Evaporator 231417 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 467/695
9|Spare and wear parts

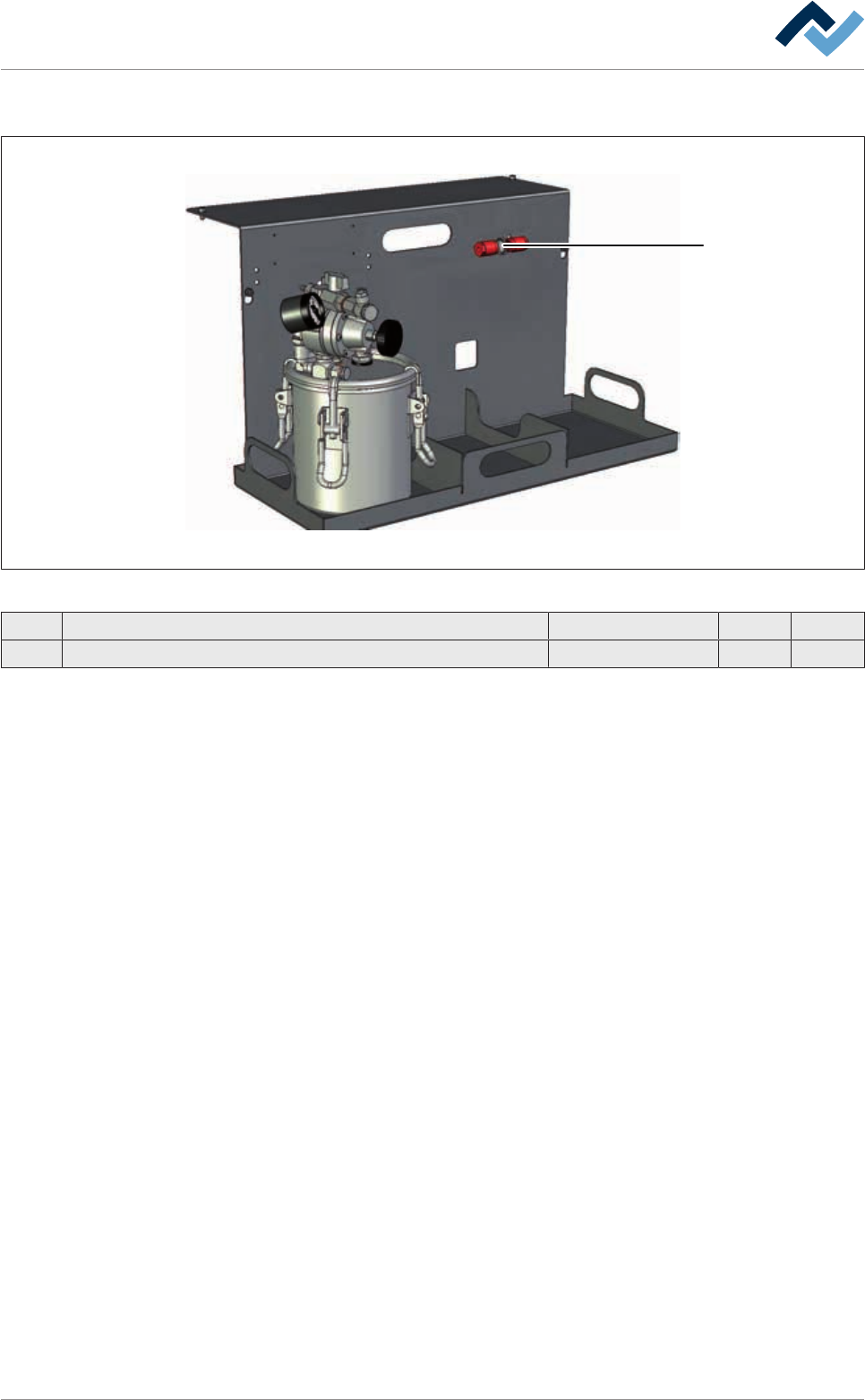

9.3.6 Flux material stockage
1
Fig.196: EM113-43-00
Pos Description Item number A B
1 Filter with bolting 203147 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 468/695
9|Spare and wear parts

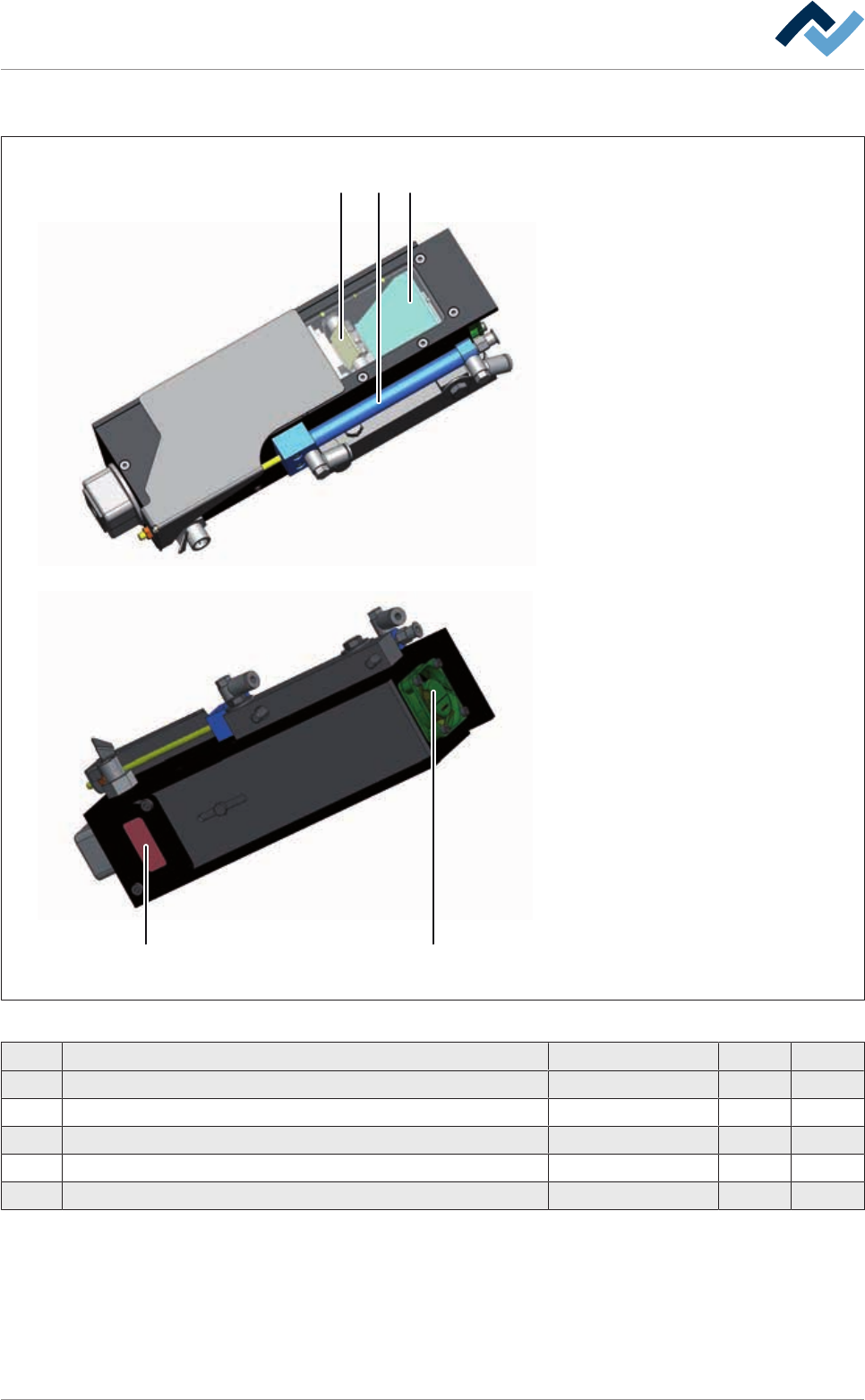

9.3.7 Spray fluxer fiducial recognition
12
45
3
Fig.197: EM113-47-00
Pos Designation Item number A B
1 Cylinder, Ø 10, stroke = 75 mm 222155 x
2 LED festoon lamp , 12 V AC/DC 179756 x
3 Cover glass, transparent 222148 x
4 Fan 222111 x
5 Filter 222223 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 469/695
