4|Transport, installation, storage, disposal 4.4 Unloading the machine 4.4.1 Unloading with a forklift The machine can be delivered in two packaging variants – on a pallet – in a crate. The unloading process is identic…
4|Transport, installation, storage, disposal
DANGER
Severe or fatal injuries from flammable substances! Risk of fire!
a) Service and maintenance work may only be performed by qualified staff which
has been trained accordingly.
ð When transporting the machine:
b) Flux-reservoir must be completely emptied before transport.
CAUTION
Danger of being crushed by movement of the axis system during transportation of
the machine!
ü If the machine needs to be transported, secure the axis systems against moving.
a) Inserting transport locks on the axis system
CAUTION
Material damage is possible!
a) Avoid abruptly moving, bumping or putting down the machine!
b) Protect the machine from weather conditions (moisture, humidity, sea air, fog)! If
required, provide the machine with dehumidifying agent and air tight packaging.
4.3 Transporting the machine with built-in DIP soldering unit
CAUTION
Material damage during transport of the machine with filled DIP soldering unit!
ü If the machine is to be transported:
a) Have the solder be removed from the DIP soldering unit by properly trained staff!
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 61/695
4|Transport, installation, storage, disposal
4.4 Unloading the machine

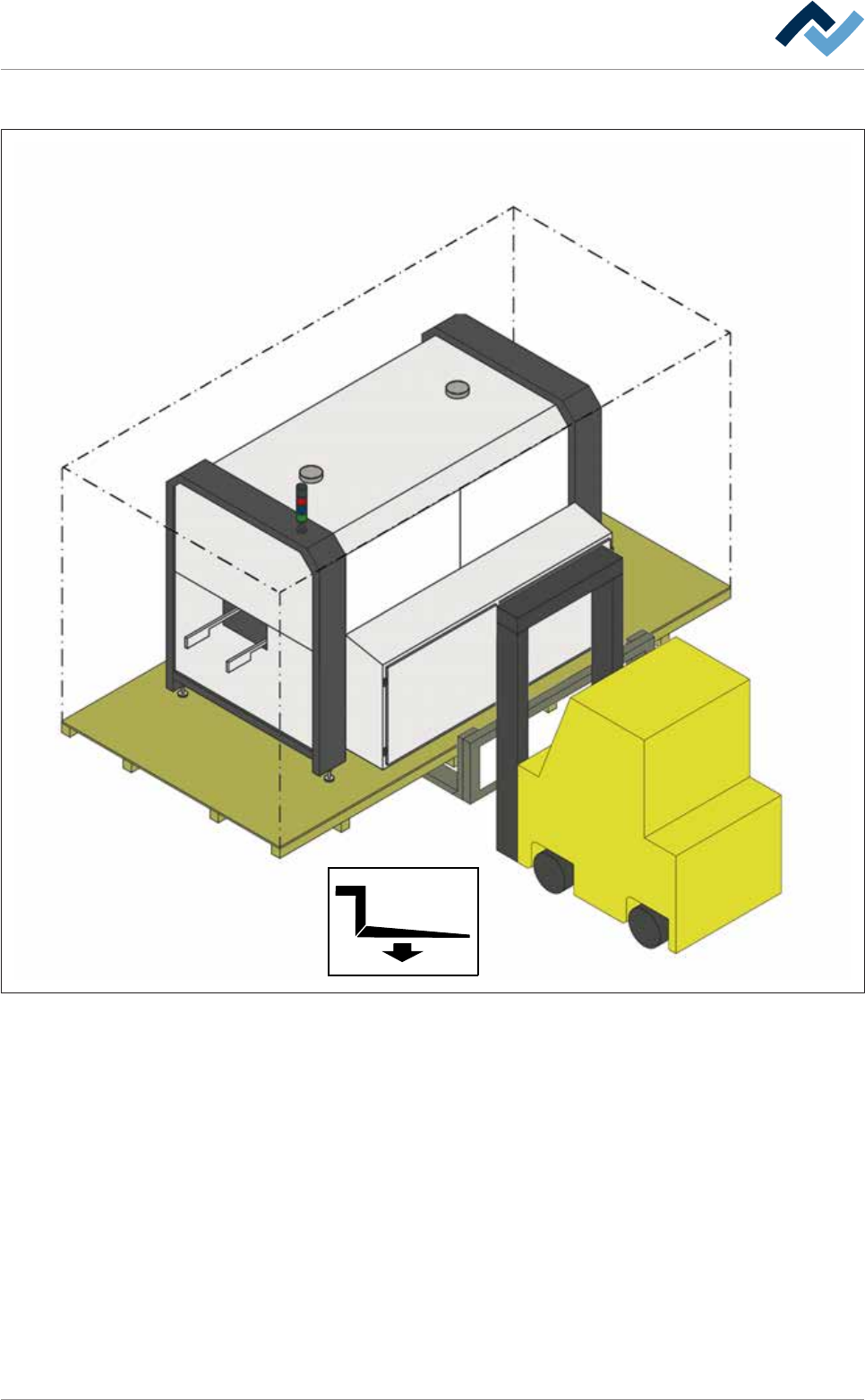

4.4.1 Unloading with a forklift
The machine can be delivered in two packaging variants
– on a pallet
– in a crate.
The unloading process is identical for both variants. To learn the weight of the ma-
chine, please refer to chapter [Technical Data].
DANGER
Severe or fatal injury due to oveturning machine!
a) The forklift must meet the minimum requirements!
b) Lift the machine always in the center of gravity!
Min. 1,6m
Min. 1,4m
Transport the machine safely
ü Safe machine transport:
a) always lift the load in the middle of the centre of gravity.
ð The designated lifting points are provided with red markings.
b) Always use the marked lifting points to raise the machine!
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 62/695
4|Transport, installation, storage, disposal
c) For this purpose, please consider the next figure!
Fig.3: These markings indicate the lifting points
