9|Spare and wear parts

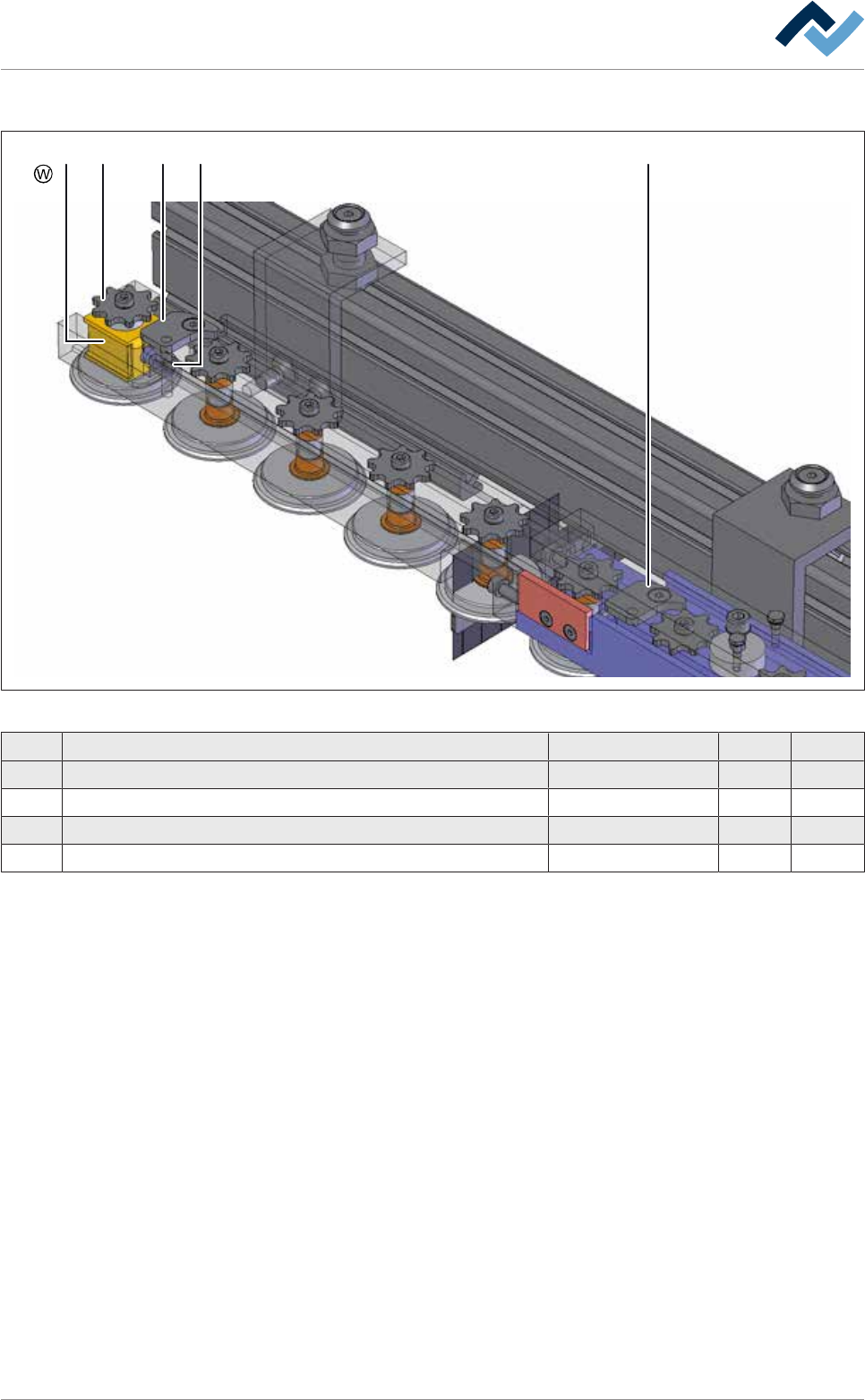

Flexible rail, DIP XL induction, view [W]
3 44 12
Fig.310: EM146-339-20-00Ae
Pos Description Item number A B
1 Pressure spring VD-177 143511 x
2 Sliding piece, redirection 143640 x
3 Chain pinion 05-Z9 143638 x
4 Chain guide, fixed, adjustable 143673 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 591/695
9|Spare and wear parts
9.6 Drives
9.6.1 Width adjustment drive
1
2
4
3
Fig.311: EM113-234-01-00
Pos Designation Item number A B
1 Tooth belt AT5-16-225 156387 x
2 Motor, Dunker, BG65x25SI/PLG52 S 400:1 160938 x
3 Synchronized pulley 156277 x
4 Synchronized pulley 169941 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 592/695
9|Spare and wear parts
9.6.2 Pin chain (single track)
1
2
4
3
Fig.312: EM113-234-03-00
Pos Designation Item number A B
1 Compensation coupling LA Alu Ø 8 L 38,1 228631 x
2 Motor, Dunker, BG44x25SI/PLG S 32:1 117869 x
3 Spline shaft (single track) 171168 x
4 Groove nut STM5 6ZIS049 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 593/695
