9|Spare and wear parts
View [W]
1 42 1 2
3

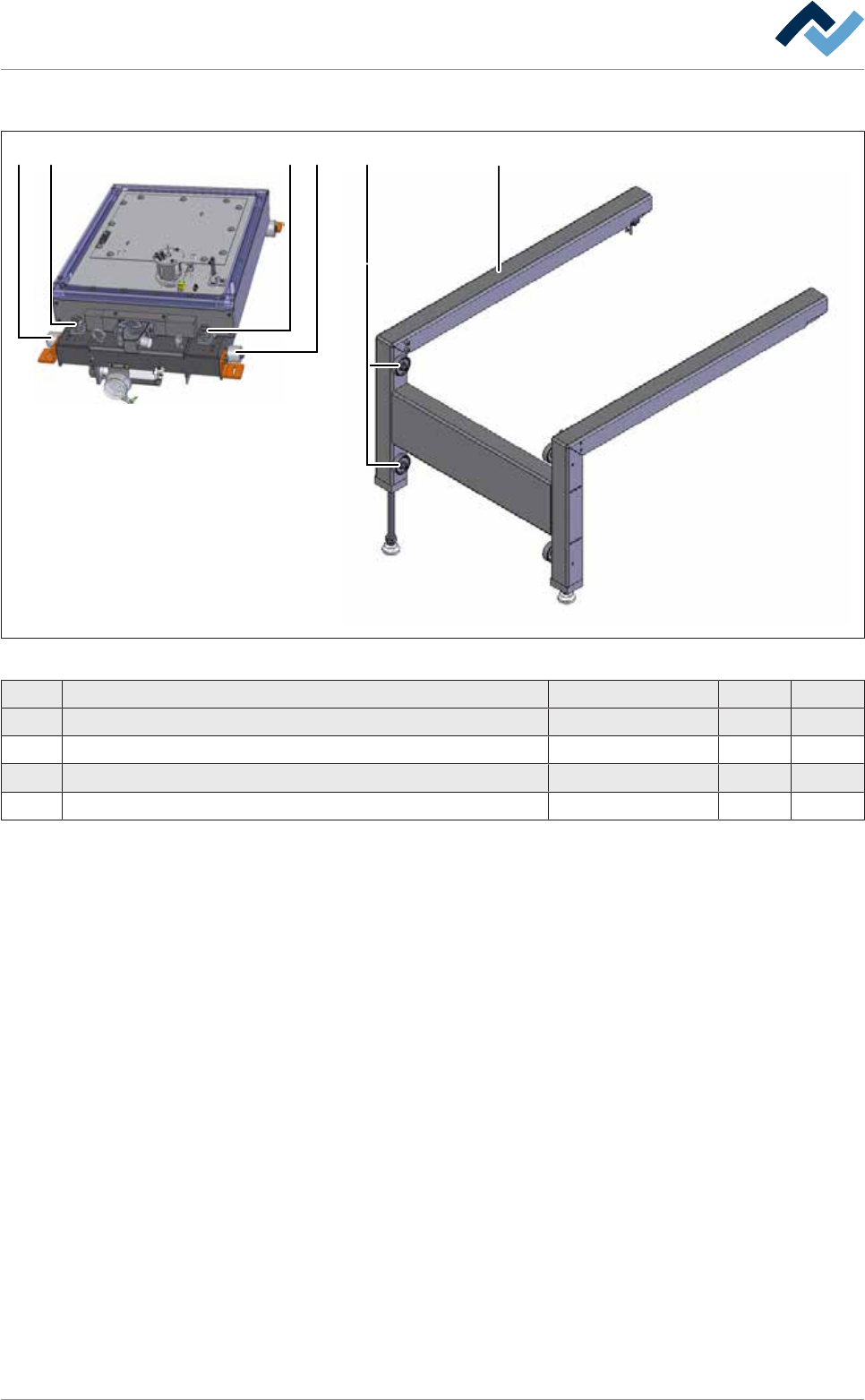

Fig.376: EM131-61-00g
Pos Description Item number A B
1 Adjusting screw 135733 x
2 Knurled roller Ø 50 mm 216492 x
3 Trolley 261146 x
4 Slilde roller 6LRO48-16-06 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 662/695
9|Spare and wear parts

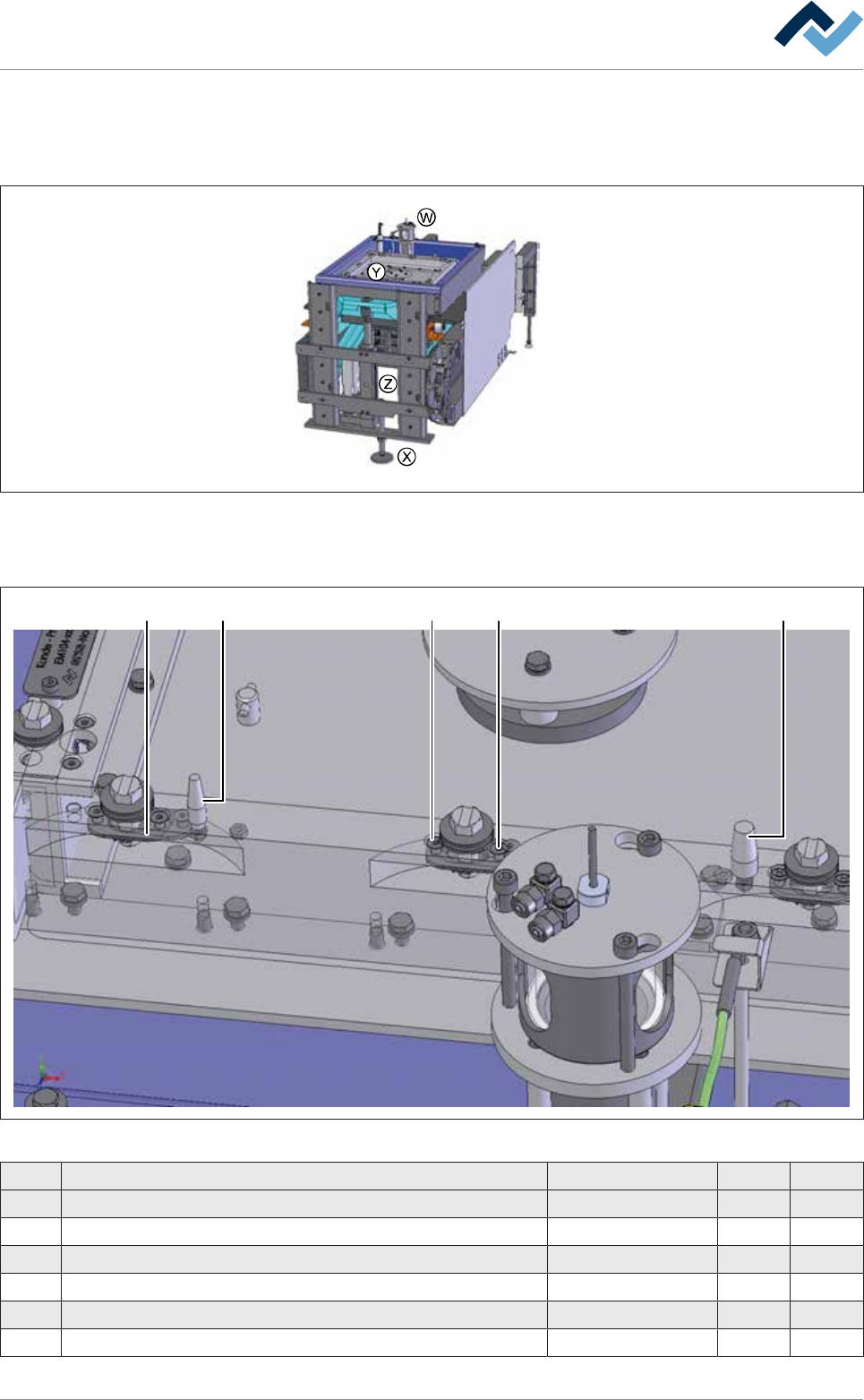

9.9.3.2 DIP soldering module (multiwave) XL pressure chamber and solder pot
Overview
Fig.377: EM131-61-00b
View [Y]
3 4 41 2
Fig.378: EM131-61-00c
Pos Description Item number A B
1 Fixing bolt, long, Ø = 8 mm 216359 x
2 Fixing bolt, long, Ø = 12 mm 216360 x
3 Bajonet cap, bottom part 139072 x
4 Countersunk screw 102588 x
5 Extraction tool for solder nozzles (without image) 12555 x
6 Box spanner SW13 (without illustration) 6ISK582005 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 663/695
9|Spare and wear parts
View [Y]
A AA 21
A A
Fig.379: EM146-61-10-00a
Pos Description Item number A B
1 Plate heating element 2 kW, 230 V 260107 x
2 Insulating 640x85x12, perforated 260108 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 664/695
