9|Spare and wear parts Single solder pot positioning system, view [Z] 1 1 3 3 4 2 2 2 5 Fig.203: EM113-20-00Ac Pos Description Item number A B 1 Motor/gear combination --> 2010 175816 x 1 Motor/gear combination 201…
9|Spare and wear parts
Single solder pot positioning system, view [X], [Y]
1 3 24 5
Fig.202: EM113-20-00Ab
Pos Description Item number A B
1 Adjusting screw 135733 x
2 Energy chain 139290 x
3 Tooth belt 25AT10HPF; 2400 mm 175810 x
4 Steel band 38 mm x 1100 mm 175814 x
5 Steel band 38 mm x 1100 mm 175814 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 474/695
9|Spare and wear parts

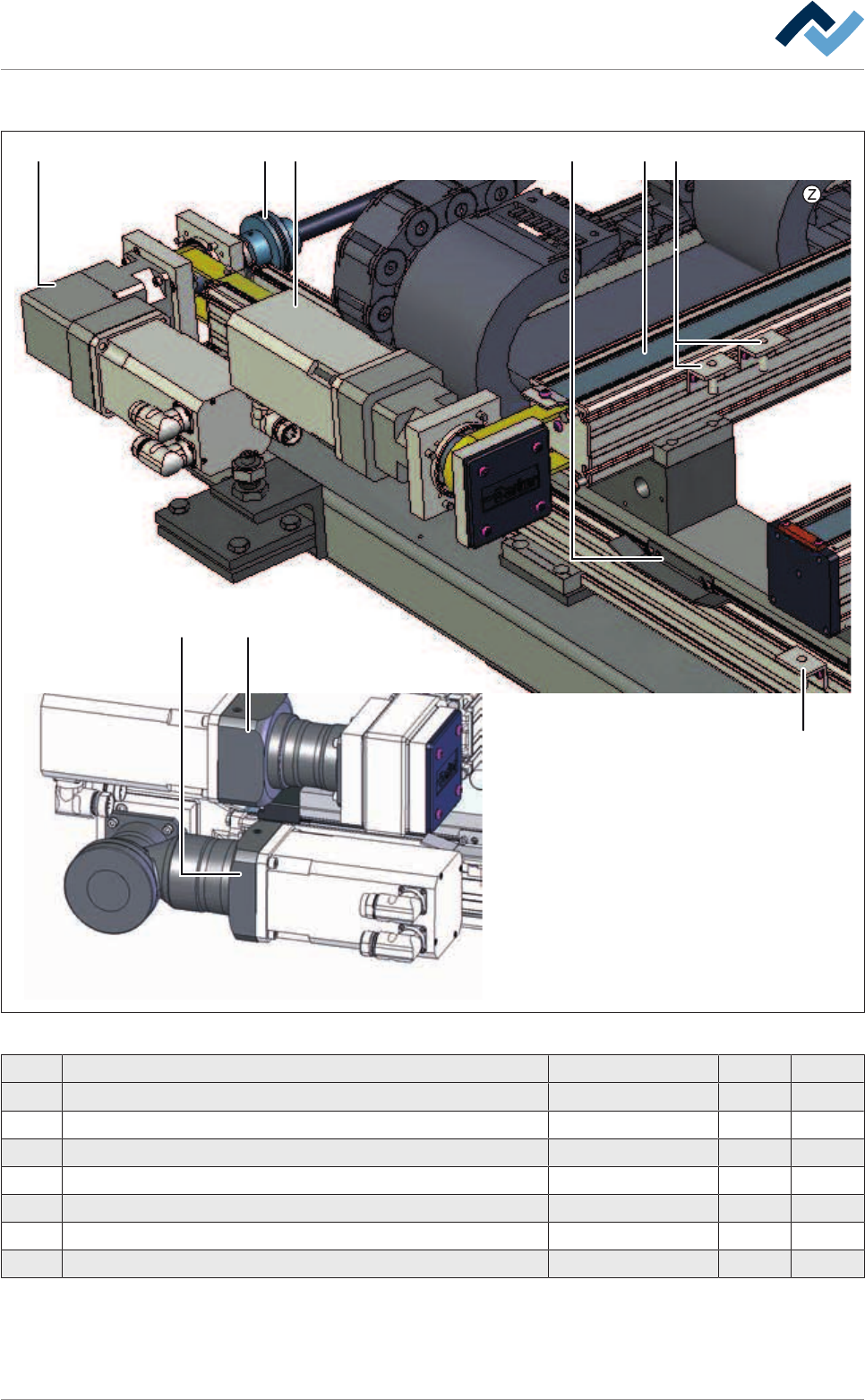

Single solder pot positioning system, view [Z]
1
1
3
3
4 22
2
5
Fig.203: EM113-20-00Ac
Pos Description Item number A B
1 Motor/gear combination --> 2010 175816 x
1 Motor/gear combination 2010 --> 191607 x
2 Motor/gear combination --> 2010 175817 x
2 Motor/gear combination 2010 --> 191608 x
3 Assembly set limit switch 175818 x
4 Cam set 175819 x
5 Coupling 175820 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 475/695
9|Spare and wear parts
CAUTION
Malfunctioning possible!
If the motor/gearbox combination 175816is replaced by the 191607 one, you must
load the appropriate parameters in the driver controller. With respect to this, please
read the [100049_SSD_Drive_einrichten.pdf] in the data carrier [Product data Versa-
flow 3] document. You can find the WPLN type parameters in the [Software\Parker
\Maschinendaten\638_Versaflow3xx\Parameter] directory. If the motor/gearbox
combination 175817 is replaced by the 191608 one, no adjustment of the parameters
is necessary.
