9|Spare and wear parts 9.5 Transport system 9.5.1 Fluxer unit conveyor system 9.5.1.1 Fixed rail 1, (single track) Overview Fig.225: EM113-333-10-00 Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 499…
9|Spare and wear parts

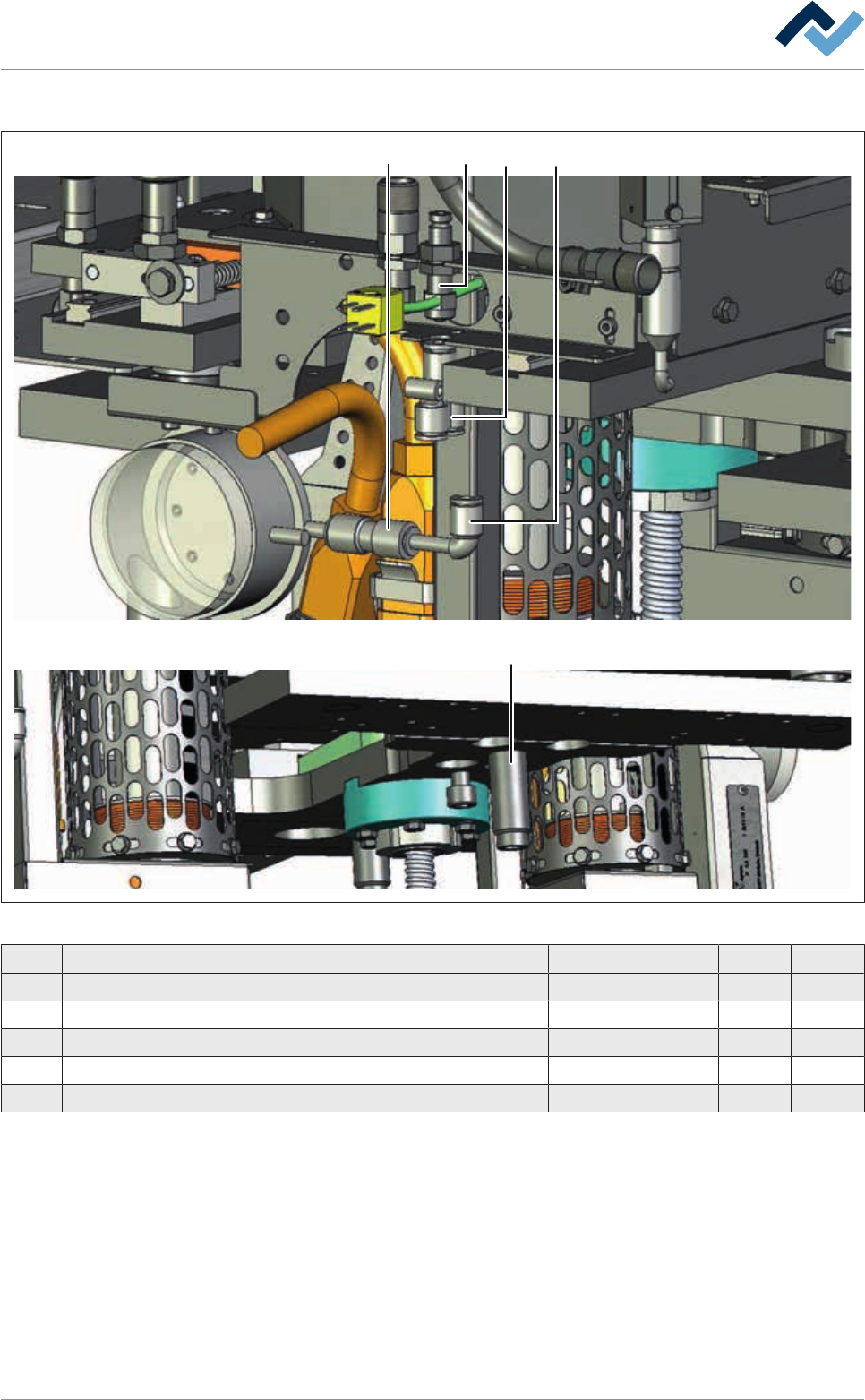

Z-axis excentric solder pot, y-variable
4 2
1
35
Fig.224: EM113-23-01-00b
Pos Description Item number A B
1 Shock absorber 182130 x
2 Y-piece 103408 x
3 Angular-connector 100964 x
4 Reduction piece, straight, pluggable 100637 x
5 Connector, M10 x 1 182134 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 498/695
9|Spare and wear parts
9.5 Transport system
9.5.1 Fluxer unit conveyor system
9.5.1.1 Fixed rail 1, (single track)
Overview
Fig.225: EM113-333-10-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 499/695
9|Spare and wear parts
Fixed rail 1, (single track), view [Z]
1
4
5
2
8
5
6
5
11
3
9
10
7
Fig.226: EM113-333-10-00a
Pos Designation Item number A B
1 Joint clip 170367 x
2 Straight screwing M5, stainless stell 97965 x
3 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant 85950 x
4 Swivel head M6 170366 x
5 Screw M3 6M03X008Z0912 x
6 Washer 8/14X0,5 DIN988 6SA08X0.50 x
7 Circlip A 8x0,8mm, DIN 471 6SER-A080471 X
8 Collar bush 143513 x
9 Conveyor chain, 3 mm pins, bulk stock 208821 X
10 Chain joint 3 mm 208824 X
11 Groove nut, flute width 6 M4 26315 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 500/695
