6|Function description
6.14.9 Operation of the modules, module maintenance
The fluxing and soldering modules can be enabled via the Module maintenance
user interface. This is necessary if, for example, maintenance or cleaning activities
must be carried out.
Module maintenance can be enabled from the input dialog of the respective mod-
ule if the machine is in the [Maintenance mode] or [Automatic mode] operation
mode.
If in the meantime the selected module is operating, production is completed be-
fore module maintenance is enabled. During this time the [Module maintenance]
button flashes yellow.
Module maintenance is enabled from the input dialog of the relevant module:
Edit dialog Soldering unit 1 Solder pot 1
Solder pot
user:
none
Maintenance mode
Temperature
Operation mode
Set value Actual value
manual
Module tests
Next test
Wave offset
Switch functions
Manual movement
Set value
Actual value
Automatic positioning
Set no.
Panel
Remaining time
Active tool
Solder
pot 1
Wave power
85
85
295
295
295
007 -
10
3
14616
330.0 -137.0 57.0 100.0
329.8 -136.9 57.1 0.0
Special positions

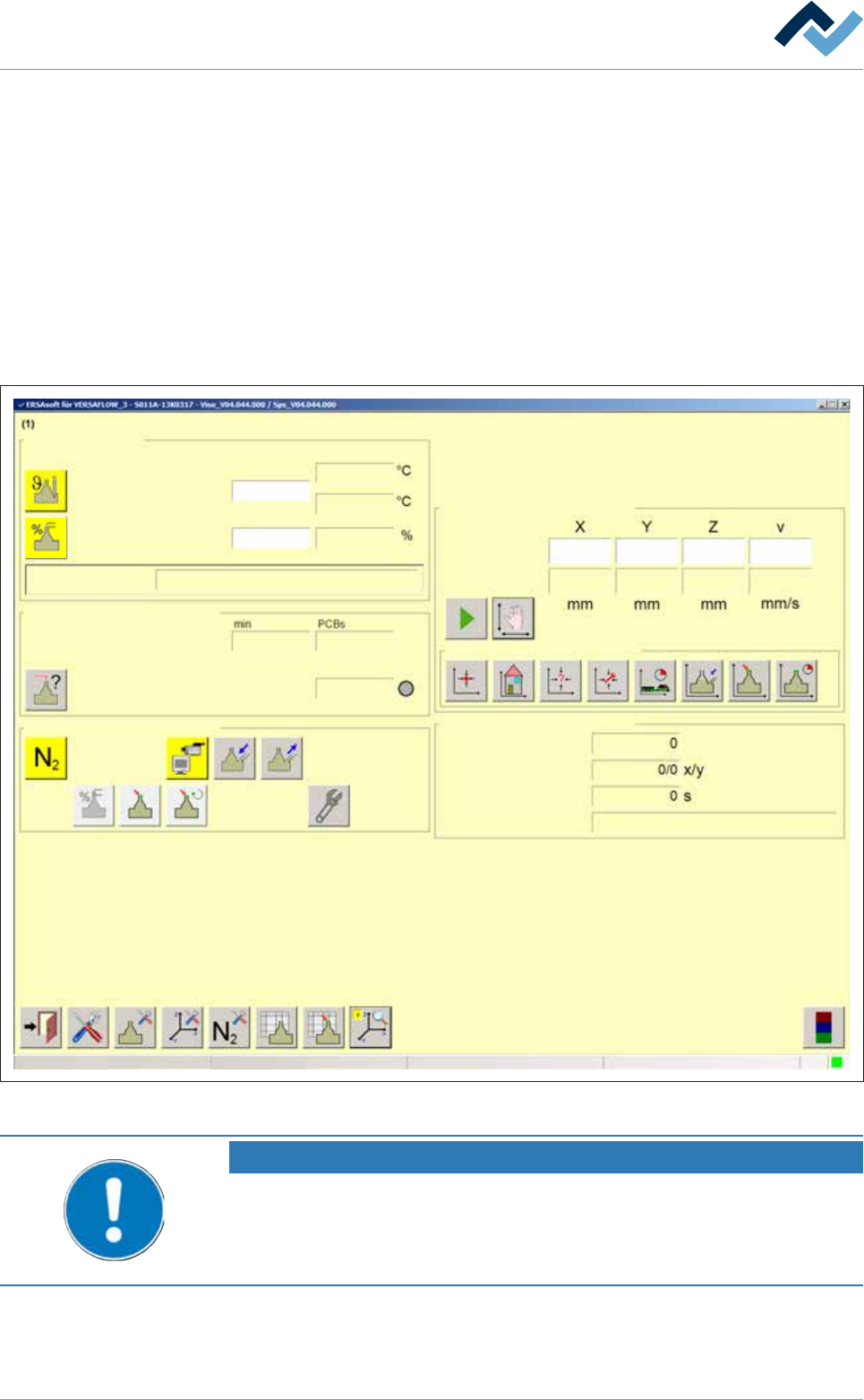

Fig.61: The [Soldering unit 1 Solder pot 1] input dialog
NOTE
Different description
This document describes all the functions - even those which may not be supported
by your machine equipment. For this reason, the representation of the machine in
your visualization may be different from the functional description at hand.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 242/695
6|Function description
6.14.10 Tutorial: Module maintenance
DANGER
Severe or fatal injury from hot machine!
The entire machine is hot during operation and contains liquid metal!
a) Service on the hot machine may only be carried out by specially trained staff,
qualified for this type of work! For these types of work, a company internal oper-
ating procedure for protective clothing is to be issued!
b) You should always take into account the possibility for metal to spray out!
c) Special care is required when refilling the pot and working on the pot!
Enabling soldering module maintenance
To enable the Module maintenance of the fluxer module, follow the same steps as
those described for enabling the Module maintenance of the soldering module.
ü To enable the Module maintenance of the soldering module,
ü the logged-in user must have the necessary rights.
ü The machine is in the [Maintenance mode].
a) Open the start dialog.
Preheating Soldering module ExitInfeed Infeed unit
Solder pot
user: none
Flux unit
Maintenance mode

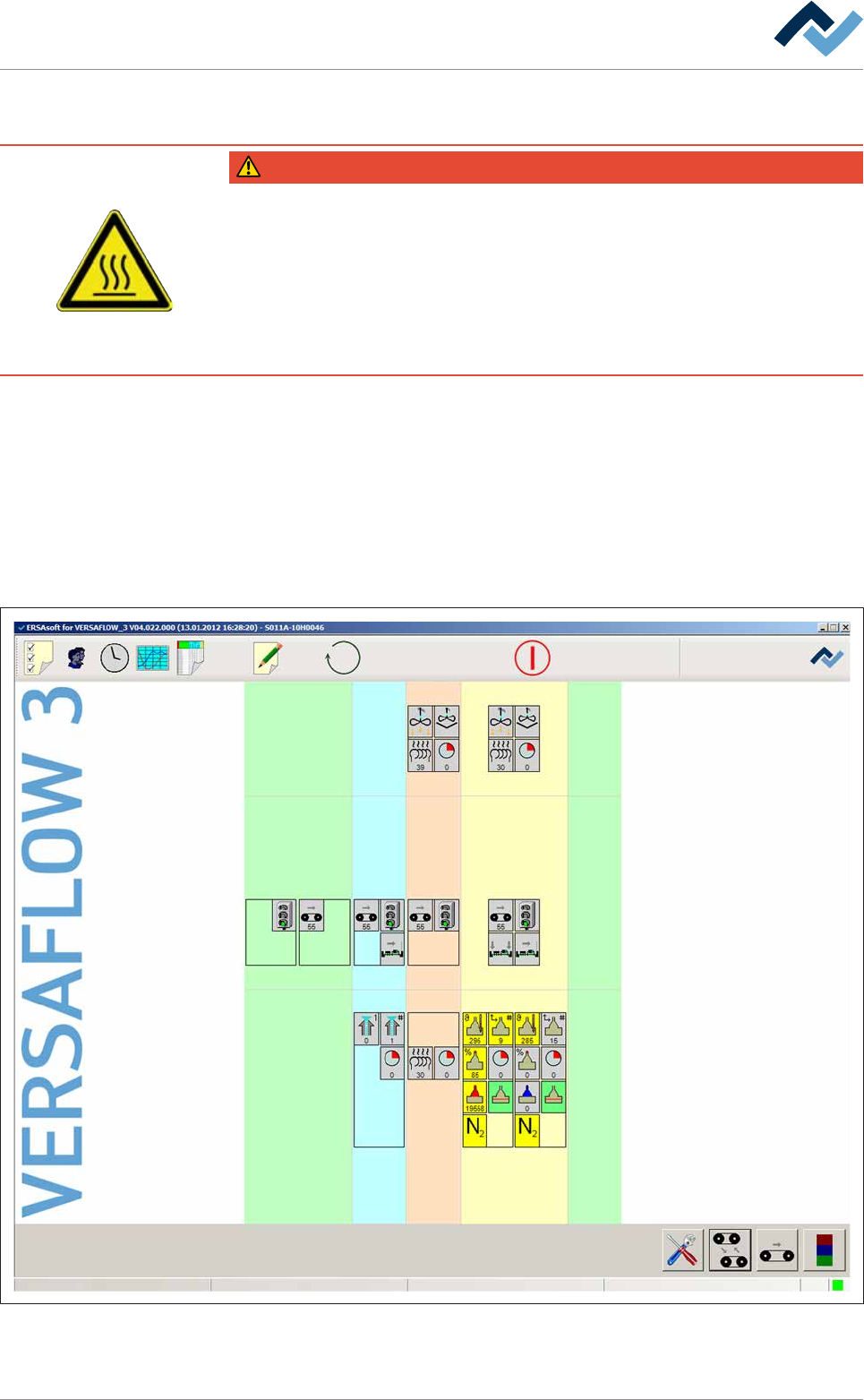

Fig.62: The start dialogue of the control software
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 243/695
6|Function description
b) In the [Soldering unit], click on the button .
ð If the machine is equipped with more than one solder pot, this button can
also be present more than once.
ð The [Soldering unit] input dialog is opened:
Edit dialog Soldering unit 1 Solder pot 1
Solder pot
user:
none
Maintenance mode
Temperature
Operation mode
Set value Actual value
manual
Module tests
Next test
Wave offset
Switch functions
Manual movement
Set value
Actual value
Automatic positioning
Set no.
Panel
Remaining time
Active tool
Solder
pot 1
Wave power
85
85
295
295
295
007 -
10
3
14616
330.0 -137.0 57.0 100.0
329.8 -136.9 57.1 0.0
Special positions
Fig.63: the [Soldering unit] input dialog
c) In the [Switch functions], click on the button .
ð The Module maintenance is started.
ð While the Module maintenance is started, the button flashes yellow.
ð The soldering material in the module is completely processed. Meanwhile,
the button flashes yellow.
ð As soon as the Module maintenance is active, the button is displayed in
yellow.
ð The process has now been completed.
