6|Function description 6.8.3 The bottom frame of the [Process recorder] dialog In this window, you can import and graphically display the production data which was recorded at an earlier point in time. User ersa mainte…
6|Function description
c) Release the mouse button. The selected area is now displayed in an enlarged
way. If required, this process can be repeated several times until the zoom limit
has been reached.
d) Click on the [Zoom in] checkbox again.
ð The checkmark disappears and the graphic is displayed again with its original
resolution.
Printing function
ü To print a graphic
a) Click on the
button in the bottom toolbar.
ð The print dialog box is launched. For the printing process, a previously se-
lected zoom area is also taken into account.
b) Follow the instructions on the screen.
NOTE
Why are two print dialogs displayed?
If process data is displayed in the upper as well as in the lower windows, the print dia-
log is displayed twice: once for the upper window and once for the lower window. If
one of the windows is not to be printed, you can cancel the concerned print dialog.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 161/695
6|Function description
6.8.3 The bottom frame of the [Process recorder] dialog
In this window, you can import and graphically display the production data which
was recorded at an earlier point in time.
User ersa
maintenance mode
Interval
Zoom in
Interval
Zoom in

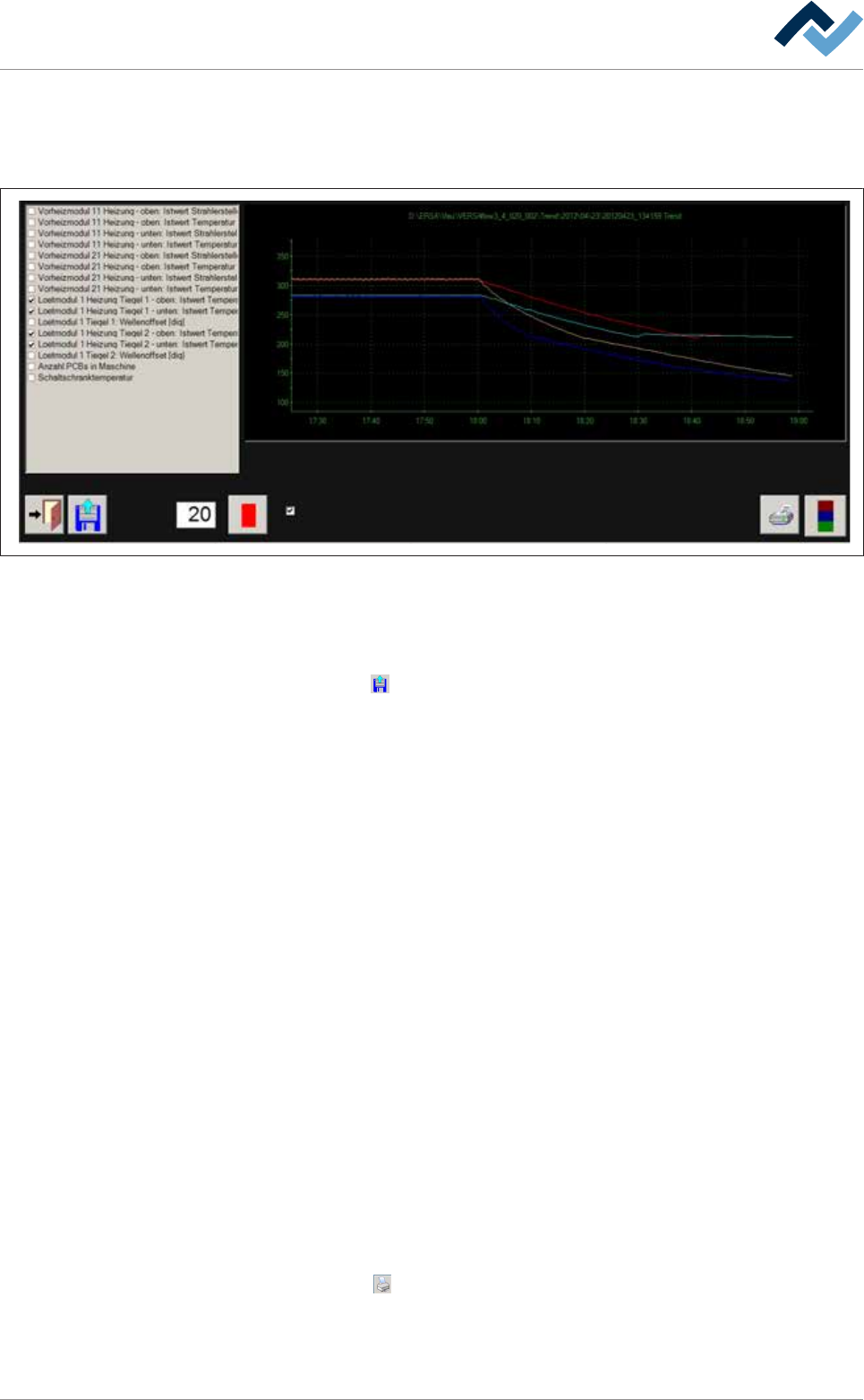

Fig.33: The [Process recorder] dialog. Depending on your machine equipment, this illustration may differ from the actual display.
Importing and graphically displaying data
ü Import and graphically display data:
a) click on the
button.
ð A selection dialogue is opened.
b) Select a file by double clicking on it.
ð Data is imported.
c) In the left window, select which readings are to be displayed.
ð The readings are displayed graphically.
Zoom function
ü Viewing the graphic in a higher resolution:
a) Click on the [Zoom in] checkbox.
ð The zoom function is enabled.
b) Click with the mouse on the desired section of the graphic and, while pressing
the mouse button, drag over the desired area.
c) Release the mouse button. The selected area is now displayed in an enlarged
way. If required, this process can be repeated several times until the zoom limit
has been reached.
d) Click on the [Zoom in] checkbox again.
ð The checkmark disappears and the graphic is displayed again with its original
resolution.
Printing function
ü To print a graphic
a) Click on the
button in the bottom toolbar.
ð The print dialog box is launched. For the printing process, a previously se-
lected zoom area is also taken into account.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 162/695
6|Function description
b) Follow the instructions on the screen.
Click on
to close the dialog.
