9|Spare and wear parts
9.9 DIP_soldering units and options
9.9.1 DIP soldering module (multiwave) with paddle wheel pump
9.9.1.1 Gassing hood
Overview

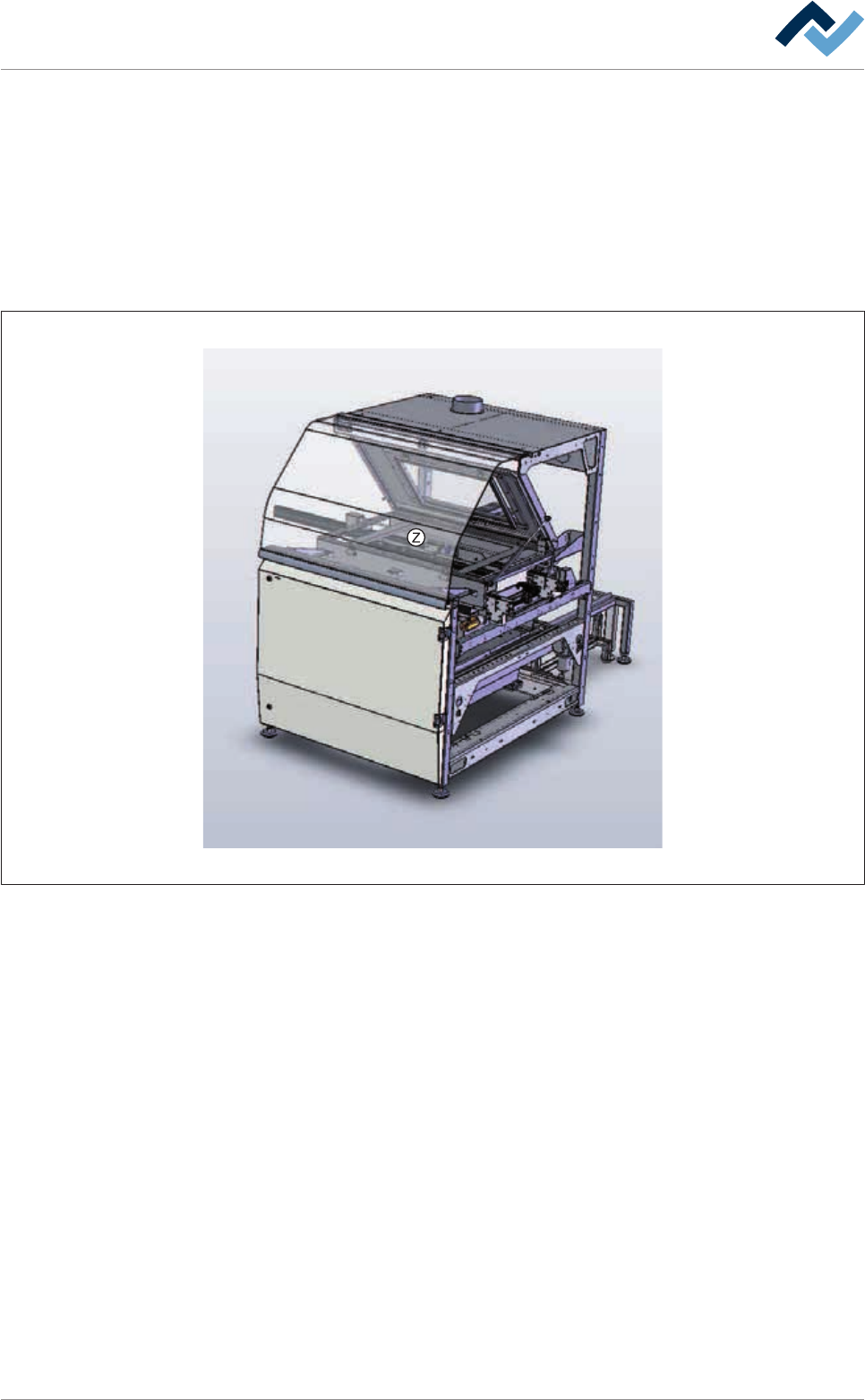

Fig.346: EM58-21-01-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 631/695
9|Spare and wear parts
Gassing hood, view [Z]
1
2
4
5
3

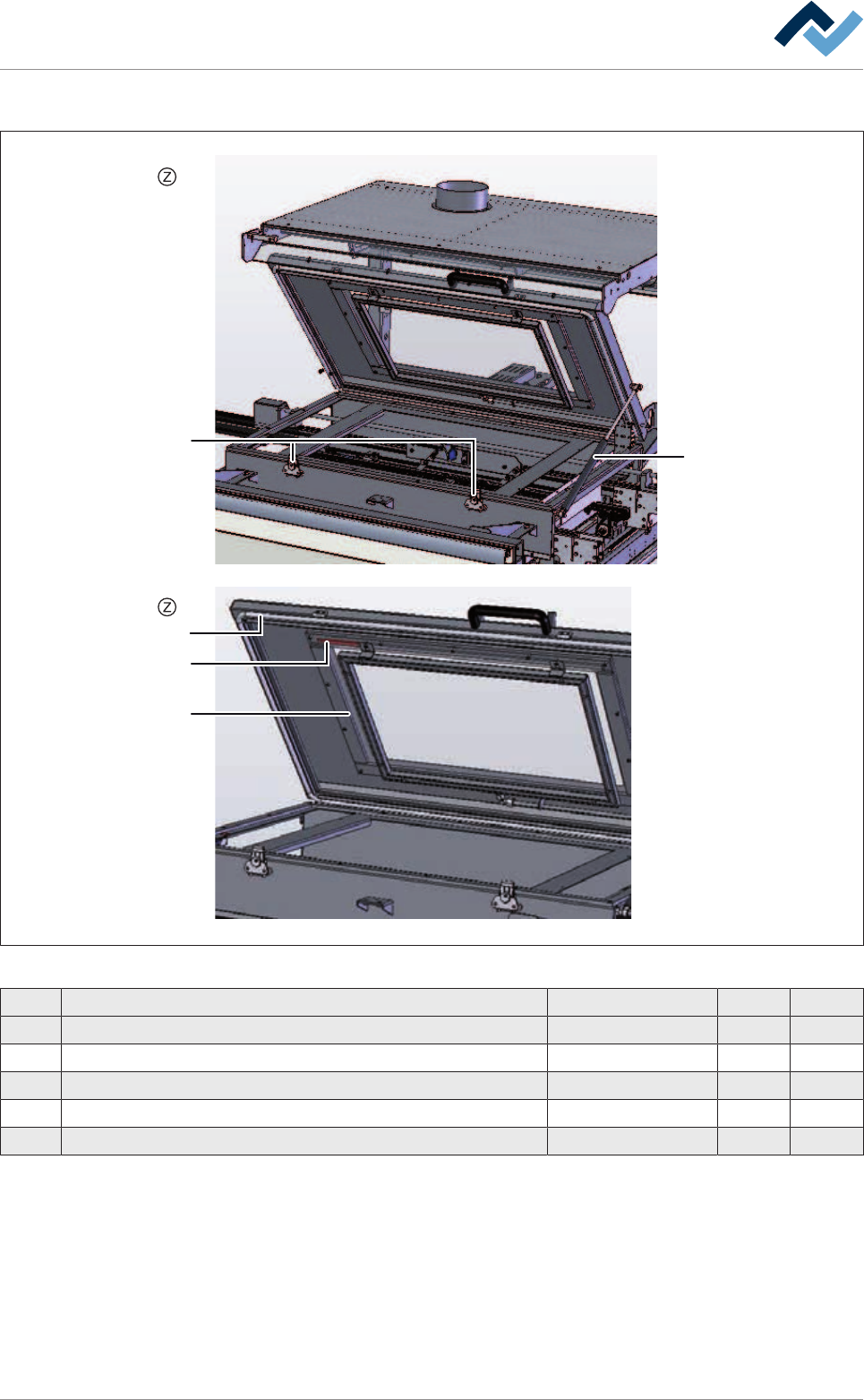

Fig.347: EM58-21-01-00a
Pos Designation Item number A B
1 Clamp closure with spring 6SPANVERS-01 x
2 Gas spring (230 N) 163756 x
3 Silicone profile, heat-resistant 6X00033 x
4 Silicone loop, preassembled 6ISK58210700A x
5 Cera insulating paper 6ZT00096 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 632/695
9|Spare and wear parts
9.9.1.2 Roll out unit
Overview

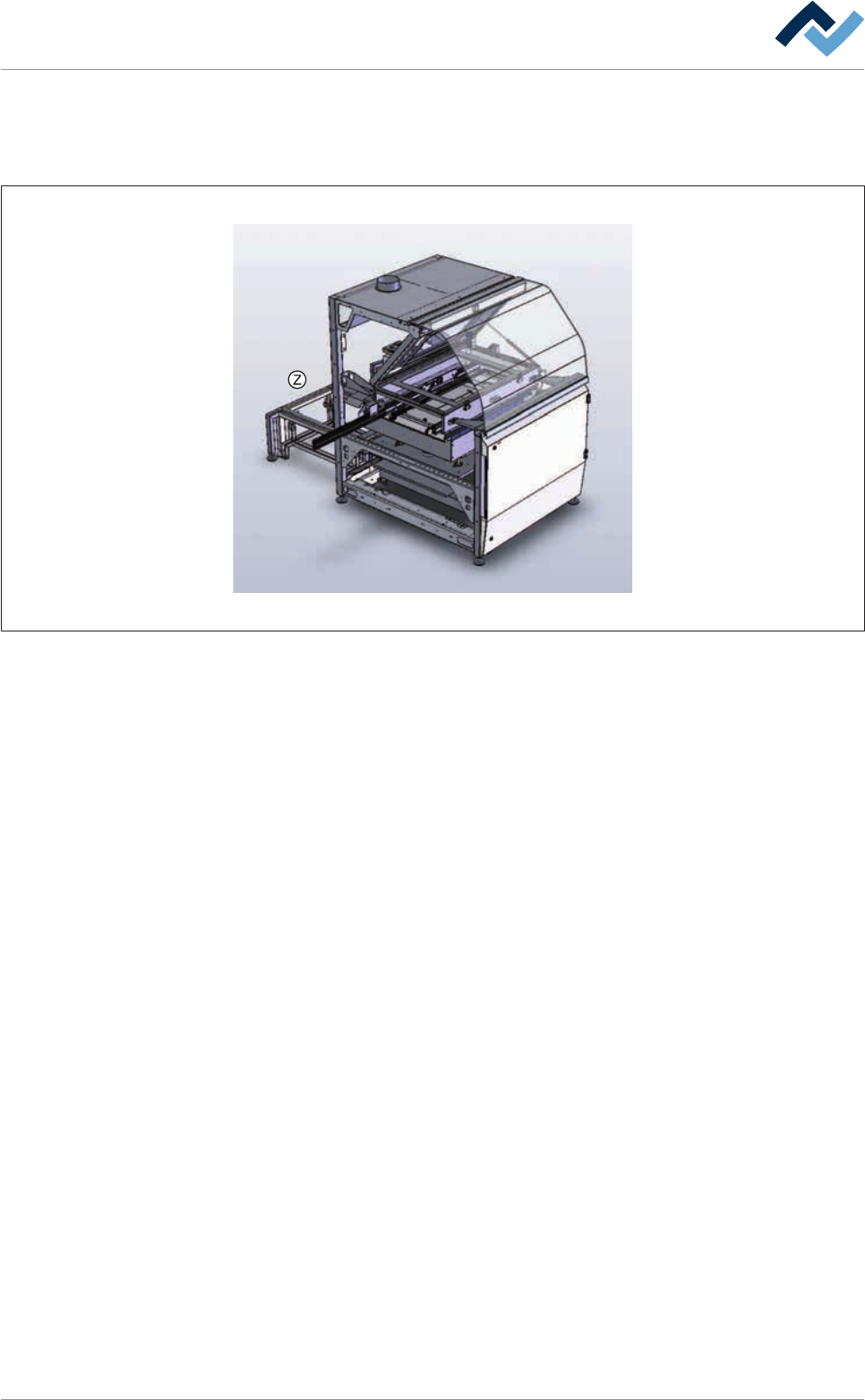

Fig.348: EM128-20-09-00
