9|Spare and wear parts
Base module 150
1
Fig.177: EM113-11-00a
Pos Designation Item number A B
1 Lever element 86699 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 449/695
9|Spare and wear parts
Base module 150
1 1 1 1
Fig.178: EM113-11-00b
Pos Designation Item number A B
1 Gas spring (300 N) * 89801 x
2 Flourescent lamp 18 W (unpictured) 41521 x
*Please note the type designation on the gas spring housing! To mount the gas
spring, Assembly tool for gas spring, item 123716 is required! Always have gas
springs replaced by specialised personnel!
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 450/695
9|Spare and wear parts
9.2.2 Base module 75
1 32
4

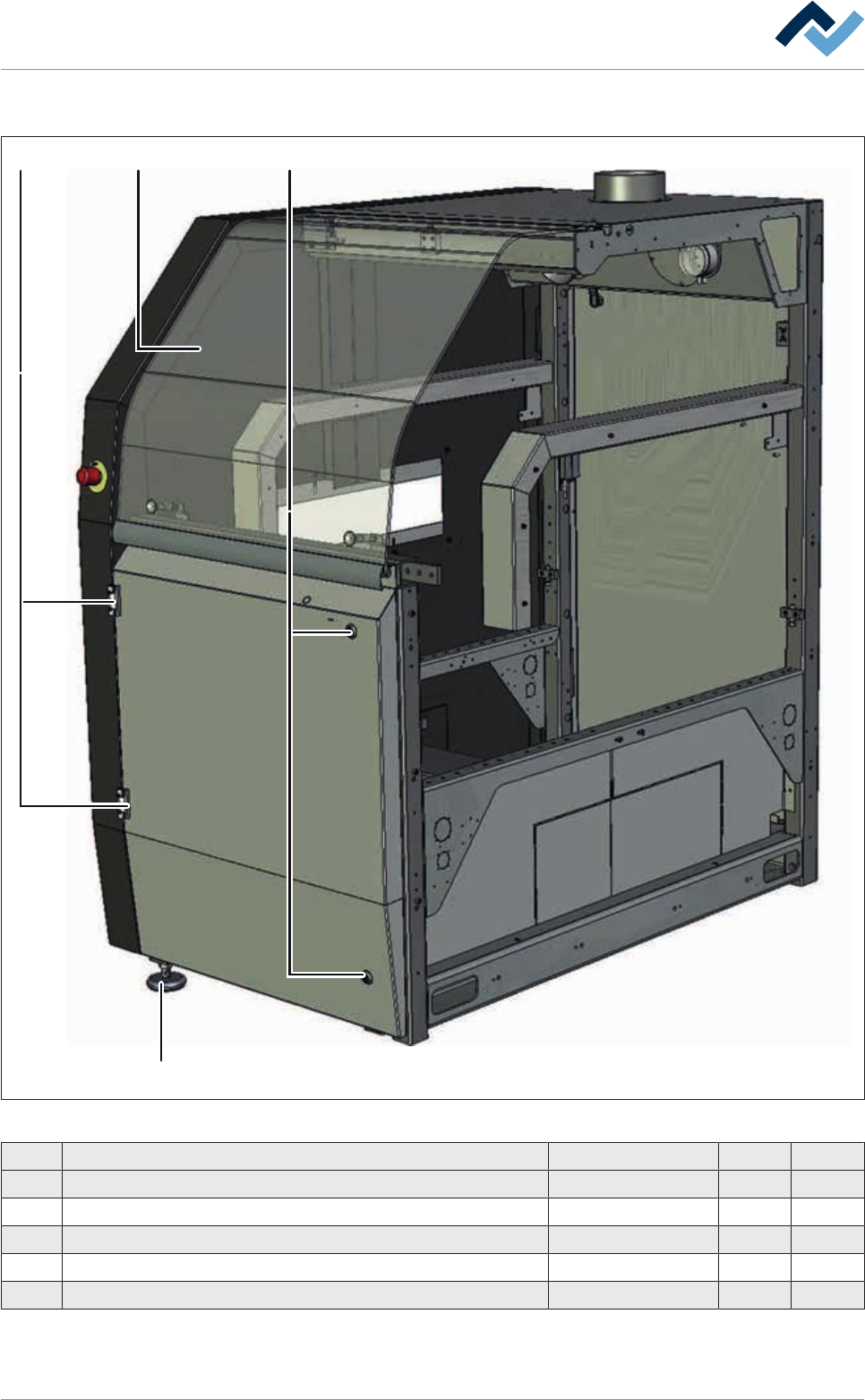

Fig.179: EM113-10-00
Pos Designation Item number A B
1 Safety glass plate module 750 86274 x
2 Hinge EMKA Type 1110 93324 x
3 Lock 6VER2520 x
4 Adjusting foot 6STELLFM16X155 x
5 Key for control cabinet (unpictured) 6VERSCHLÜ2531 x
