9|Spare and wear parts
9.8.6 Solder pot, symmetrical, dual track
8
2
3
4
9
5
9
7
6
6
1
Fig.329: EM113-60-00, EM113-69-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 614/695
9|Spare and wear parts
Pos Designation Item number A B
1 Closure 6SPV-TL806B x
2 Graphite sealing ring 192323 x
3 Lock screw L2C 153855 x
4 Electro magnetical pump, type B02 (Standard) 145982 x
4 Electro magnetical pump, type D01 (Option) 266106 x
5 Pump centering ring 153876 x
6 Thermocouple 2xNICR-NI D3 with plug 154236 x
7 Ring heater (pump tube) 150 W --> 02/2015 6HKRI36H36 x
7 Heating element, pump sump, 230 V / 150 W 03/2015 -->
10/2017
273536 x
7 Heating element, pump sump, 230 V / 150 W 10/2017 --> 312371 x
8 Ring heater (pot) 1000 W 153896 x
9 Locking ring 109650
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 615/695
9|Spare and wear parts

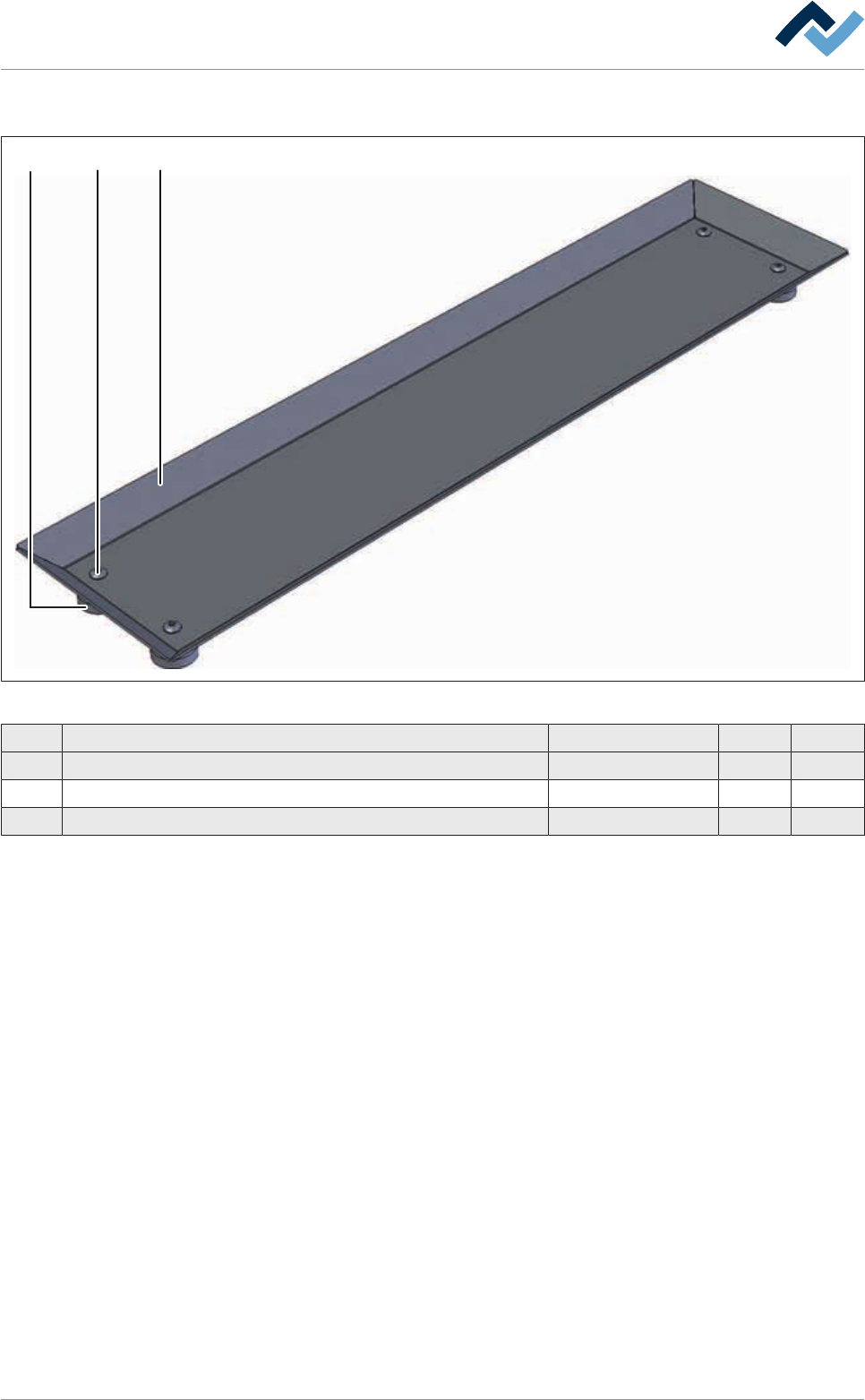

9.8.7 Deposit tray
2 13
Fig.330: EM113-20-30-00
Pos Description Item number A B
1 Storage tray 242526 x
2 Magnet (neodym) 242505 x
3 Screw M4x6 6M04X006E7380 x
