9|Spare and wear parts Spray fluxer, complete 1 2 4 6 5 3 1 1 2 3 Fig.191: EM113-40-00Ab Pos Designation Item number A B 1 Tooth belt, bulk stock 213039 x 2 Motor/gear combination, complete 204050 x 3 Coupling unit, m…
9|Spare and wear parts
Spray fluxer, view [X], [Y], [Z]
1
2
10
4
5
7
11
6
9
3
1
3
7
8
Fig.190: EM113-40-00Aa
Pos Designation Item number A B
1 Inductive sensor PNP, NC 146183 x
2 Inductive sensor PNP, NO 146185 x
3 Adjusting screw 135733 x
4 Axis of rotation for height adjustment 155309 x
5 Energy chain 155662 x
6 Energy chain X-axis Fluxer 155639 x
7 Spring steel clamp 6FEDKL-G-D6-Z x
8 Hose clip, Euroclip 6SKLS101-12 x
9 Cable bushing 6KATÜ07-10 x
10 Tooth belt 16AT5, 1545 mm 216457 x
11 Tooth belt 16AT5, 2215 mm 216458 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 462/695
9|Spare and wear parts

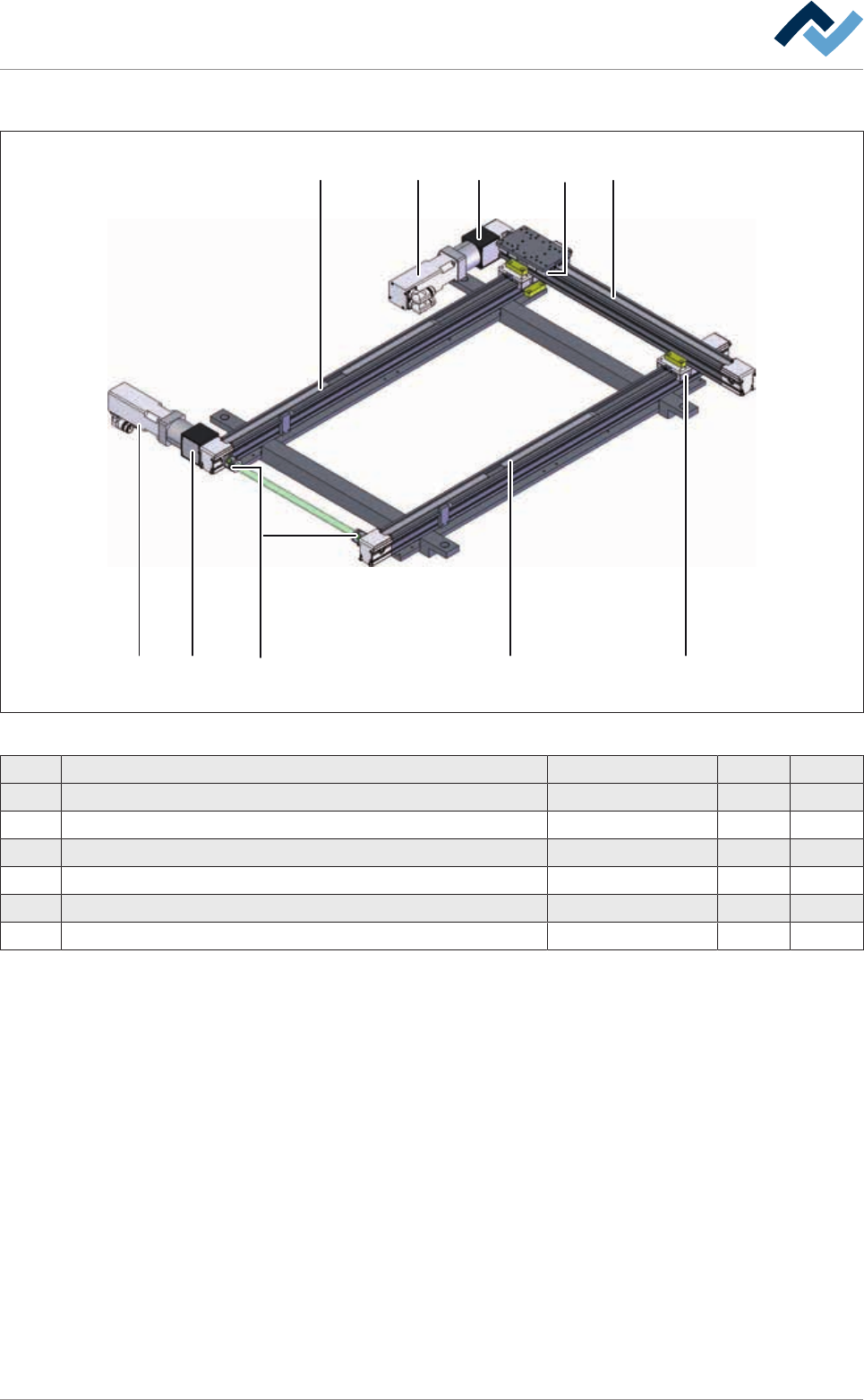

Spray fluxer, complete
1 2 4
65
3 1
12 3
Fig.191: EM113-40-00Ab
Pos Designation Item number A B
1 Tooth belt, bulk stock 213039 x
2 Motor/gear combination, complete 204050 x
3 Coupling unit, motor 213037 x
4 Sliding piece 213036 x
5 Coupling (Shaft) 213038 x
6 Sliding piece (red point) 226780 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 463/695
9|Spare and wear parts
9.3.2 Fixed spray head holder (single track)
1
2
4
3
Fig.192: EM113-41-01-00
Pos Designation Item number A B
1 Spray head holder, fix 172047 x
2 Spray head holder, adjustable 145269 x
3 Set screw 6M03X010Z0914 x
4 Set screw M03X003 zinc-plated ISO 4026/DIN 913 6M03X003Z0913 x
