9|Spare and wear parts

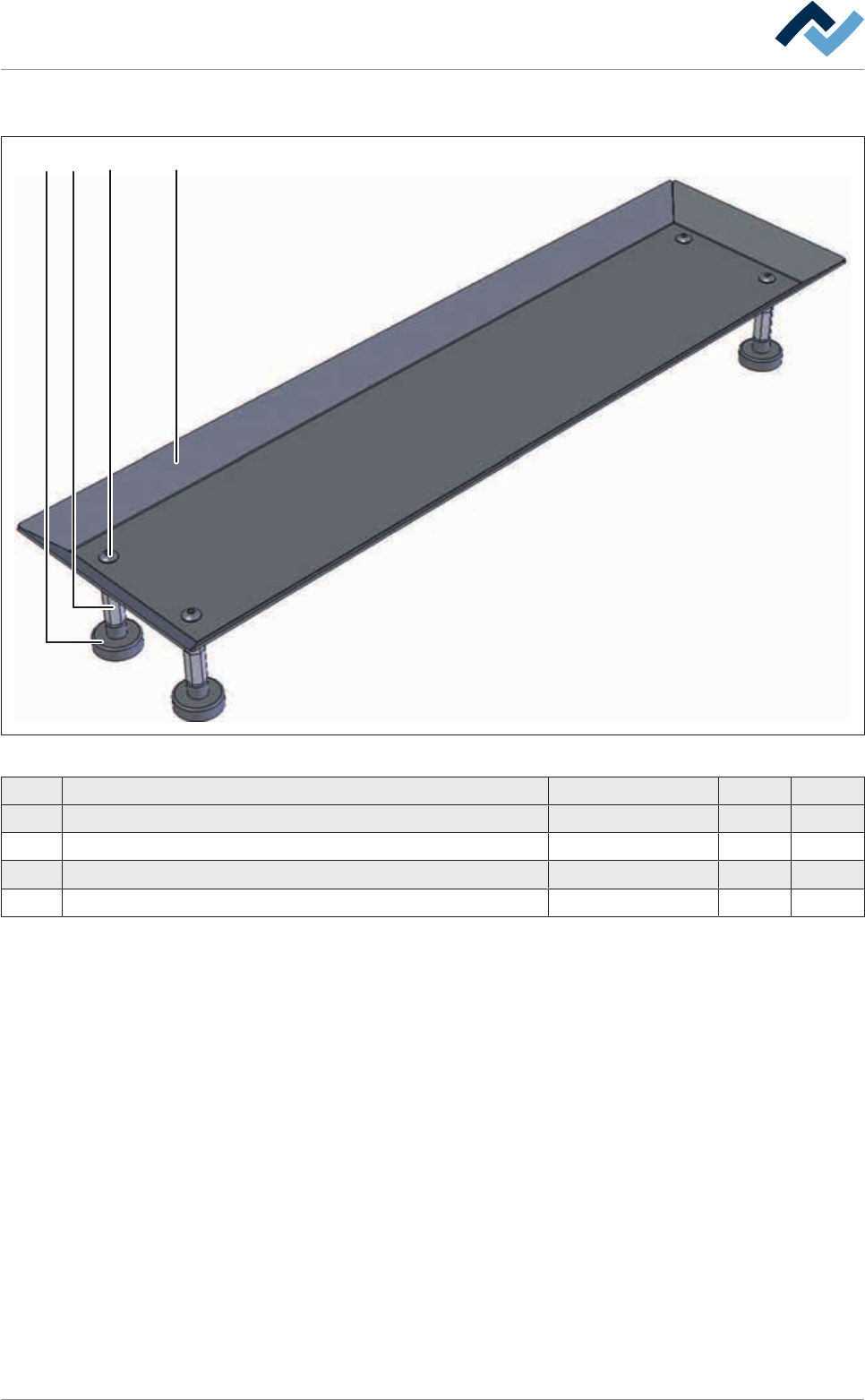

9.8.8 Storage tray (dual track)
2 134
Fig.331: EM113-24-30-00
Pos Designation Item number A B
1 Storage tray, dual track 243429 x
2 Magnet (neodym) 242505 x
3 Screw M4x6 6M04X006E7380 x
4 15 mm M4 spacer bolts 6ET00119 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 617/695
9|Spare and wear parts

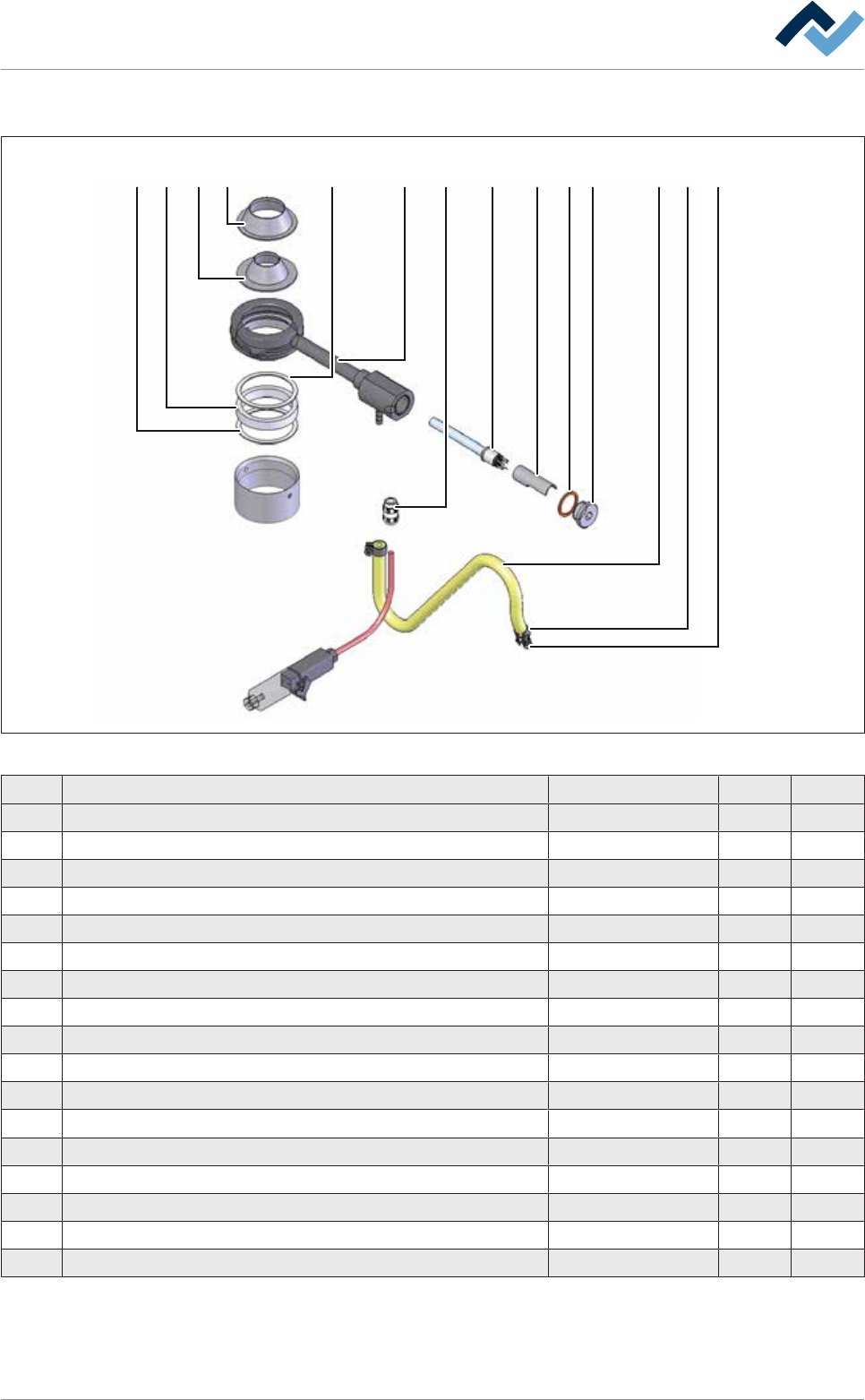

9.8.9 Gassing cap without heating insert
2 311 564101987 12 7
Fig.332: EM1500-160-00a
Item Designation Article number A B
1 Gassing ring with lower part 310670 X
2 Lock screw M20 x 1 242714 X
3 Connector, 6 mm 182166 X
4 Sealing ring, copper 153649 X
5 Hose clamp SM9 - NW12 248124 X
6 Tube, slicone, Ø 12 mm, bulk stock 214493 X
7 Sealing ring (Silicone) 146054 X
8 Gassing ring 252783 X
9 Gassing cap, upper part, Ø 24 mm 242715 X
10 Sealing ring, copper 6RCUD12.5X18 X
11 Lock screw M12 x 1,5 243331 X
12 Gassing cap, Ø 34 mm 242746 X
Tool for gasification, without illustration 243303 X
Cleaning brush stainless steel, without illustration 213024 X
High temperature grease TAS-WT 1400°C for assembling pos. 1 28444 X
