9|Spare and wear parts
Fixed rail 1, DIP induction (single track), view [X]
4
3 1 2
Fig.294: EM140-339-10-00d
Pos Description Item number A B
1 Jackscrew M12X1 170791 x
2 Groove nut STM5 6ZIS049 x
3 Chain pinion 05-Z9 143638 x
4 Chain guide 155902 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 573/695
9|Spare and wear parts
Fixed rail 1, DIP induction (single track), view [W]
4 5
3 1 2
Fig.295: EM140-339-10-00e
Pos Description Item number A B
1 Pressure spring VD-177 143511 x
2 Sliding piece, redirection 143640 x
3 Chain pinion 05-Z9 143638 x
4 Chain guide, fixed 143645 x
5 Chain guide, fixed 269848 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 574/695
9|Spare and wear parts

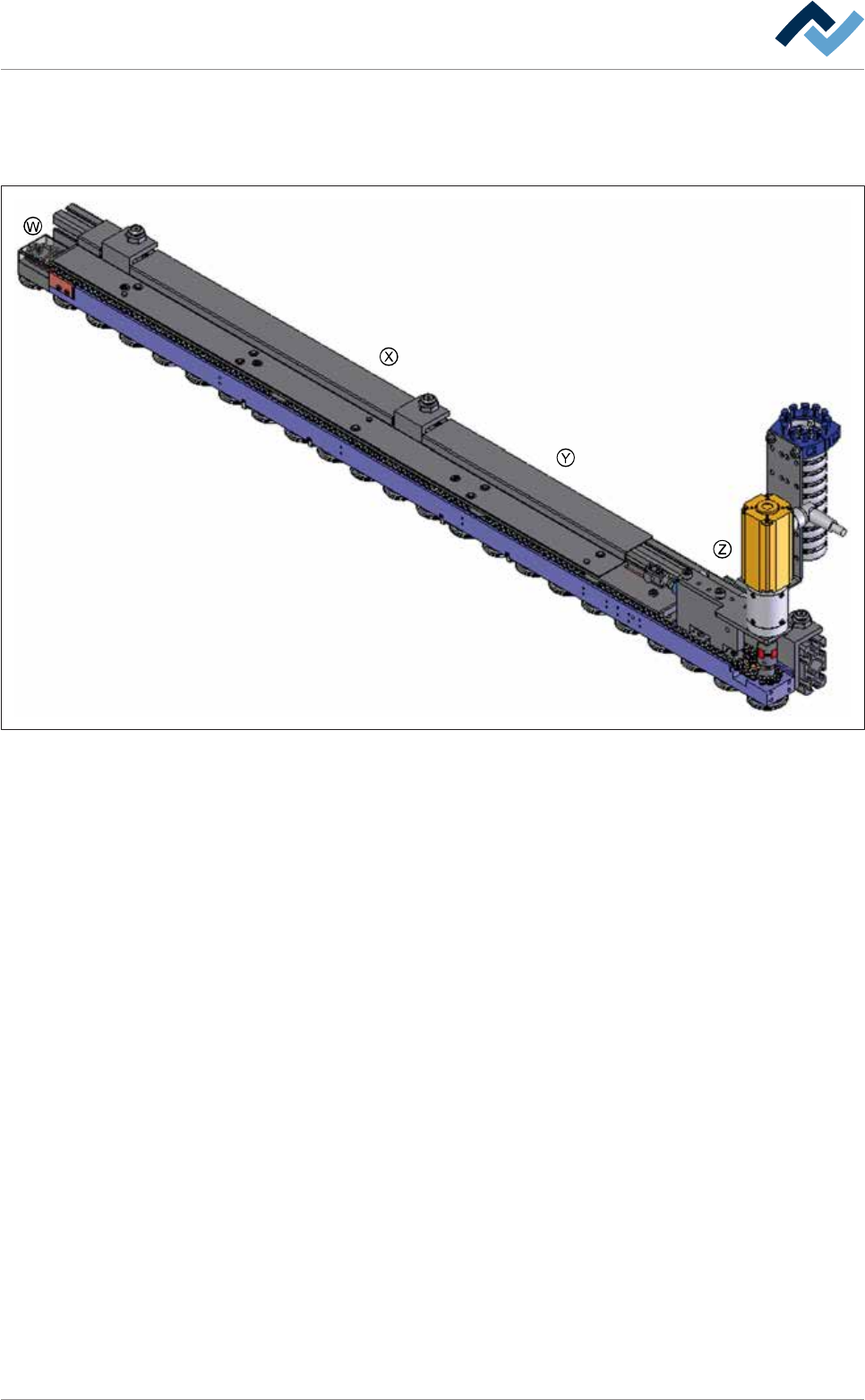

9.5.4.4 Flexible rail 1, DIP induction (single track)
Overview
Fig.296: EM140-339-20-00Aa
