4|Transport, installation, storage, disposal CAUTION Possible machine malfunctioning! Possible personal and material damage! a) Modules must be assembled by trained and qualified staff only. 4.10.1 Assembling the signa…
4|Transport, installation, storage, disposal
1
2
Fig.15: Alignment in a longitudinal direction
Tighten counter nuts
ü After aligning:
a) tighten all counter nuts on the adjustable feet with an open-end wrench.
ð The process has now been completed.
4.9.5 Remove the unit transport locks
The following units were secured prior to transport:
– Soldering units
– Fluxer unit
– Preheaters
– Flux material tank
ü Remove all transport locks:
a) Use a suitable tool.
b) Keep the transport locks for later use!
4.10 Assembling components
As a rule, the machine is supplied as a unit, except for the signal lamp. In individual
cases, e.g. due to local conditions, the machine is delivered in modules.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 79/695
4|Transport, installation, storage, disposal
CAUTION
Possible machine malfunctioning! Possible personal and material damage!
a) Modules must be assembled by trained and qualified staff only.

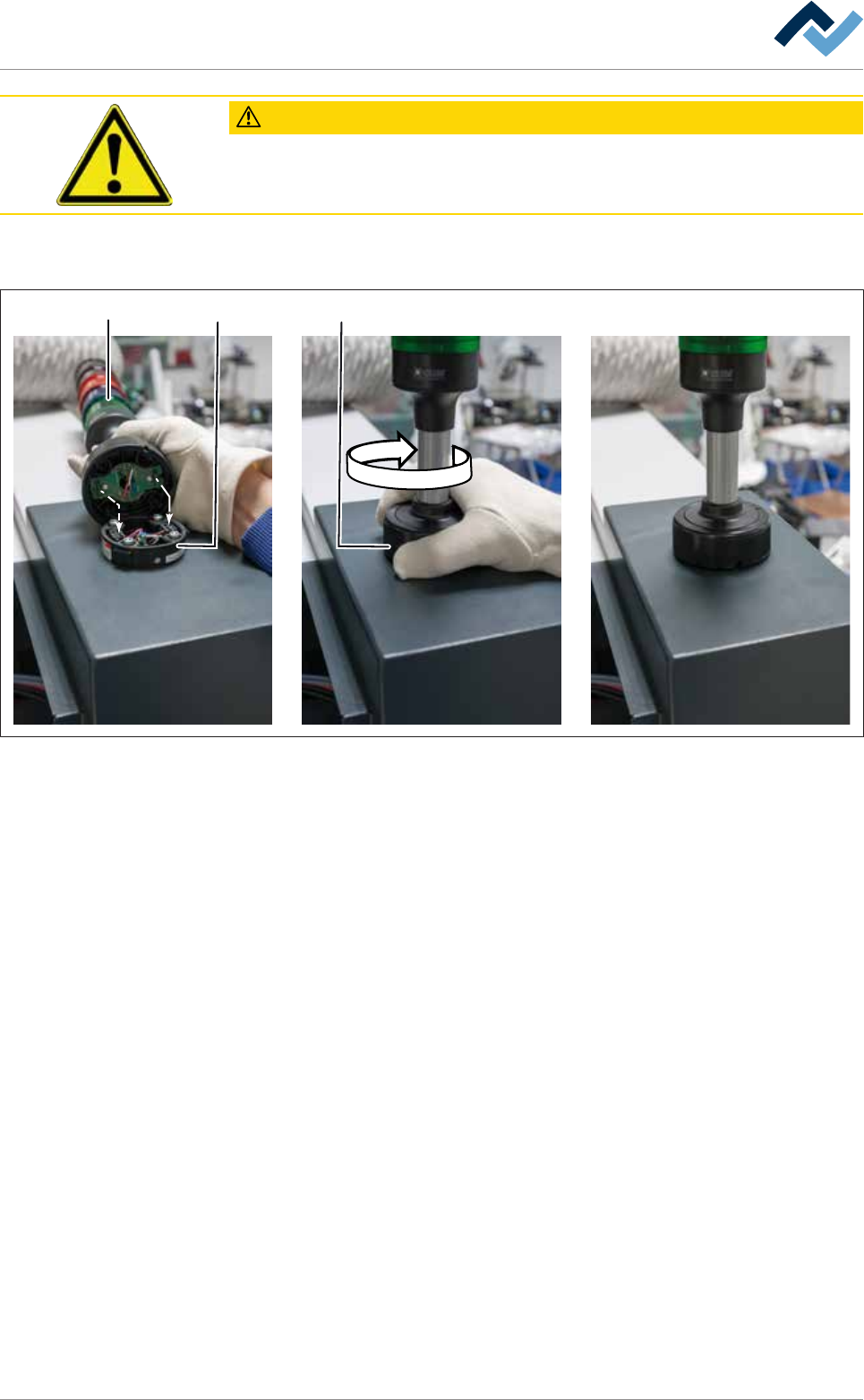

4.10.1 Assembling the signal lamp
A
B
B
A
1 2 3
ü Assembling the signal lamp:
a) Position the indicator light (1) so that the pins (A) are flush with the bushings
(B).
b) Insert the indicator light on the base (2) and turn the union nut (3) clockwise
until it stops.
ð The process has now been completed.
4.10.2 Assembling the code reader
ü Assembling and connecting the code reader:
a) use a suitable tool.
b) The electrical connection is to be carried out by trained and qualified electri-
cians.
c) Read the wiring diagrams provided.
d) Connect the code reader to the interface provided.
ð The process has now been completed.
4.11 Connecting the machine
This section describes the electrical connection as well as the connection to the
supply and disposal systems. The work described may only be performed by trained
and qualified staff and/or skilled specialists.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 80/695
4|Transport, installation, storage, disposal
DANGER
Possible personal and material damage!
a) For any work performed on the machine itself or on its electric or pneumatic
equipment, locally applicable accident prevention, safety and environmental pro-
tection regulations are to be observed.
b) Make sure that pipes are placed in such a way as to avoid stumbling accidents!
c) Properly assemble all guards and safety devices.
With respect to this, read also chapter Technical data [}25] and the supplied wir-
ing diagrams!
4.11.1 Preparing the electrical connection
DANGER
Dangerous electrical voltage!
Serious injury or death from electric shock!
ü Work on the electrical system or the machine operating equipment must be un-
dertaken only by skilled electricians or by properly trained people under the su-
pervision and guidance of skilled electricians in accordance with the electro-tech-
nical rules.
a) According to VDE 0022 standard, the operator and installer of the system are re-
sponsible for the compliance with EVU and VDE regulations.
CAUTION
Risk of property damages!
ü If the machine has been switched off via the main switch, do not restart it imme-
diately.
a) Wait at least for three minutes!
b) Only when this time has elapsed is it possible to restart the machine!
ð Failure to observe this requirement may lead to damages to the electronic equip-
ment of the machine, to the PC and to the UPS!
When the switch is ON, the panel will not open!
a) Turn the main switch to the OFF position.
b) Open the control cabinet.
Preparing the electrical connection
ü Preparing for connection:
a) retighten all terminal screws in the control cabinet as they could have loosened
during transport.
b) Compare the local mains voltage and the power frequency with the specifica-
tions on the machine rating plate.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 81/695
