9|Spare and wear parts
9.1.2 Target readers, permitted spare parts
WARNING
Machine malfunctioning is possible!
Personal injury or material damage due to the machine inadequate maintenance and
improper operation!
ü Maintenance work must be performed by trained and qualified staff only.
ü Carry out the maintenance and inspection activities recommended in this instruc-
tion manual.
a) First, read the section "Safety instructions"!
b) Comply with the specified maintenance intervals!
c) Inform the operating staff before servicing!
d) Wear suitable protective clothing for all types of work! Also, check personal pro-
tective equipment for cleanliness and functional efficiency! Do not use damaged
protective equipment, replace it with new items!
e) Before servicing, turn off the machine at the main switch, and secure the latter in
the "OFF" position with a padlock.
f) Lock the main control equipment and remove the key!
g) If service is to be carried out on a hot, ready-to-operate machine, this situation is
dealt with separately in this instruction manual.
h) Use spare parts, replacement parts and wear parts exclusively authorized by the
machine manufacturer!
i) Thoroughly clean the machine before starting work!
j) Re-tighten loosened screws after completing service! Install safety devices and
check for their proper operation!
k) Dispose of operating and auxiliary materials, cleaning agents, and replacement
parts properly and in an environmentally-friendly manner!
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 447/695
9|Spare and wear parts
9.2 Machine frames
9.2.1 Base module 150
1
2324 4

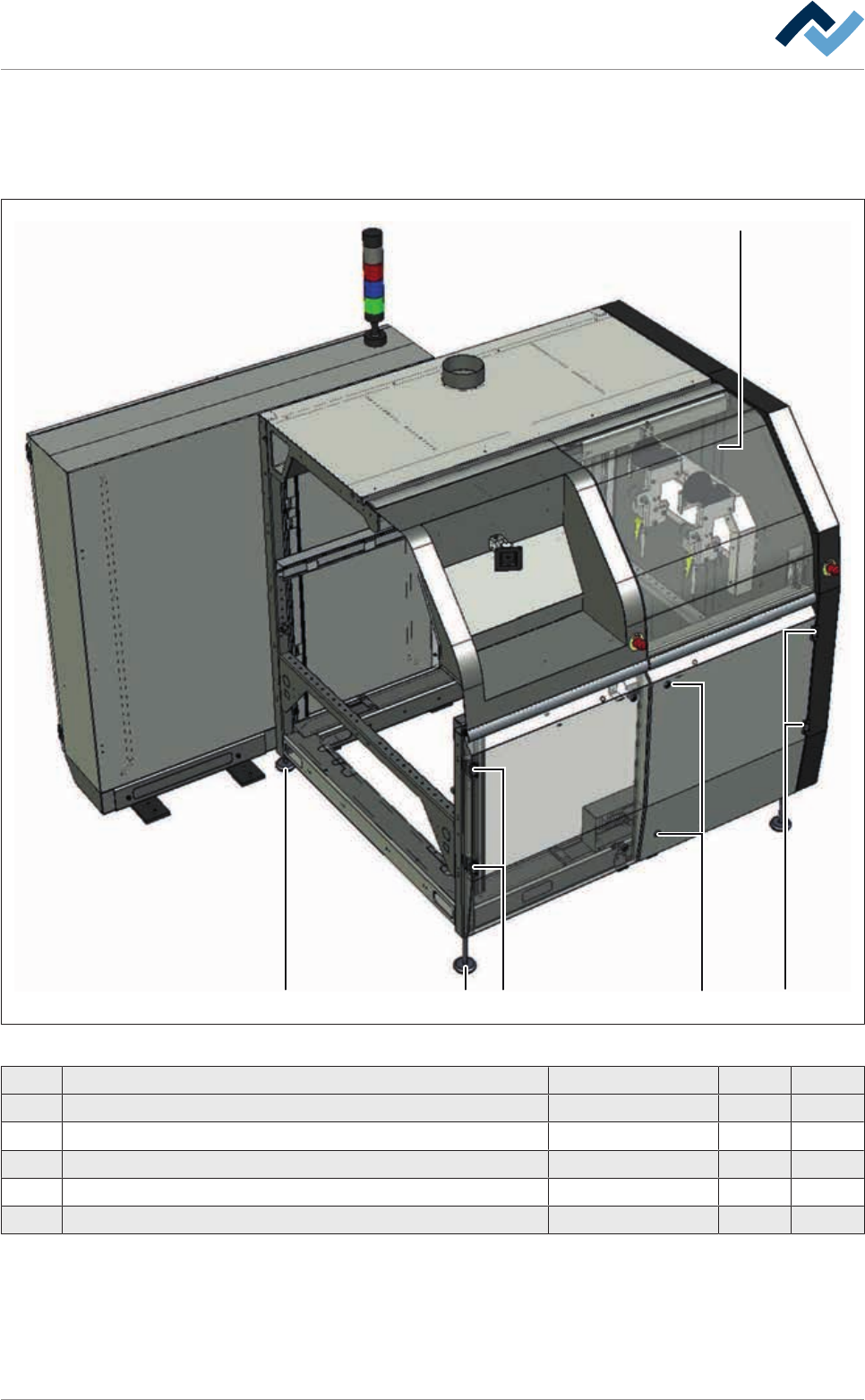

Fig.176: EM113-11-00
Pos Designation Item number A B
1 Safety glass plate module 750 86274 x
2 Hinge EMKA Type 1110 93324 x
3 Lock 6VER2520 x
4 Adjusting foot 6STELLFM16X155 x
5 Key for control cabinet (unpictured) 6VERSCHLÜ2531 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 448/695
9|Spare and wear parts
Base module 150
1

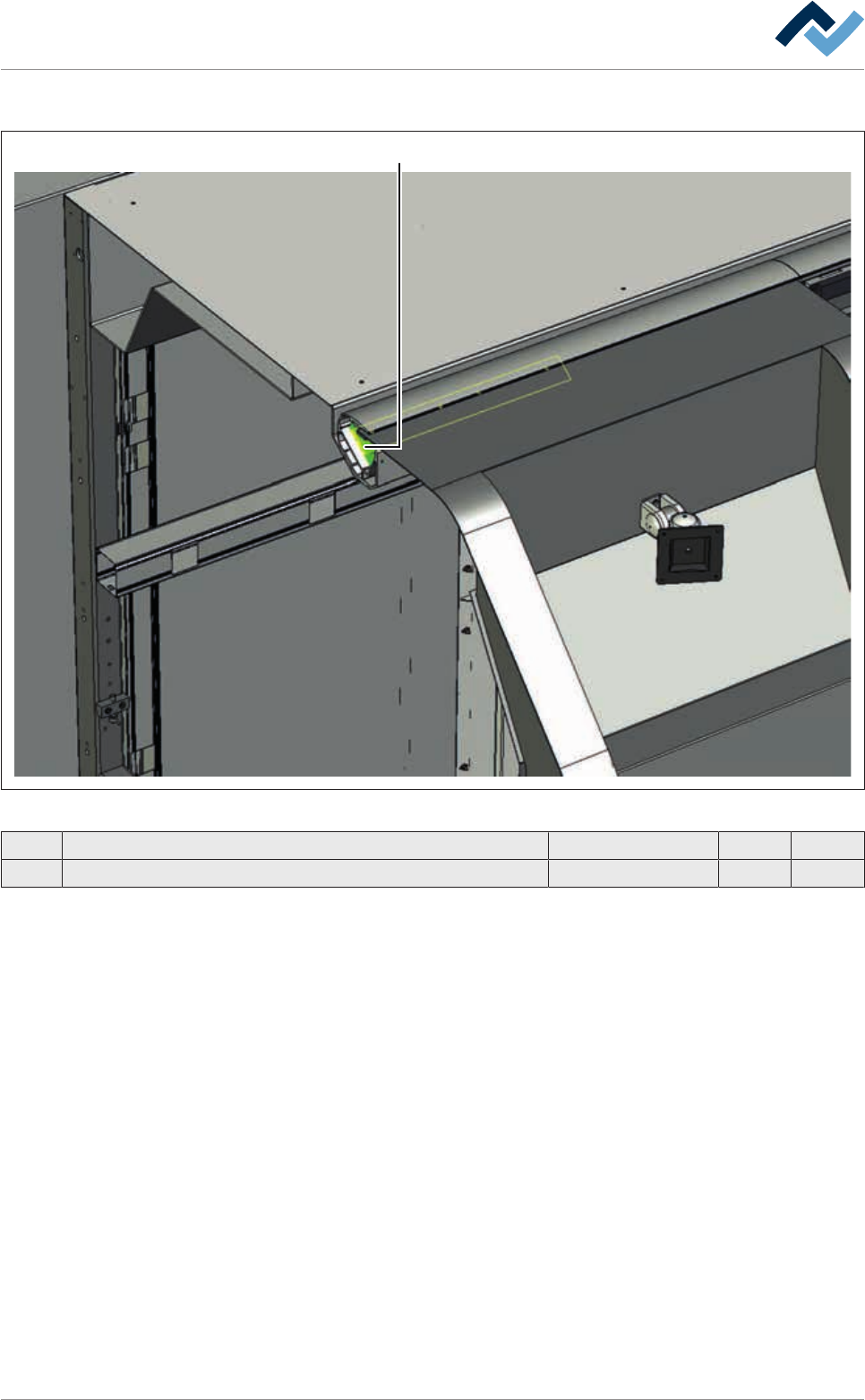

Fig.177: EM113-11-00a
