5-1
Head
Chapter5. Head
5.1. Head Module
5.1.1. Required Tools
T wrench (other tools supplied) or hex wrench
Gear wrench or torque wrench
5.1.2. Head Module Replacement Procedure
1) Manipulate the teaching box to move the head module to the front.
2) Close the PC as usual and turn off the main switch at the front of the machine.
3) Cut off the main pneumatic air supply.
4) Remove the pneumatic tube connected to the head module.

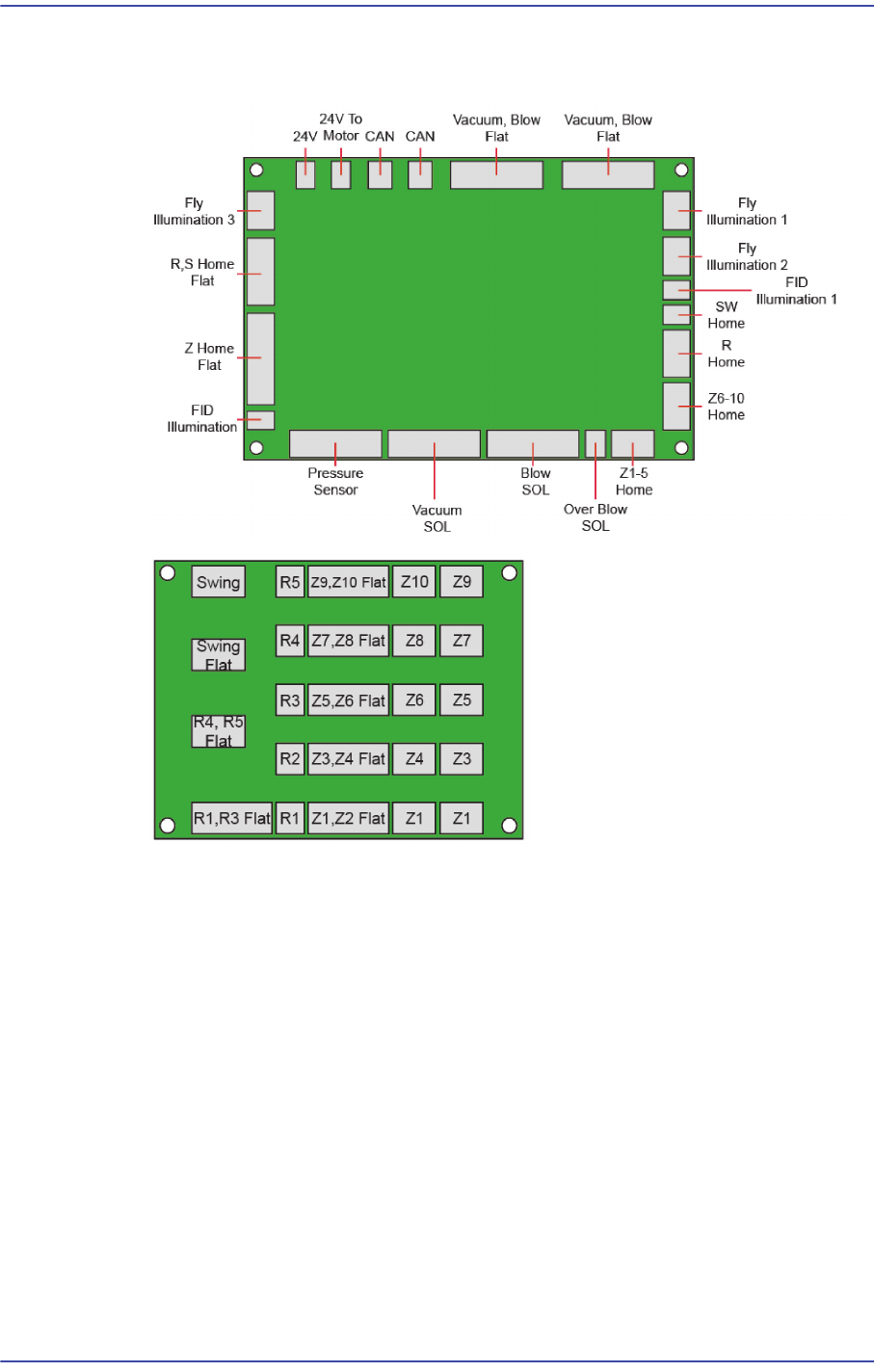

5) Remove the connectors connected to the head module.

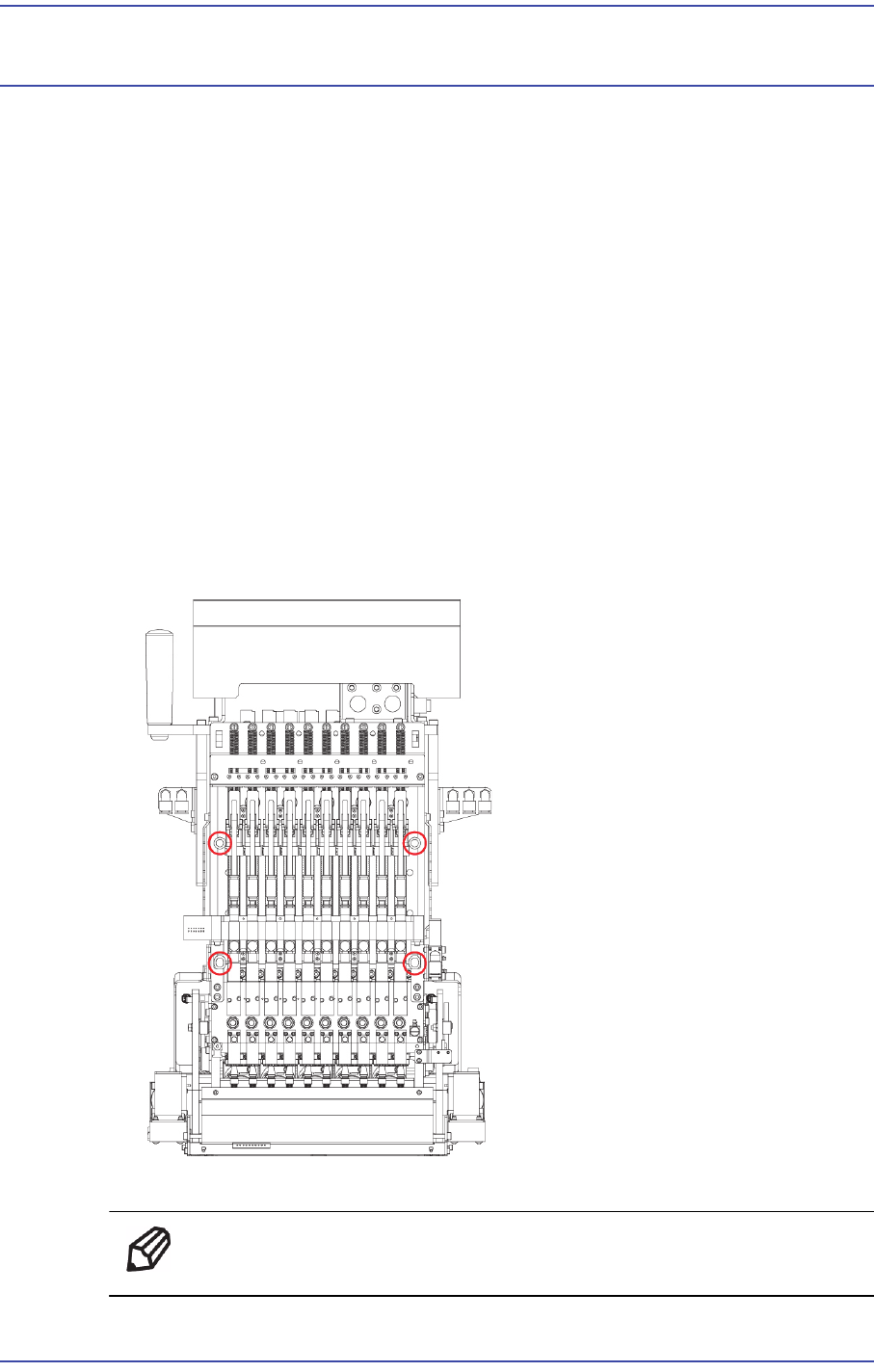

6) Unscrew the fixing bolts securing the Head module and remove it.
7) Replace the Head Module with a new one.
Ref The part number of the new Head Module is AM03-010684A.
5-2
Fast & Flexible Chip Shooter DECAN F2 Service Manual
8) Assemble the head module in the reverse order of disassembling. However, assemble
it paying attention to the following.
9) Once the assembling is completed, turn on the main switch on the front of the machine
and boot the PC.
10) Perform the following calibrations.
Full Calibration
Total Time : 2Hour
