5-22 Fast & Flexible Chip Shooter DECAN F2 Service Manual 5.6. Fiducial Camera 5.6.1. Required Tools  T wrench (other tools supplied) or hex wrench  Gear wrench or torque wrench 5.6.2. Fiducial Camera Replacement P…

5-21

Head

4) Unscrew the fixing bolts(4-M2.5*8) securing Mirror Assy and remove it.

5) Replace the Mirror with a new one.

Ref The part number of the new Mirror is EP12-000030A.

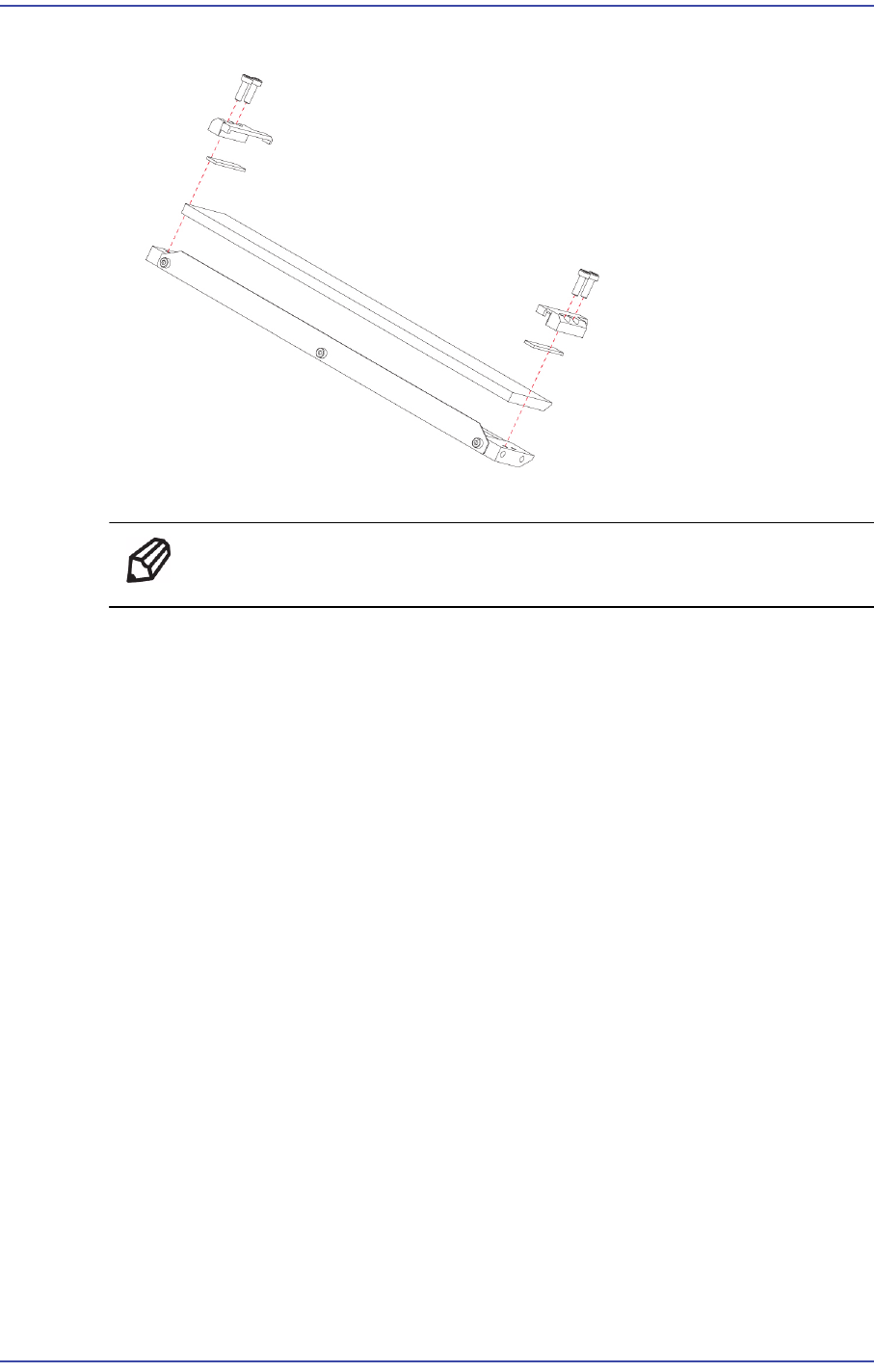

6) When assembling, refer to the following.

Attach the Mirror Cushion to the Mirror Clamp after applying Cushion DP adhesive.

Place the Folding Mirror on the Mirror Plate and assemble Clamps 1 and 2.

However, assemble the mirror by peeling off the mirror protection vinyl only at

the assembling section. After completing assembly, peel off the protection vinyl.

7) Once the assembling is completed, turn on the main switch on the front of the machine

and boot the PC.

8) Perform the following calibrations.

Camera Offset Calibration

Head Z & R Offset calibration

Light Mapping

Total Time: 0.5Hour

5-22

Fast & Flexible Chip Shooter DECAN F2 Service Manual

5.6. Fiducial Camera

5.6.1. Required Tools

 T wrench (other tools supplied) or hex wrench

 Gear wrench or torque wrench

5.6.2. Fiducial Camera Replacement Procedure

1) Manipulate the teaching box to move the head module to the front.

2) Close the PC as usual and turn off the main switch at the front of the machine.

3) Remove the connectors connected to camera.

4) Remove the connectors.

5) Unscrew the Set Screw(3-M3*20) securing the Fiducial Camera and remove its.

5-23

Head

6) The fiducial camera assembly can be disassembled in the following manner.
