10-12 Fast & Flexible Chip Shooter DECAN F2 Service Manual 3) Unscrew the fixing bolts(2-M3* 6) securing the Sensor using a wren ch and remove it. 4) Assemble in the Y Fame a new Sensor . Ref The part number of the n…

10-11

Y-Axis Frame

10.3. Sensor

10.3.1. Required Tools

 T Wrench (other tools supplied) or Hex Wrench

 Torque Wrench

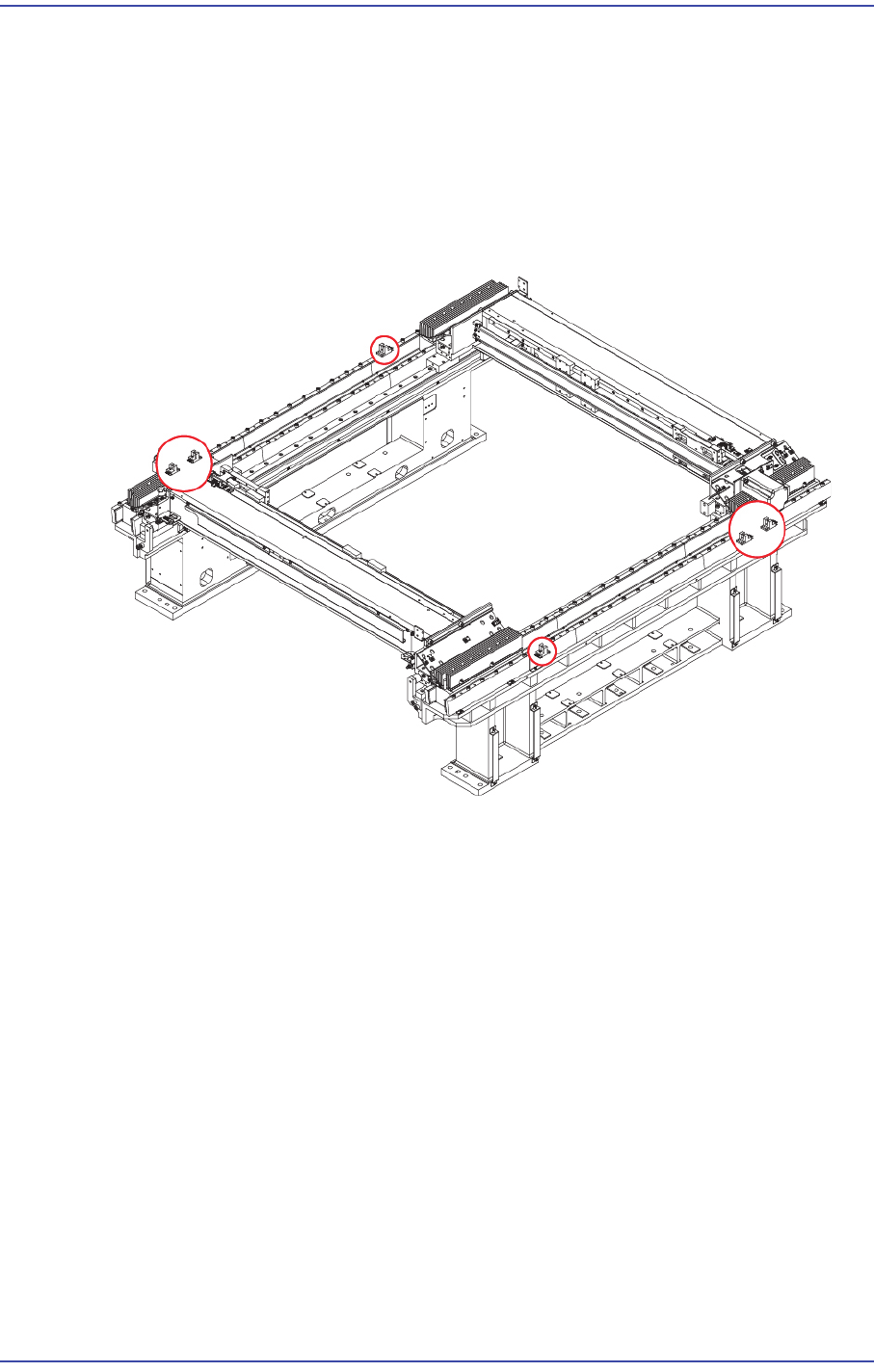

10.3.2. Location of Sensor

10.3.3. Sensor Replacement Procedure

1) Close the PC as usual and turn off the main switch at the front of the machine.

2) Remove the power of Motor and encoder cable connector.

10-12

Fast & Flexible Chip Shooter DECAN F2 Service Manual

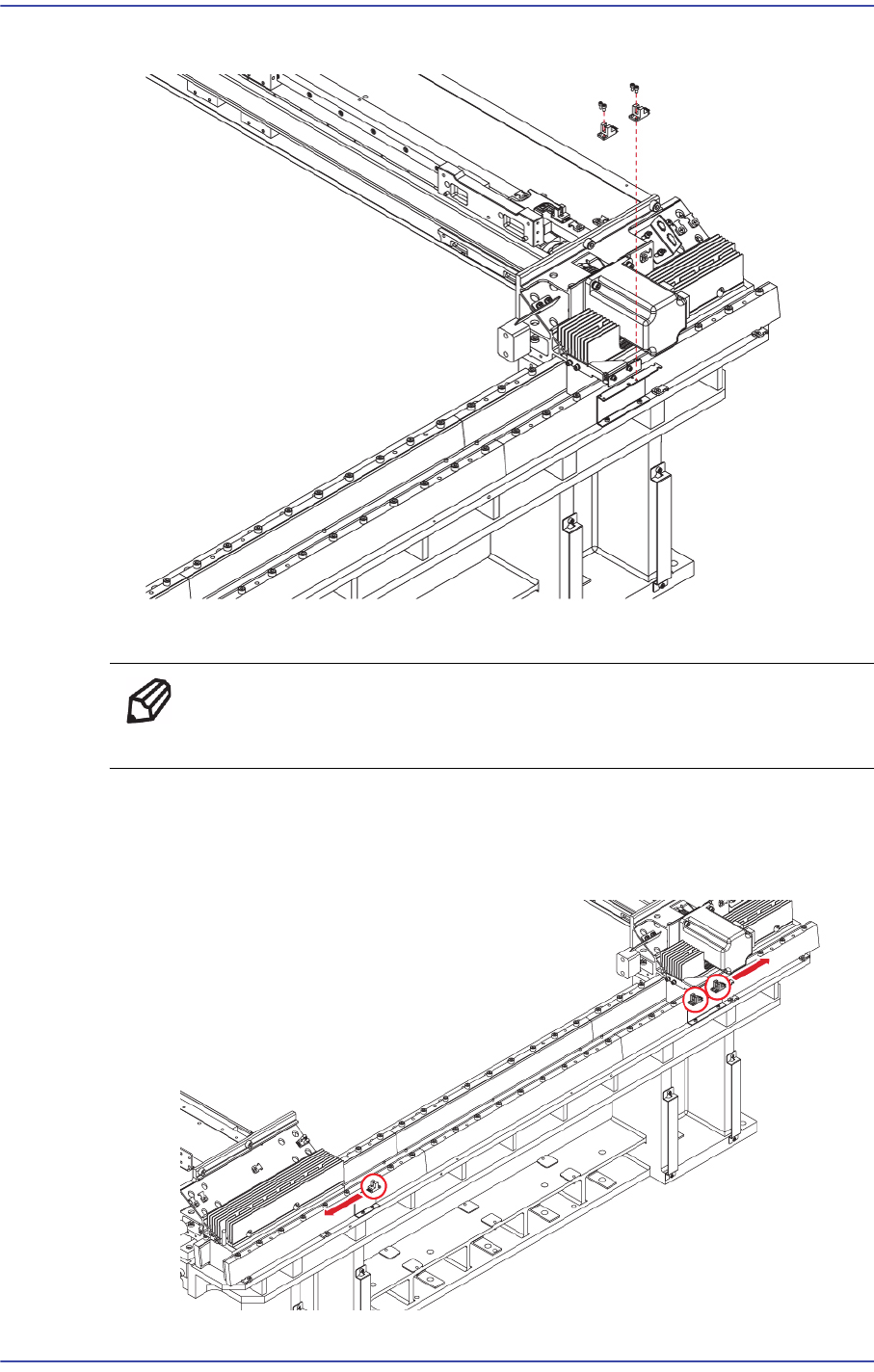

3) Unscrew the fixing bolts(2-M3*6) securing the Sensor using a wrench and remove it.

4) Assemble in the Y Fame a new Sensor.

Ref The part number of the new Sensor is J3212022A.

5) When assembling the Sensor, refer to the following.

When assembling the sensor, have the sensor connector facing in the direction as

shown in the following figure and secure it with cable ties.

10-13

Y-Axis Frame

6) Perform the following calibrations.

Axis Home Calibration

Common X-Y (1'st)

Thermal Mapping

Gantry Mapping

ANC, Position Teaching

Time: 0.8 hour
