14-14
Fast & Flexible Chip Shooter DECAN F2 Service Manual

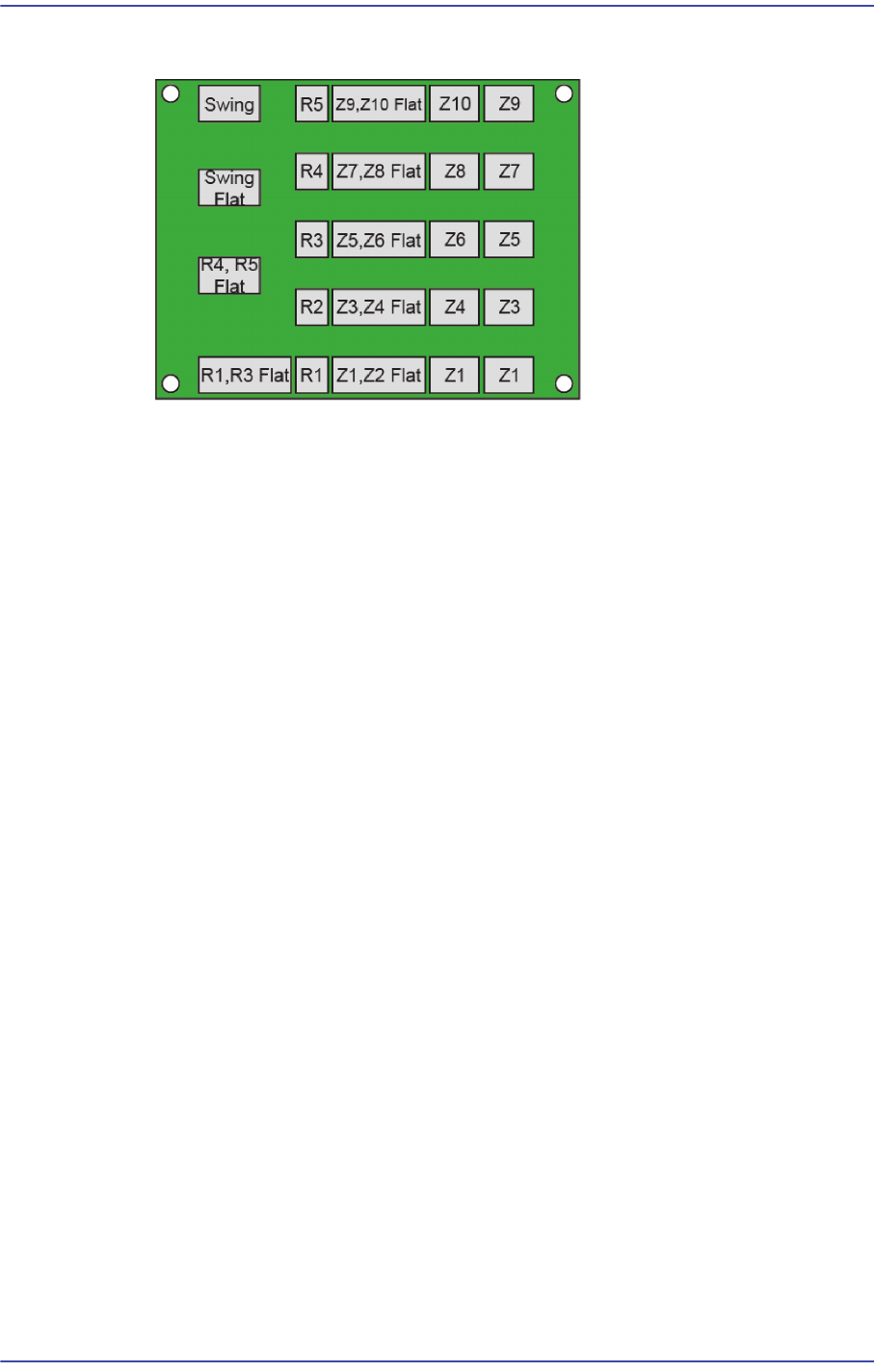

7) When assembling the board, connect the cables referring to the following figure.
14-15
Board
14.3. Y Frame Duct
14.3.1. Required Tools
Crosshead (Phillips) screwdriver and flathead screwdriver
T Wrench or Hex Wrench
Nipper (Remove the Cable Tie)
14.3.2. Z Motor AMP Board Replacement Procedure
1) Close the PC as usual and turn off the main switch at the front of the machine.
2) Turn off the main power supply to the machine.
Warning Before servicing the machine, turn off the power switch
located at the front bottom as well as the main circuit
breaker at the rear bottom of the machine. Otherwise,
serious personal injury may occur. Perform servicing with
the power supply to the machine cut off without fail.
Warning Be sure to wear anti-electrostatic gloves when servicing the
machine.

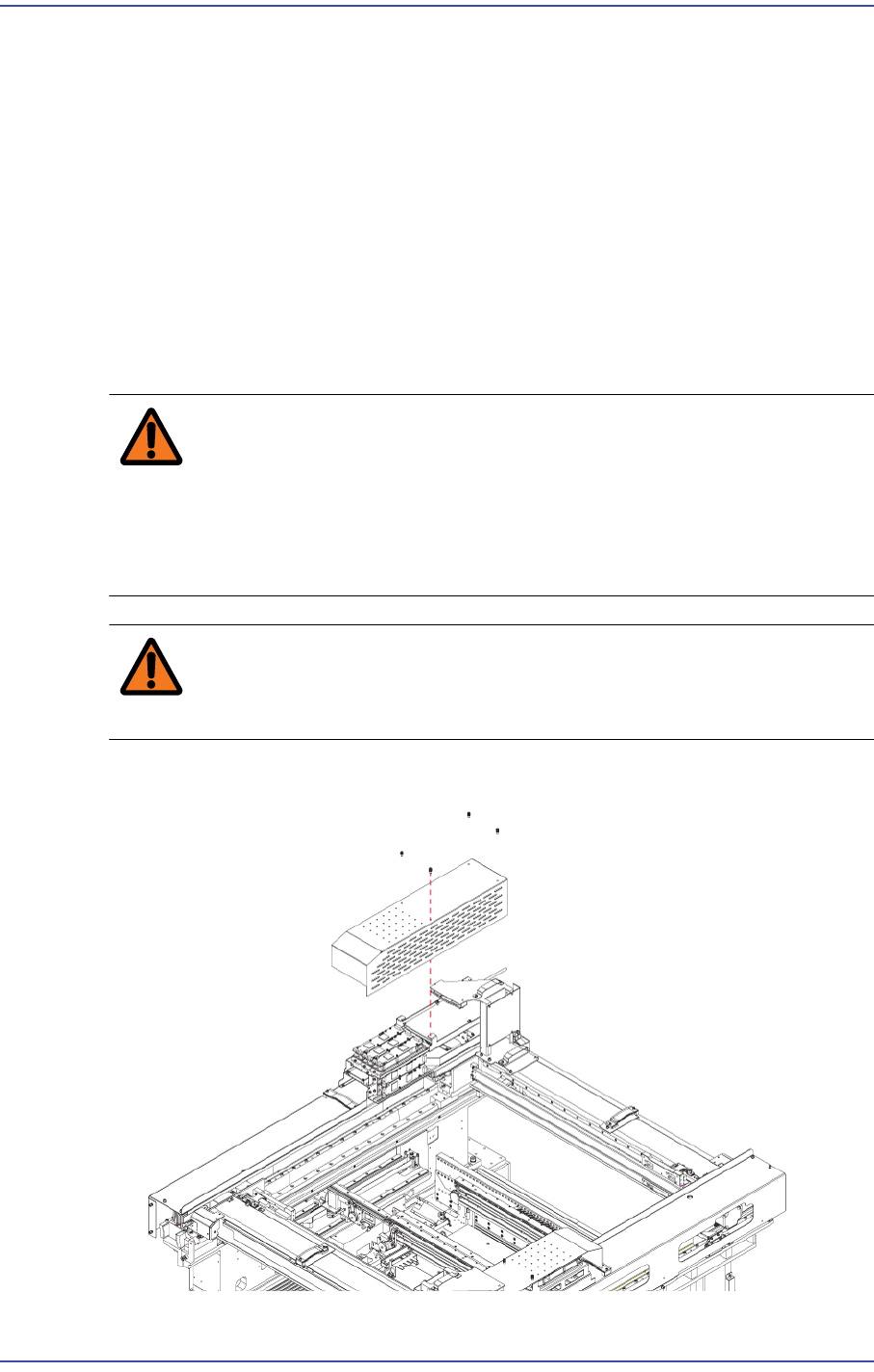

3) Unscrew the Fastener securing the Cover Driver Y using a wrench and remove it.
4) Remove the cable connected to the board.
14-16
Fast & Flexible Chip Shooter DECAN F2 Service Manual

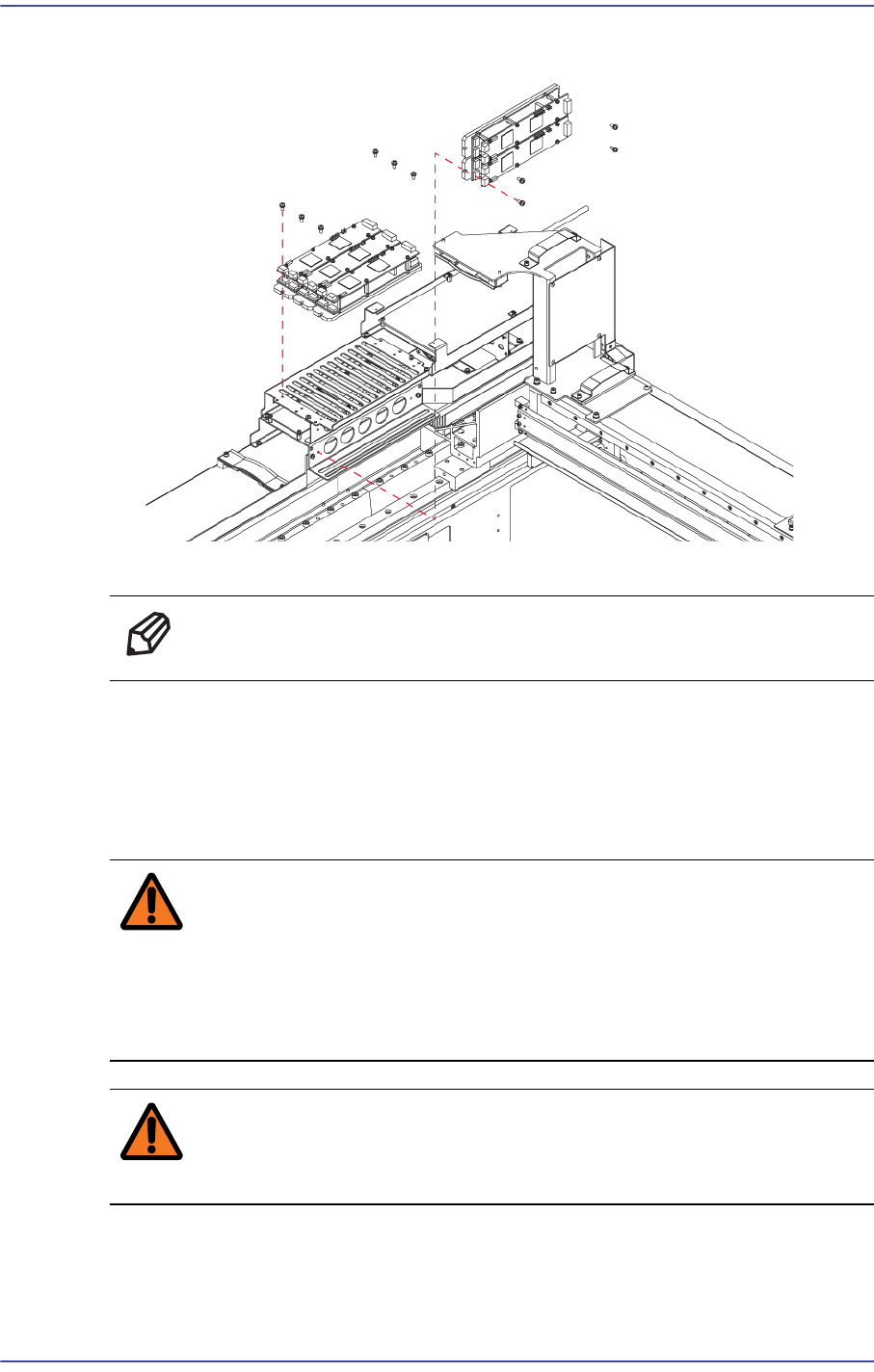

5) Unscrew the fixing bolts(M4*10) securing the Board using a wrench and remove it.
6) Assemble in the Y Fame Duct a new Board.
Ref The part number of the new Board is AM03-005372A.
14.3.3. Step Driver Replacement Procedure
1) Close the PC as usual and turn off the main switch at the front of the machine.
2) Turn off the main power supply to the machine.
Warning Before servicing the machine, turn off the power switch
located at the front bottom as well as the main circuit
breaker at the rear bottom of the machine. Otherwise,
serious personal injury may occur. Perform servicing with
the power supply to the machine cut off without fail.
Warning Be sure to wear anti-electrostatic gloves when servicing the
machine.
3) Unscrew the Fastener securing the Cover Driver Y using a wrench and remove it.
