5.8. R Axis Motor / Belt / Sensor

5.8.1. Required Tools

 T wrench (other tools supplied) or hex wrench

 Gear wrench or torque wrench

5.8.2. Motor Replacement Procedure

1) Manipulate the teaching box to move the head module to the front.

2) Close the PC as usual and turn off the main switch at the front of the machine.

3) In order to secure the work space, remove the illumination section referring to the

illumination section replacement procedure.

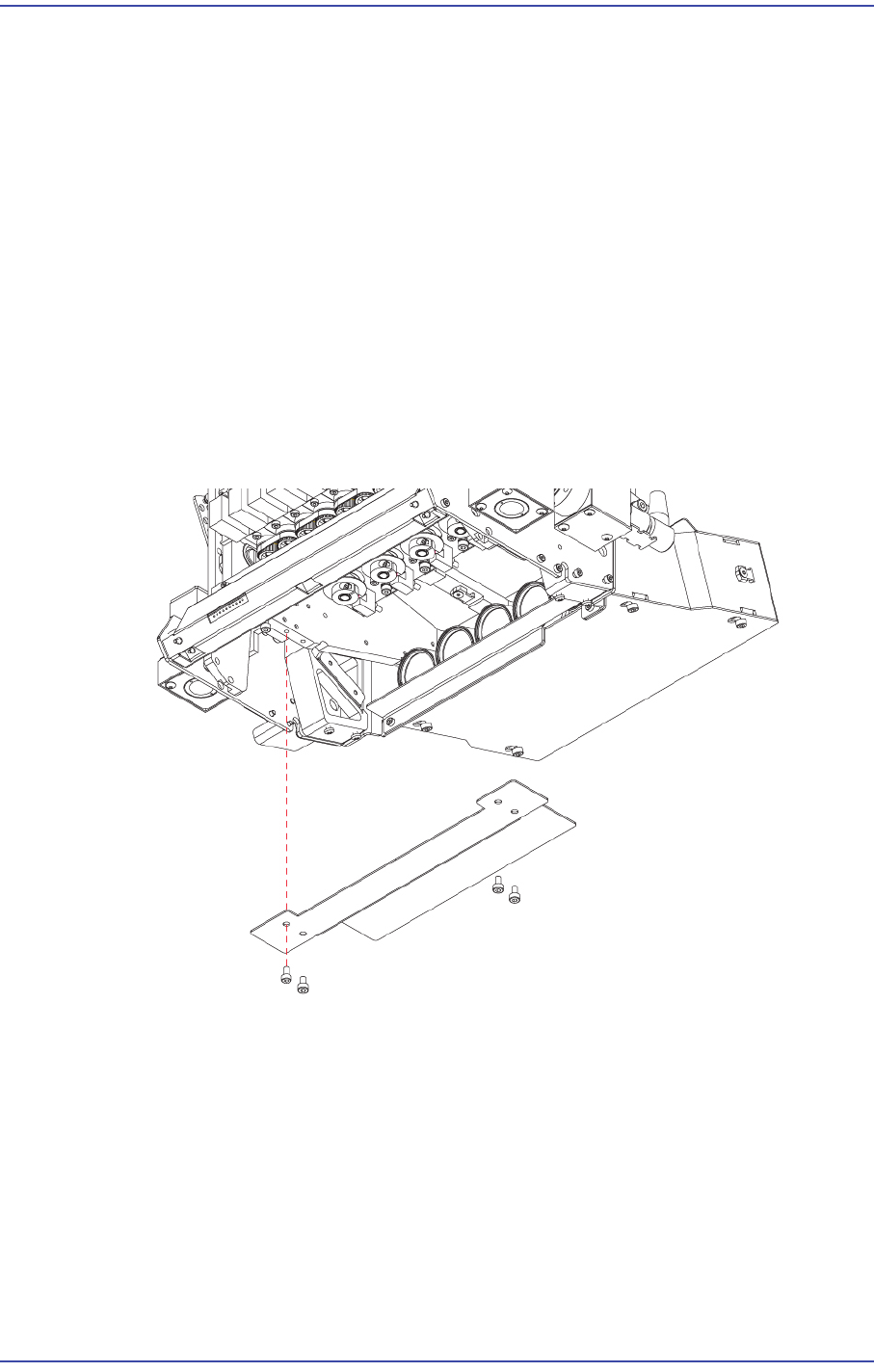

4) Unscrew the fixing bolts(4-M3*6) securing the light cover using a hex wrench and

remove it.

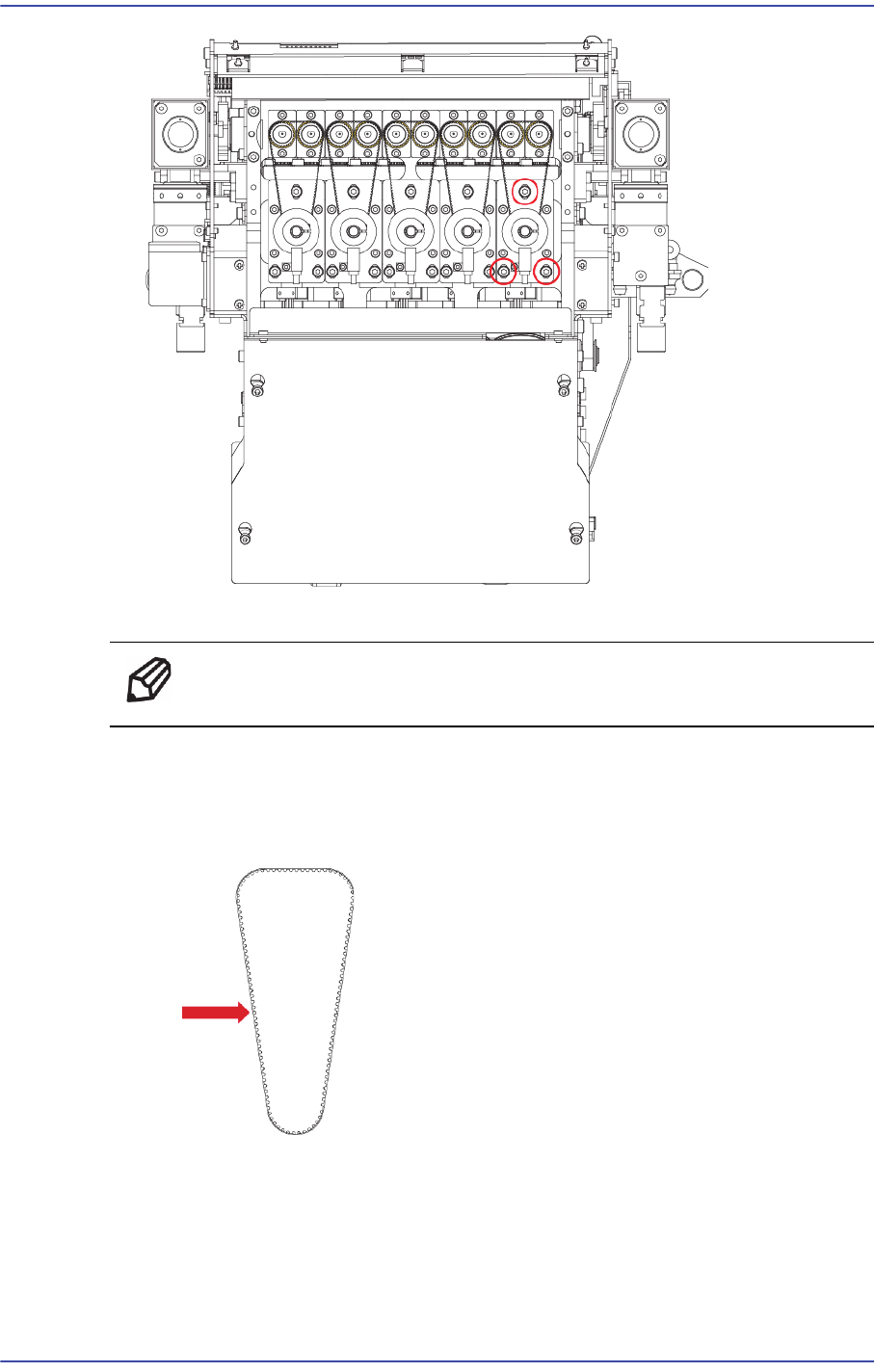

5) Unscrew the fixing bolts(3-M3*6) securing motor plate using a hex wrench and

remove it.

5-30

Fast & Flexible Chip Shooter DECAN F2 Service Manual

6) When replacing the timing belt, replace the belt with a new one.

Ref The part number of the new belt is J66021183A.

7) When assembling, refer to the following.

Belt Tension : 409~467Hz

Measurement Position :

8) When replacing the sensor, unscrew the fixing bolts(2-M2*6) securing the sensor and

remove it.
