Fast & Flexible Chip Shooter DECAN F2 Service Manual

11.3. Main Manifold Sub

11.3.1. Configuration of the Manifold

1: J67121002A / PLUG / PLUG KQ2P-10 / 1EA

2: HP06-000226 / FITTING / KQ2R10-12 / 1EA

3: HP09-000007 / MANIFOLD / KM11-08-12-10 / 1EA

4: J6711183A / STRAIGHT FITTING / KQ2R06-08 / 5EA

5: J67121009A / PLUG / PLUG KQ2P-08 / 3EA

11-15

Vacuum

11.4. Air Front Panel

11.4.1. Configuration of the Air Front Panel

1: FC09-003398A / FRONT AIR PANEL / 1EA

2: J67090012B / REGULATOR / 1EA

3: J1301187 / ELBOW FITTING / 2EA

4: J6711183A / ELBOW_MINI_FITTING / 1EA

5: AM03-008872A / AIR INDICATOR CABLE ASSY /1EA

6: J61191167A / FITTING / 1EA

7: J67091014A / REGULATOR / 1EA

8: J61191172A / GAUGE / 1EA

9: J67111194A / UNION_Y_FITTING / 1EA

10: J6713016A / AIR TUBE / 1EA

11: J6713034A / AIR TUBE / 1EA

11-16

Fast & Flexible Chip Shooter DECAN F2 Service Manual

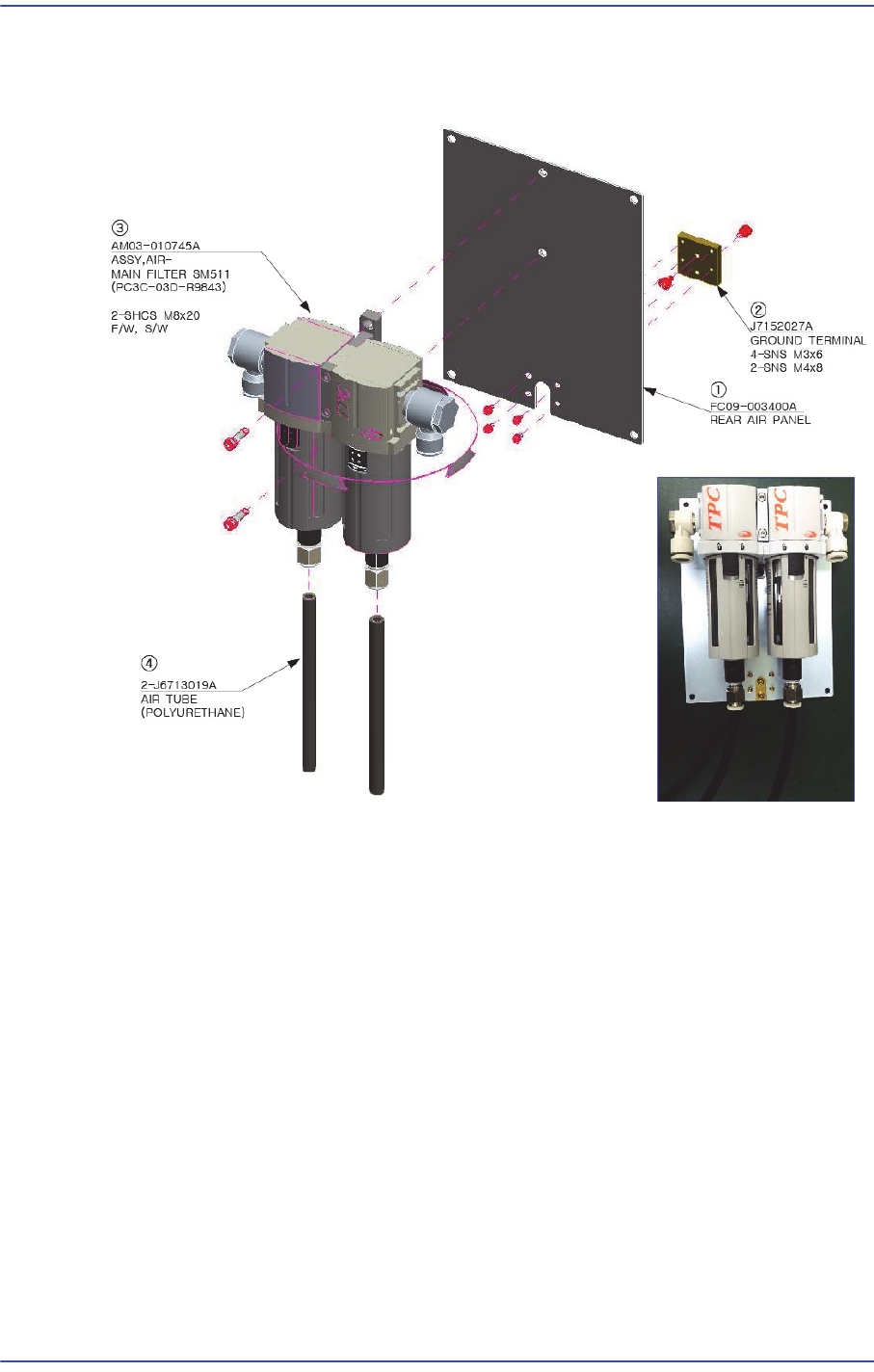

11.5. Filter Assy

11.5.1. Configuration of the Filter Assy

1: FC09-003400A / REAR AIR PANE / 1EA

2: J7152027A / GROUND TERMINAL / 1EA

3: AM03-010745A / ASSY,AIR-MAIN FILTER SM511 / 1EA

4: J6713019A / AIR TUBE / 2EA
