18-44 Fast & Flexible Chip Shooter DECAN F2 Service Manual 18.3.9. ANC Pos. Scan T each the 2 fiducial marks on the top surface of the ANC. Compensate the relative coordinate system o f the front and rear ANCs. Refer…
18-43
Machine Calibration
18-44
Fast & Flexible Chip Shooter DECAN F2 Service Manual

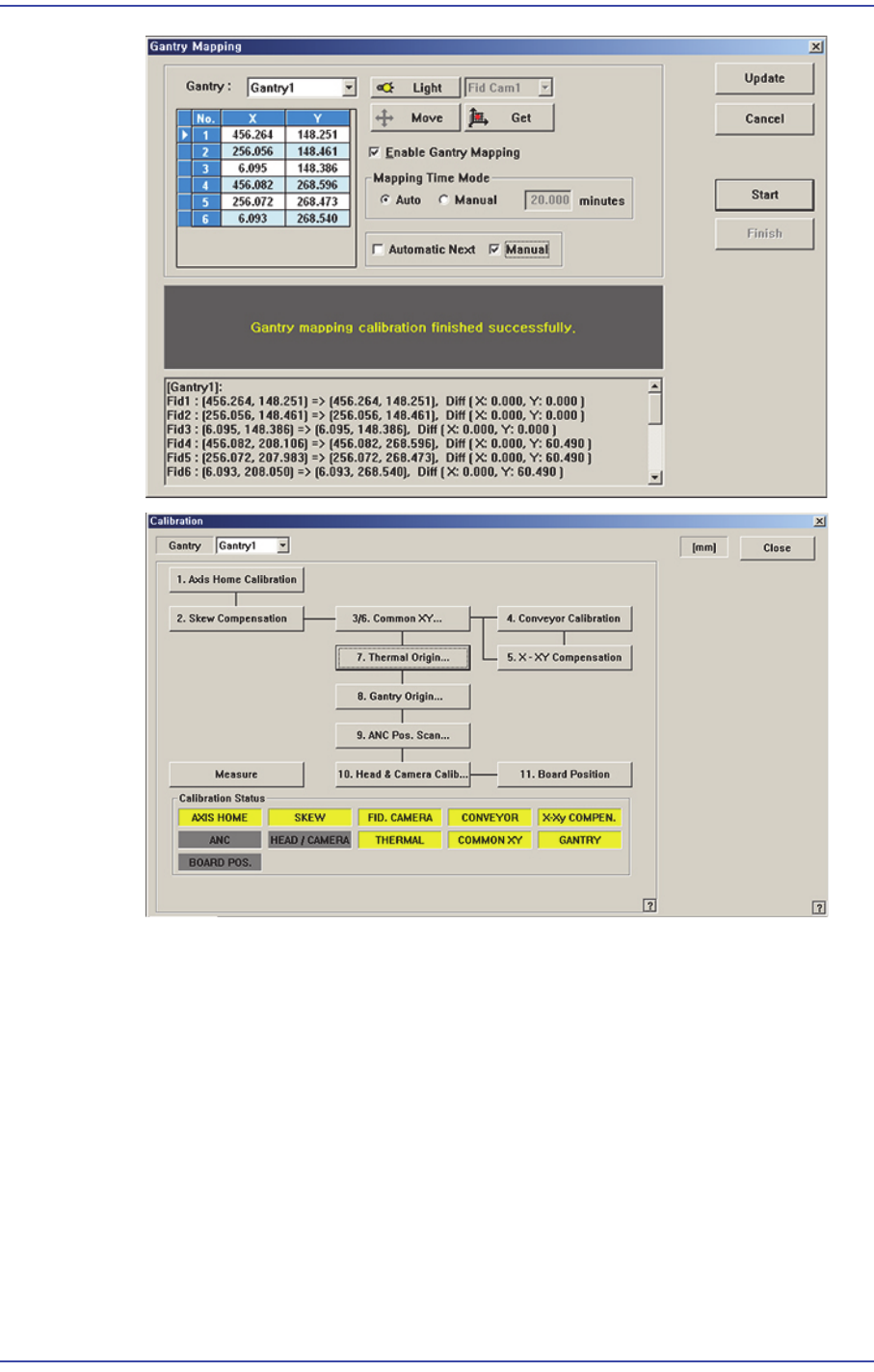

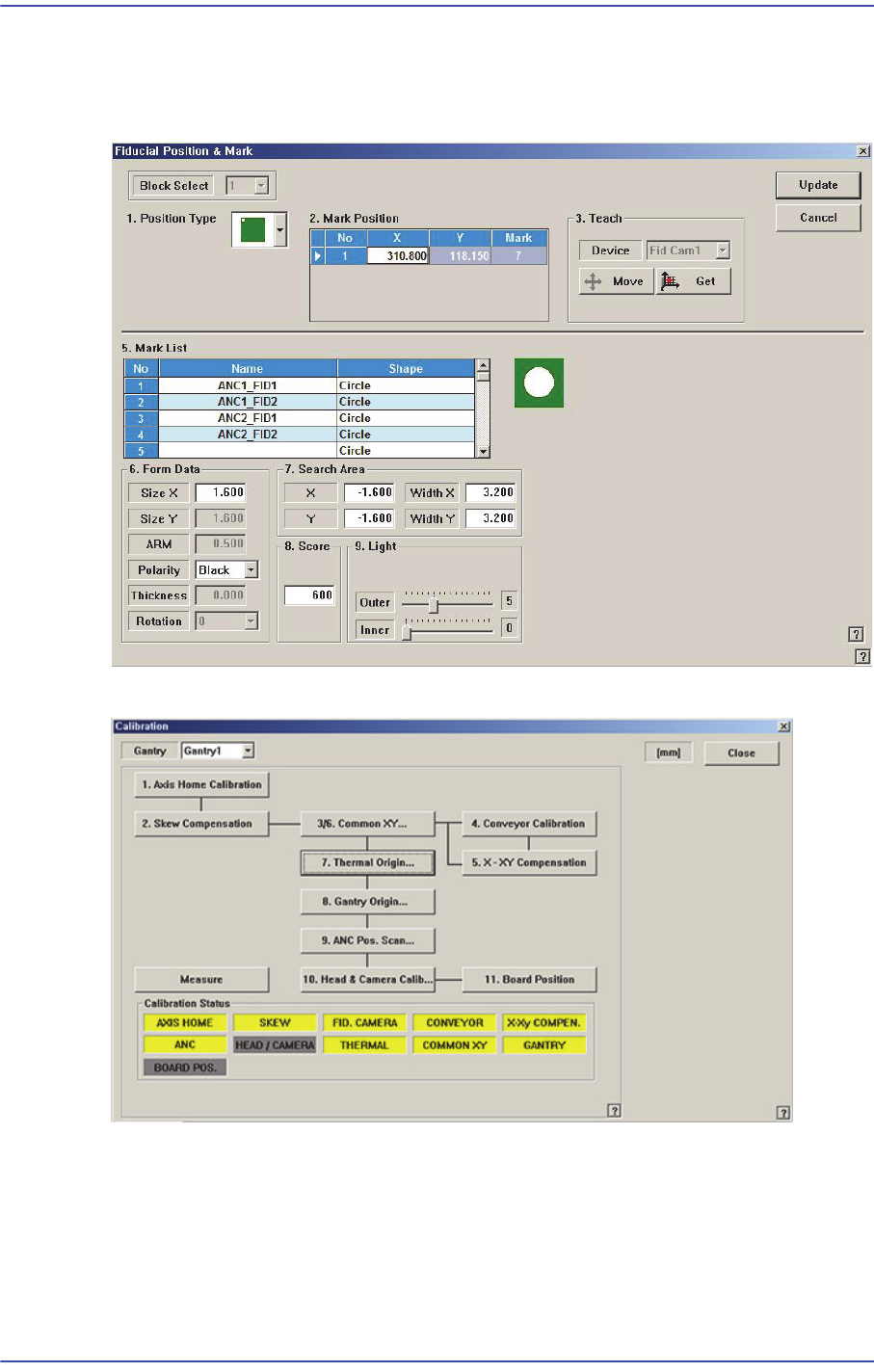

18.3.9. ANC Pos. Scan
Teach the 2 fiducial marks on the top surface of the ANC. Compensate the relative
coordinate system of the front and rear ANCs.
Refer to “6.3 Fiducial Mark Setup”for more information.
18-45
Machine Calibration
18.3.10. Head & Camera Calibration
Perform the camera calibration function. The calibration sequence and tools necessary for
calibration are as follows.
Fiducial Camera Offset Calibration (Calibration Tool)
Head Z & R Offset Calibration (CN040 Nozzle)
Light Mapping (Light Fly Nozzle)
Head Offset Calibration
Fly Camera Scale & Rotation Calibration
Fly Camera Offset Calibration
Fly To Fix Offset Calibration
R-Axis Offset Calibration

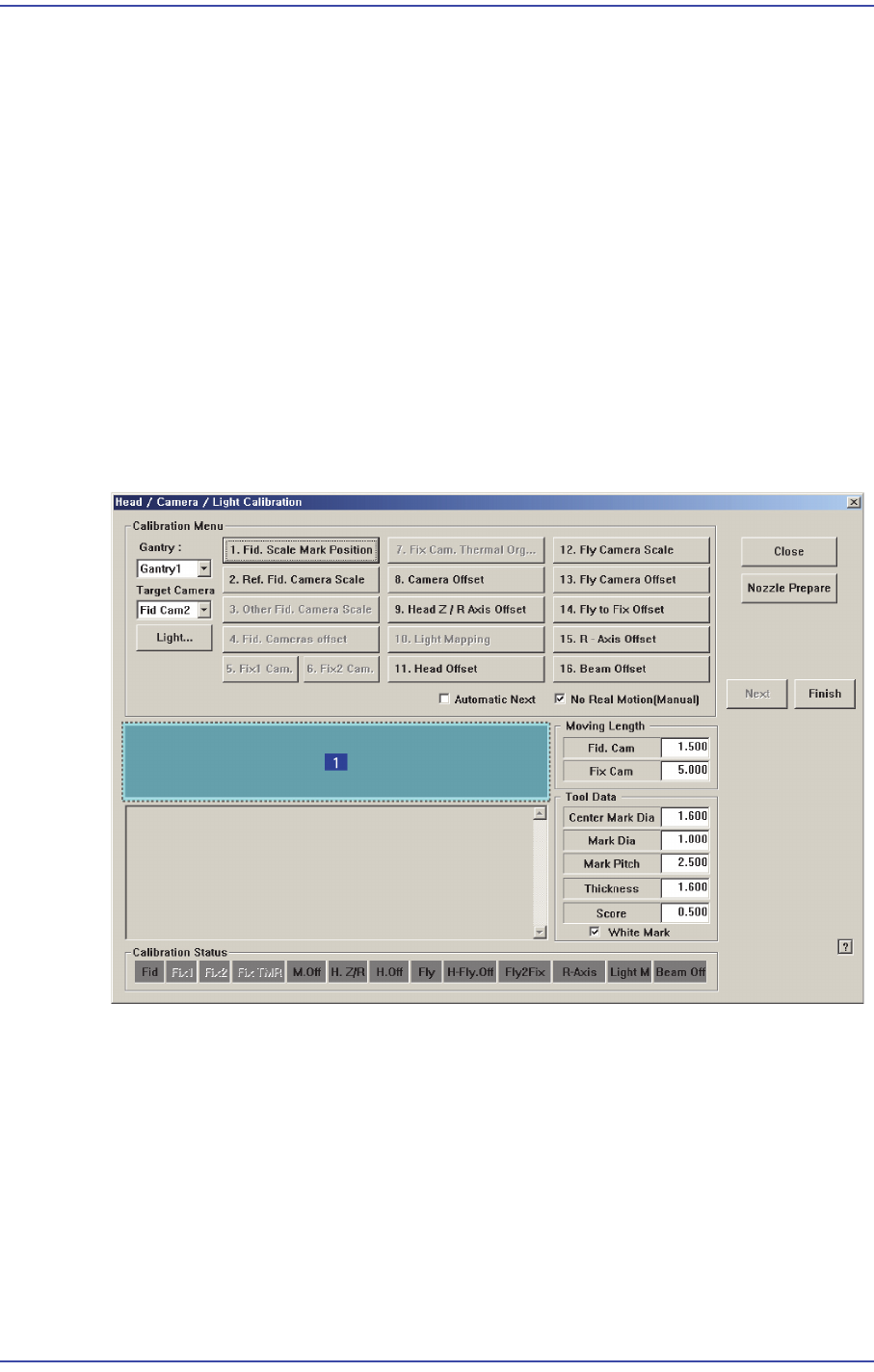

Figure18.15 “Head/ Camera/ Light Calibration” dialog box
1: Head/ Camera/ Light Calibration” dialog box
<Calibration Menu> group
Select an item to be calibrated. If you click the button of a specific item, the
description on the works to be performed are displayed in the message box in order.
Follow the instructions to complete the calibration.
<Gantry> combo box
Select the Gantry for performing Calibration
<Target Camera> combo box
