18-51
Machine Calibration
6. Press <Update> button to apply the calibration result to the machine
Memo The reference values for the Z-offset are as follows.
Head1~ Head6: -1.5 ~ 1.5 mm
If the Z offset value exceeds this range, it means that the head has a
serious problem. Therefore, check for the home location, spindle,
LM, and verify if the motor operates normally.
The following is the procedure to perform the ‘R-Offset Calibration’.

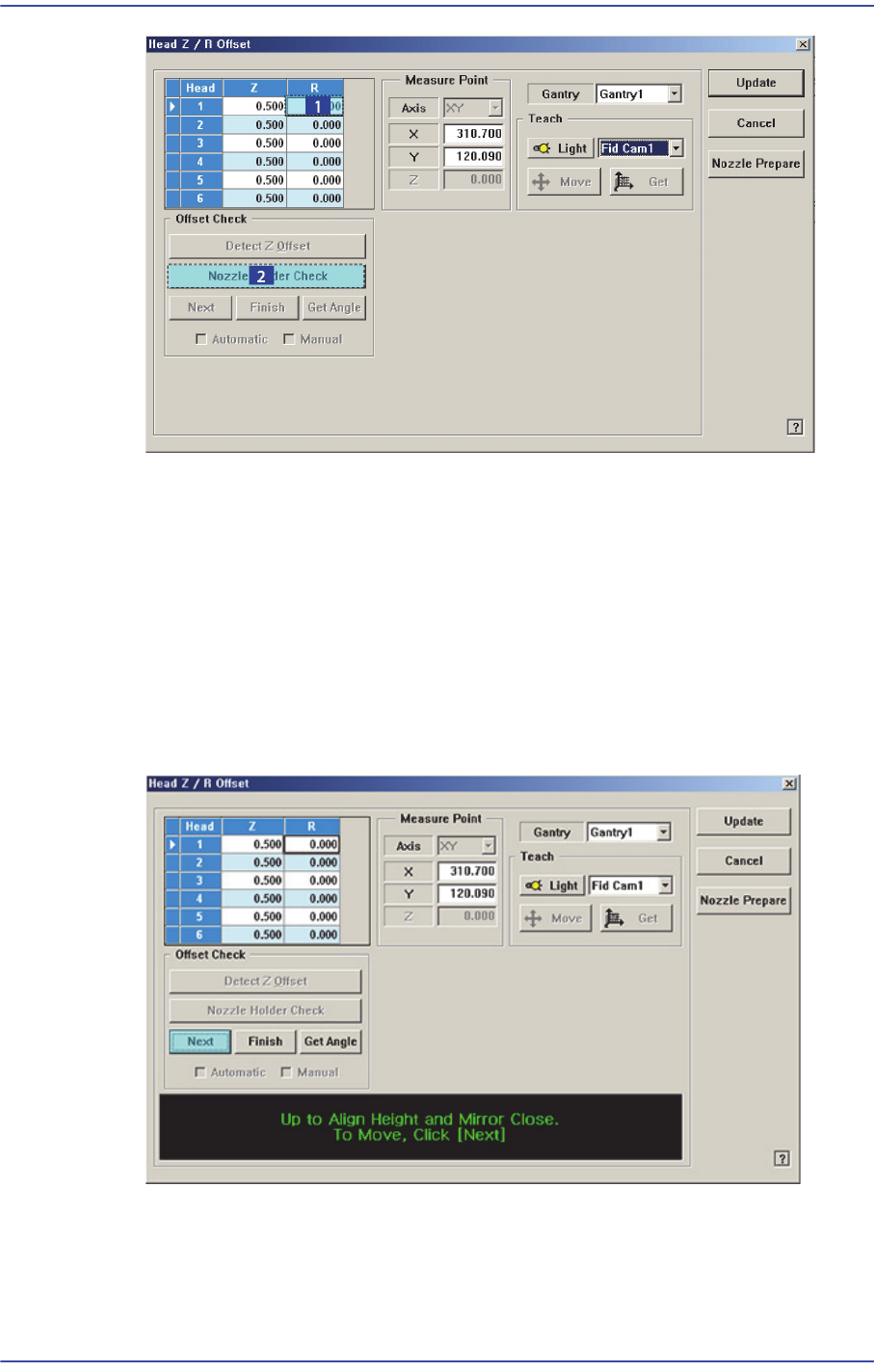

1. In the <Grid> area, input “0” for all R-axis values of the heads for which the
calibration is to be performed.
2. In the <Grid> group, select the R-axis for which the calibration is to be performed and
click the <Nozzle Holder Check> button.
18-52
Fast & Flexible Chip Shooter DECAN F2 Service Manual
3. Then the message “Please Check and Register Nozzle CNT0 to ANC 1-2 Hole. First,
We must Put all Nozzles from Heads manually. To Moving Down Z Axis, Click
[Next]” appears in the message window.Remove all nozzles inserted in the nozzle-
holder manually by clicking the <Next> button. At this time, for the ANC, the virtual
nozzle CNT0 is set for the No. 1 hole of the ANC and it is regarded that the
corresponding head picked the CNT0 nozzle.
4. Then the message “Up to Align Height and Mirror Close. To Move, Click [Next].”
appears. Then move the spindle to the part recognition height so that the nozzle holder
of the head can be seen from the fly camera and click the <Next> button to close the
mirror.

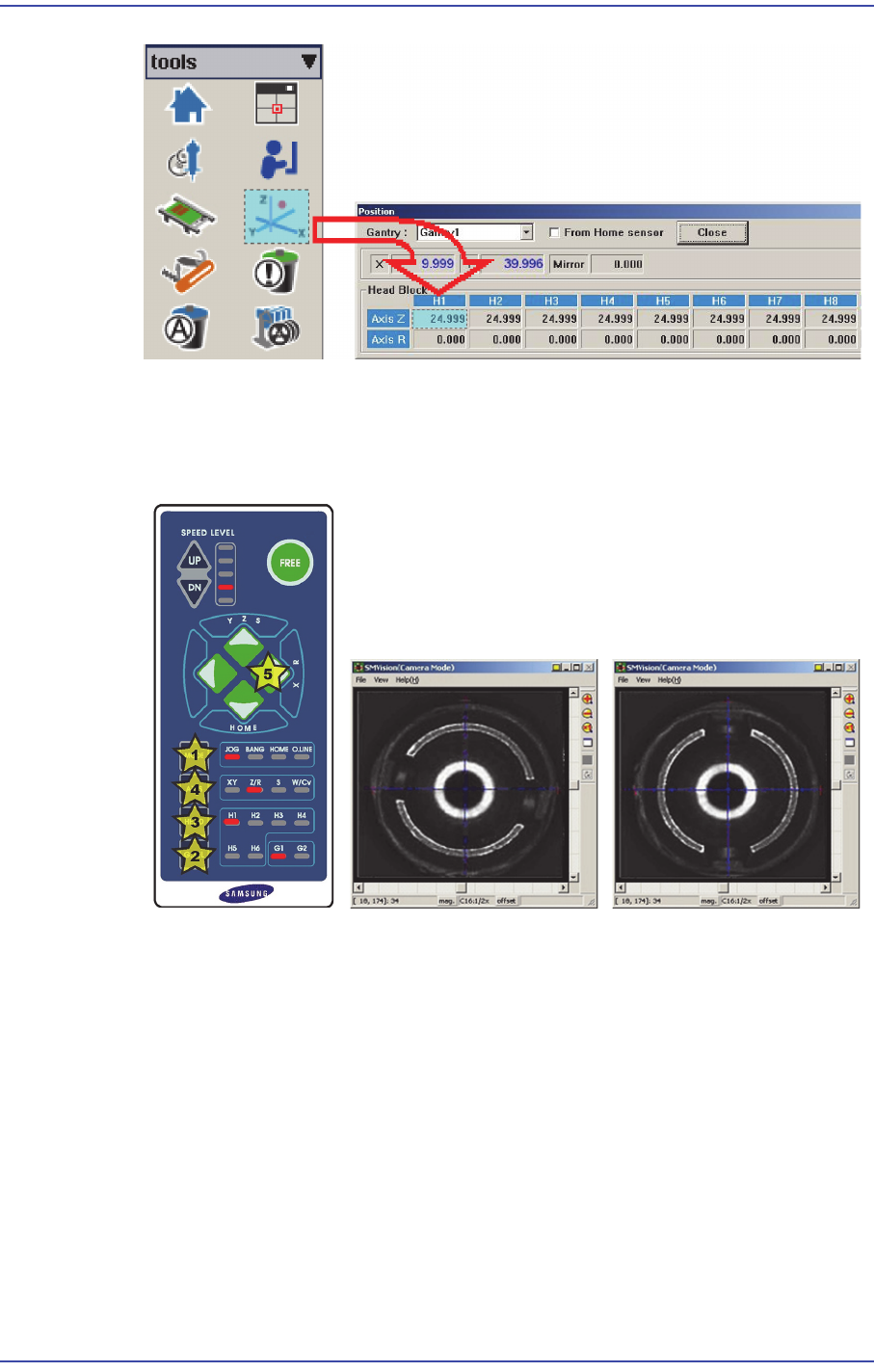

5. Execute the ‘Current Position’ dialog box by clicking the shortcut menu.
18-53
Machine Calibration
6. Rotate the spindle in the R-direction by using the teaching box so that the shape of the
nozzle holder becomes ‘( )’. At this time, the nozzle holders of the heads with
interlocked mechanism must be assembled in the same direction.
That is, the mechanisms of the #1~#2 heads and #3~#4 heads, #5~#6 heads, #7~#8
heads, #9~#10 heads must be assembled first in the same direction by using the jig for
a nozzle holder.
7. At this time, input the current position value of the R-axis and click the <Update>
button.
