7-5 ANC 3) Leave the shutter open and check the det ection range by checki ng if the sensor is turned on/of f while moving the ‘Open’ detection sensor . (Upper side sensor) Ref Assemble the sensor by movi ng it by 1mm to…
7-4
Fast & Flexible Chip Shooter DECAN F2 Service Manual
7.3. ANC Shutter
7.3.1. Shutter Speed Adjustment

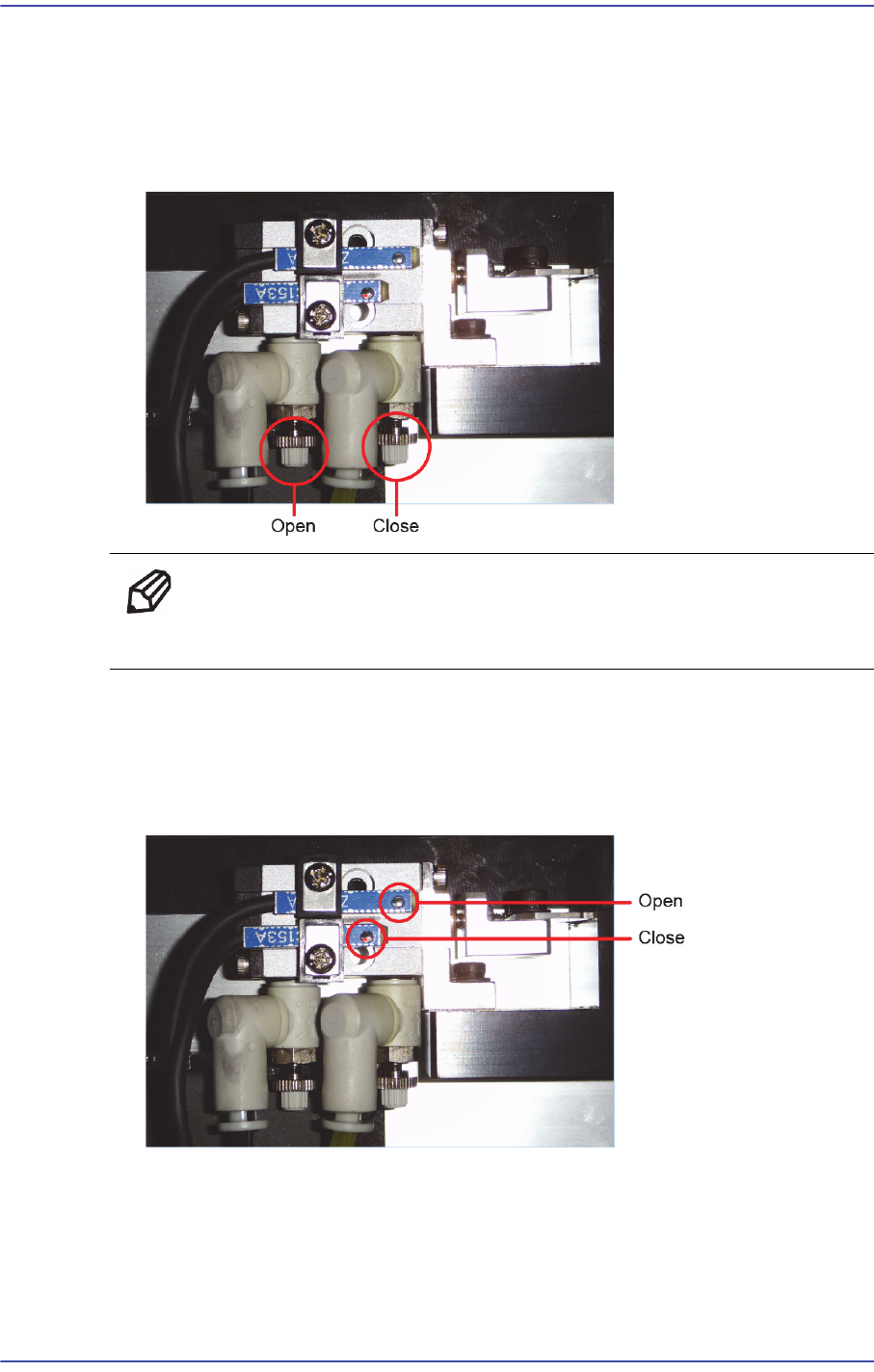

1) Adjust the speed controller to control the closing and opening speed of the shutter
while moving the shutter.
Ref Turning the speed controller clockwise will reduce the speed and
turning it counterclockwise will increase the speed.
7.3.2. Assembly and method of operation check Shutter Sensor
1) Leave the shutter closed and check the detection range by checking if the sensor is
turned on/off while moving the ‘Close’ detection sensor. (Lower side sensor)
2) Assemble the sensor by moving it by 1mm to the left from the right end of the ‘Close’
detection sensor within the detection range.
7-5
ANC

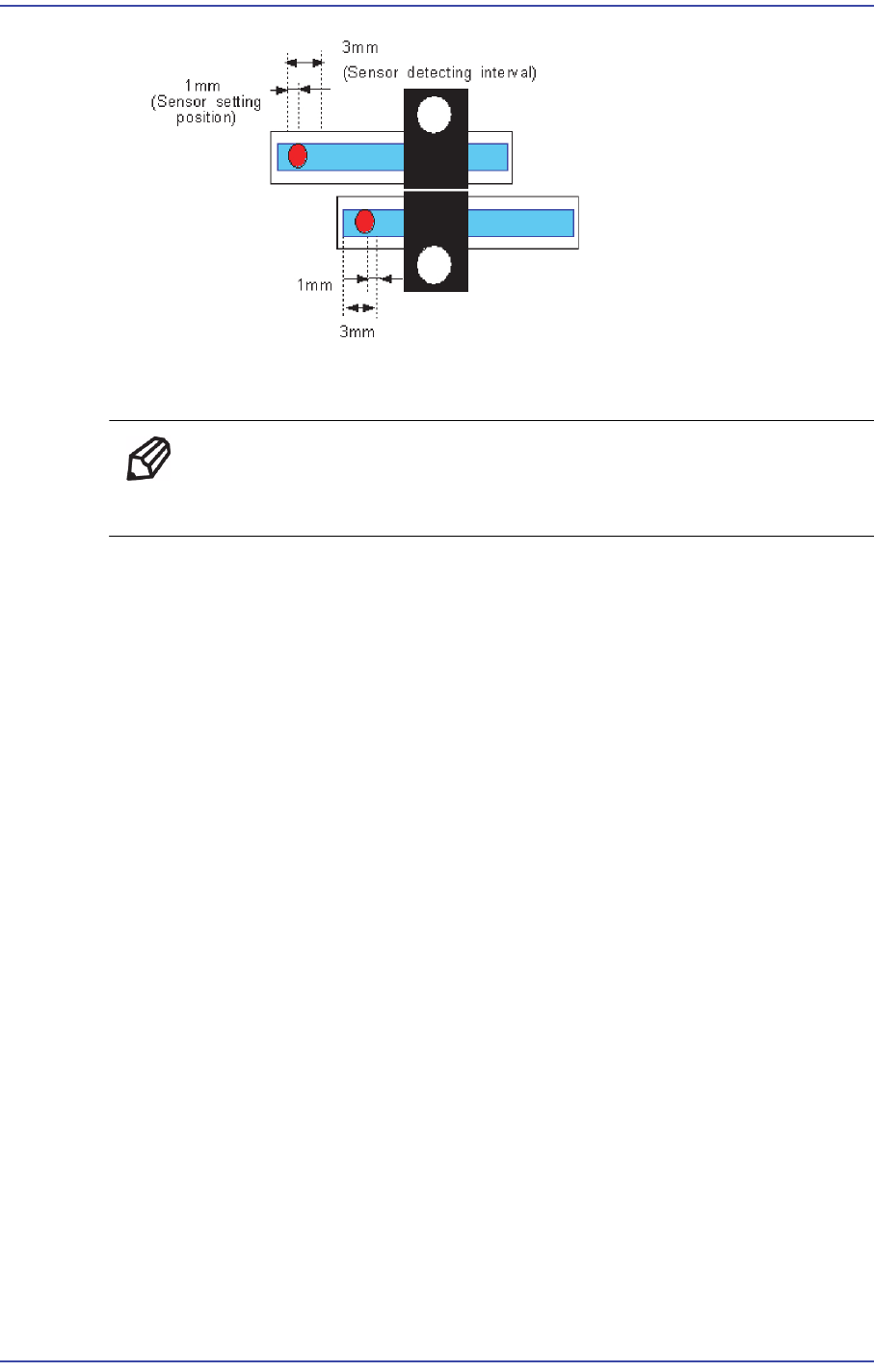

3) Leave the shutter open and check the detection range by checking if the sensor is
turned on/off while moving the ‘Open’ detection sensor. (Upper side sensor)
Ref Assemble the sensor by moving it by 1mm to the right from the left
end of the ‘Open’ detection sensor within the detection range
