9-11 Y Frame Duct 6) Connect the Z Motor AMP cables i n the order as show n in the followi ng figure. 7) Connect AMP jump cables Nos. 2 and 3, Nos. 4 and 5, Nos. 6 and 7 and Nos. 8 and 9, respectively .
9-10
Fast & Flexible Chip Shooter DECAN F2 Service Manual

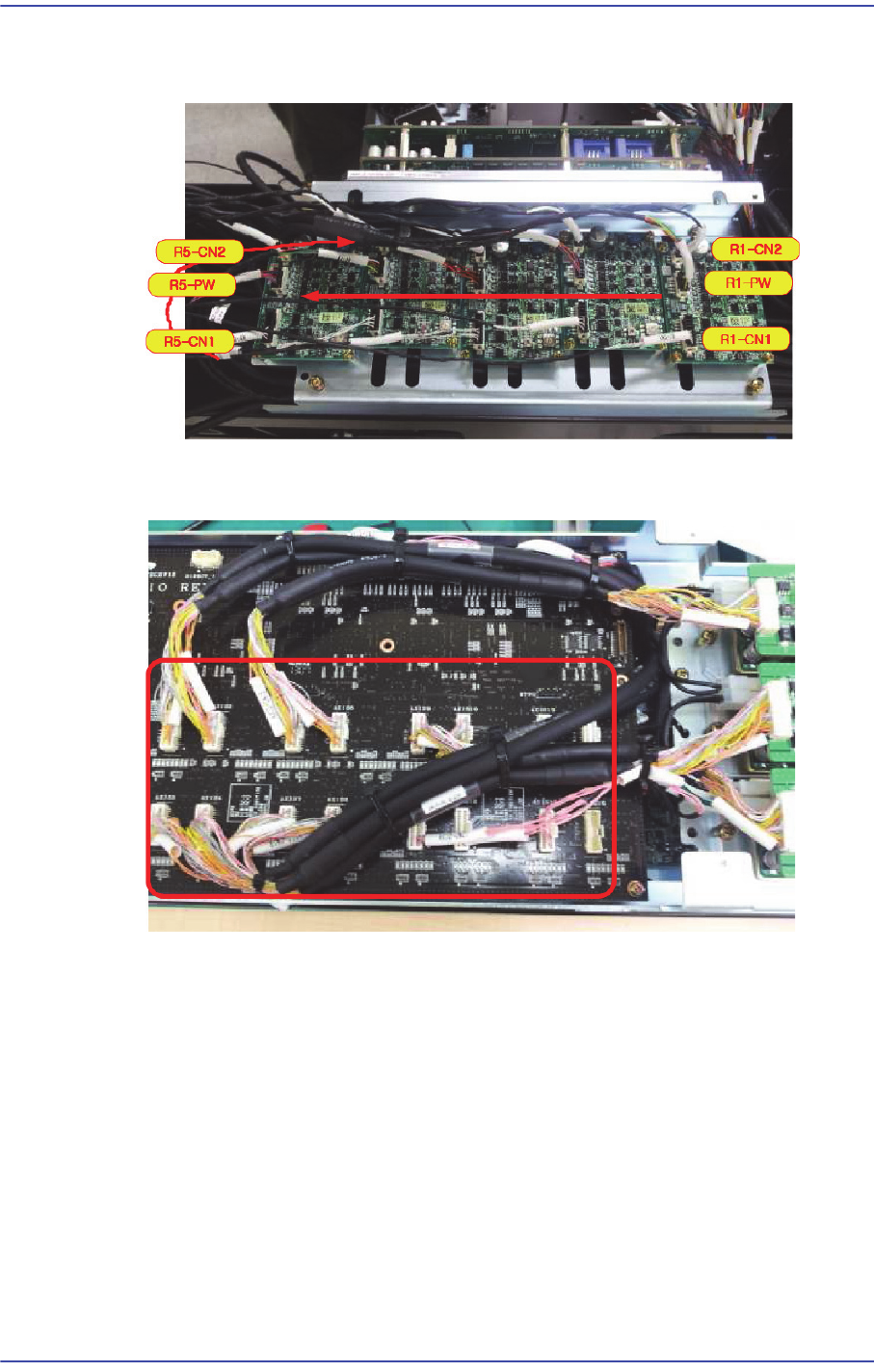

3) Match the number of connectors to the order of drivers and connect cables in the arrow
direction as shown in the following figure.
4) Assemble the 16 Axis Board cables so that the cable connector number matches the
board number.
5) Assemble the Z Motor AMP so that the cable connector number matches the board
number.
9-11
Y Frame Duct
6) Connect the Z Motor AMP cables in the order as shown in the following figure.
7) Connect AMP jump cables Nos. 2 and 3, Nos. 4 and 5, Nos. 6 and 7 and Nos. 8 and 9,
respectively.
