18-55 Machine Calibration 18.3.10.3. Light Mapping Calibrate the brightness of the light for the cam era. In order to perfo rm this calibration, insert the LightFix into th e No. 1 nozzle of the ANC. Caution Since the no…
18-54
Fast & Flexible Chip Shooter DECAN F2 Service Manual

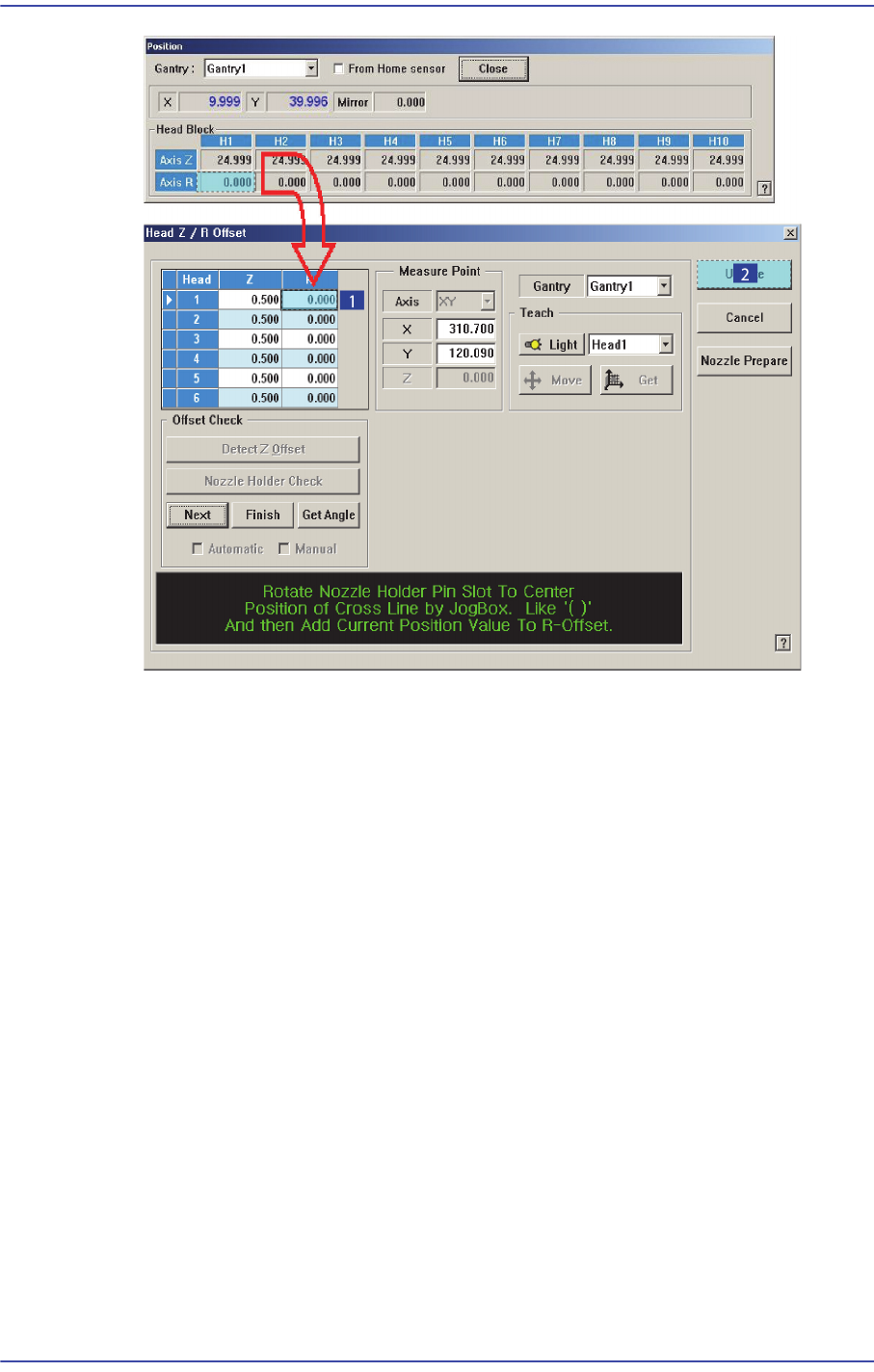

8. Perform the calibration form Head 2 to Head 10 in the same manner.
9. Click the <Update> button to apply the calibration result to the machine.
18-55
Machine Calibration
18.3.10.3. Light Mapping
Calibrate the brightness of the light for the camera. In order to perform this calibration,
insert the LightFix into the No. 1 nozzle of the ANC.
Caution Since the nozzle for the SM32x,SM411, SM421 model is
not compatible to the one for the light mapping used for the
SM32x,SM411, SM421 model, do not use it for this
machine.
1: Light Level group
<Select Camera> combo box
Selection Control
Select the camera to perform light mapping.
Light Level group
Sets the brightness by light level.
<Level> column
Dislays 16 steps of lighting.
<Side>/ <Outer>/ <Coaxial> column
For the Fly Camera: Input the side illumination value within the range of 256
values.
For the Fix Camera: Input the side illumination value within the range of 4096
18-56
Fast & Flexible Chip Shooter DECAN F2 Service Manual
values.
<Mapping/Test> button
Perform test or automatic mapping for the light level for the camera selected from the
<Select Camera> group.
Figure18.16When the Fiducial Camera is selected
Figure18.17When the Fly Camera is selected
<1. Test Area> group
Designates the area for which the nozzle for test checks the brightness of the
lighting. The are can be designated up to 4. the search area and excluded area are
