14-4 Fast & Flexible Chip Shooter DECAN F2 Service Manual 3) J9060364A(ASSY ,IT FEED ER MASTER BOARD) 4) Assemble the No. 1 and No. 2 boards. 5) EP06-000338(PROCESSOR BOARD-NT -A8)

14-3

Board

14.1.3. Components of PC Rack

14.1.3.1. Parts list of PC Rack

1) AM03-010651A(ASSY,ELECTRIC-MAIN_CPU BOX 6U*8SLOT)

2) AM03-000138(ASSY,BOARD-CPCI TO PCI ADAPTER BOARD)

No Part No. Switch Name Qty

1 AM03-010651A ASSY,ELECTRIC-MAIN_CPU BOX 6U*8SLOT 1

2 AM03-000138 ASSY,BOARD-CPCI TO PCI ADAPTER BOARD 1

3 J9060364A IT FEEDER MASTER BOARD ASSY 1

4 - Assemble the No. 1 and No. 2 boards. -

5 EP06-000338 PROCESSOR BOARD-NT-A8 2

6 CD05-000042 MOTHERBOARD,CPU-CPCI-6625-

i7;CPCI,HM65

7 CD05-000050 MODULE,MEMORY-MZ-7TD120Z;SSD,540BPS 1

8 EP10-001330 MEMORY-DDR3 10600 -

14-4

Fast & Flexible Chip Shooter DECAN F2 Service Manual

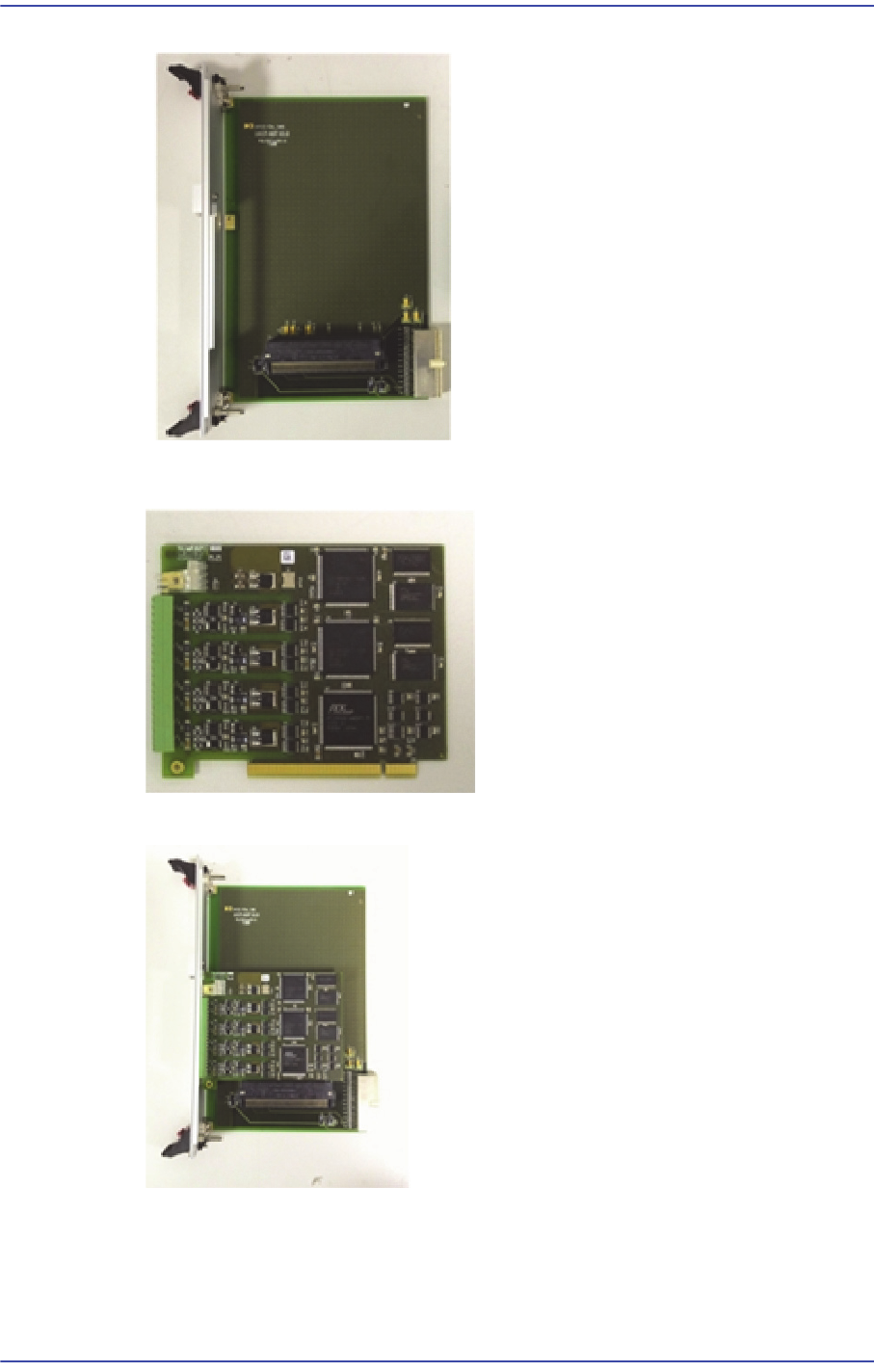

3) J9060364A(ASSY,IT FEEDER MASTER BOARD)

4) Assemble the No. 1 and No. 2 boards.

5) EP06-000338(PROCESSOR BOARD-NT-A8)

14-5

Board

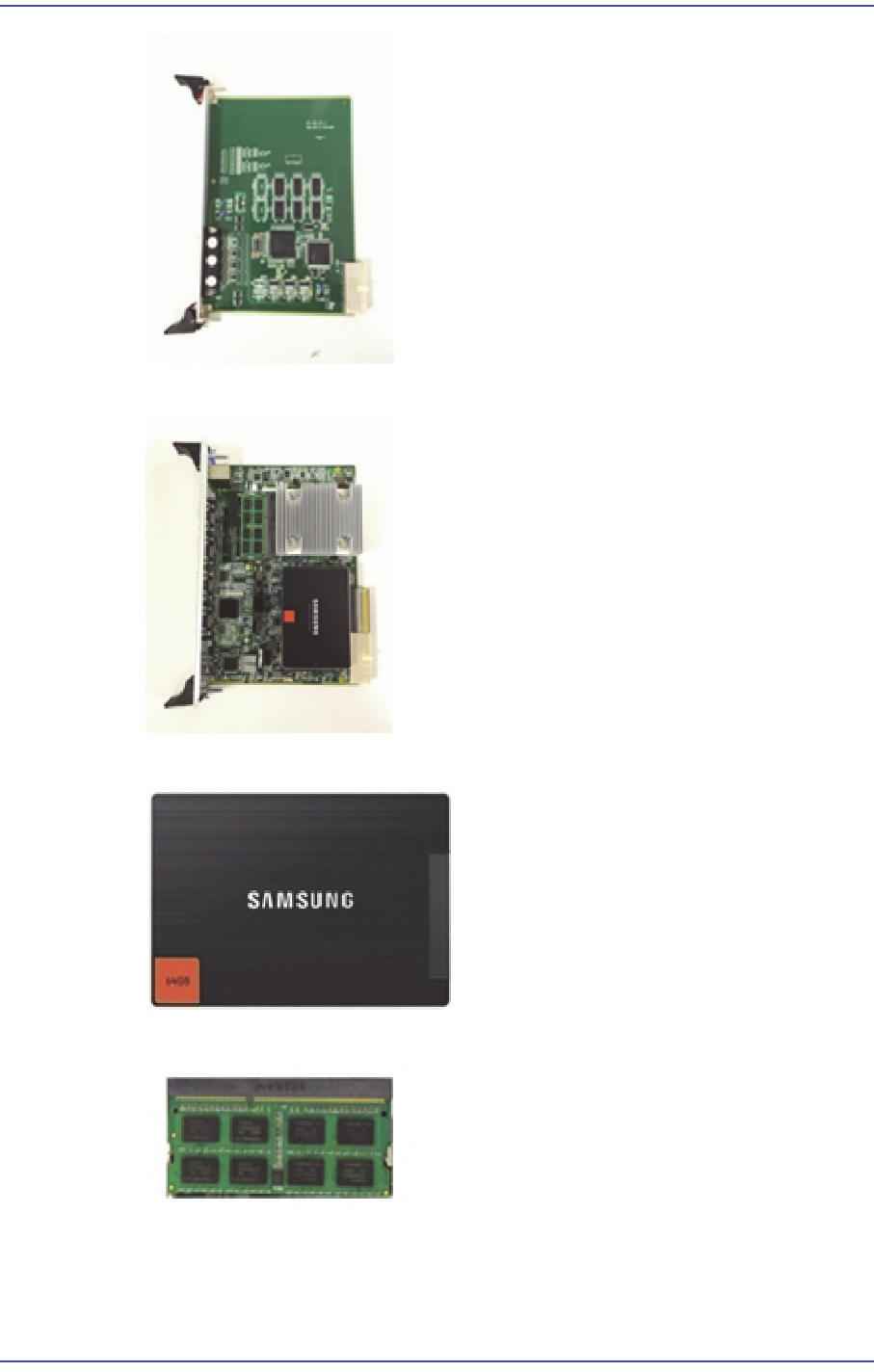

6) CD05-000042(MOTHERBOARD,CPU-CPCI-6625-i7;CPCI,HM65)

7) CD05-000050(MODULE,MEMORY-MZ-7TD120Z;SSD,540BPS)

8) EP10-001330(MEMORY-DDR3 10600)
