6-5 Conveyor Ref The part number of the belt is MC05-000068A . 4) When assembling it with a ne w Belt, refer to the following.

6-4

Fast & Flexible Chip Shooter DECAN F2 Service Manual

6.2. Belt

6.2.1. Required Tools

 Tension Gage (U-505)

 U-505 Jig

 T Wrench (other tools supplied) or Hex Wrench

 Gear wrench

 C-Ring Tool

6.2.2. Belt

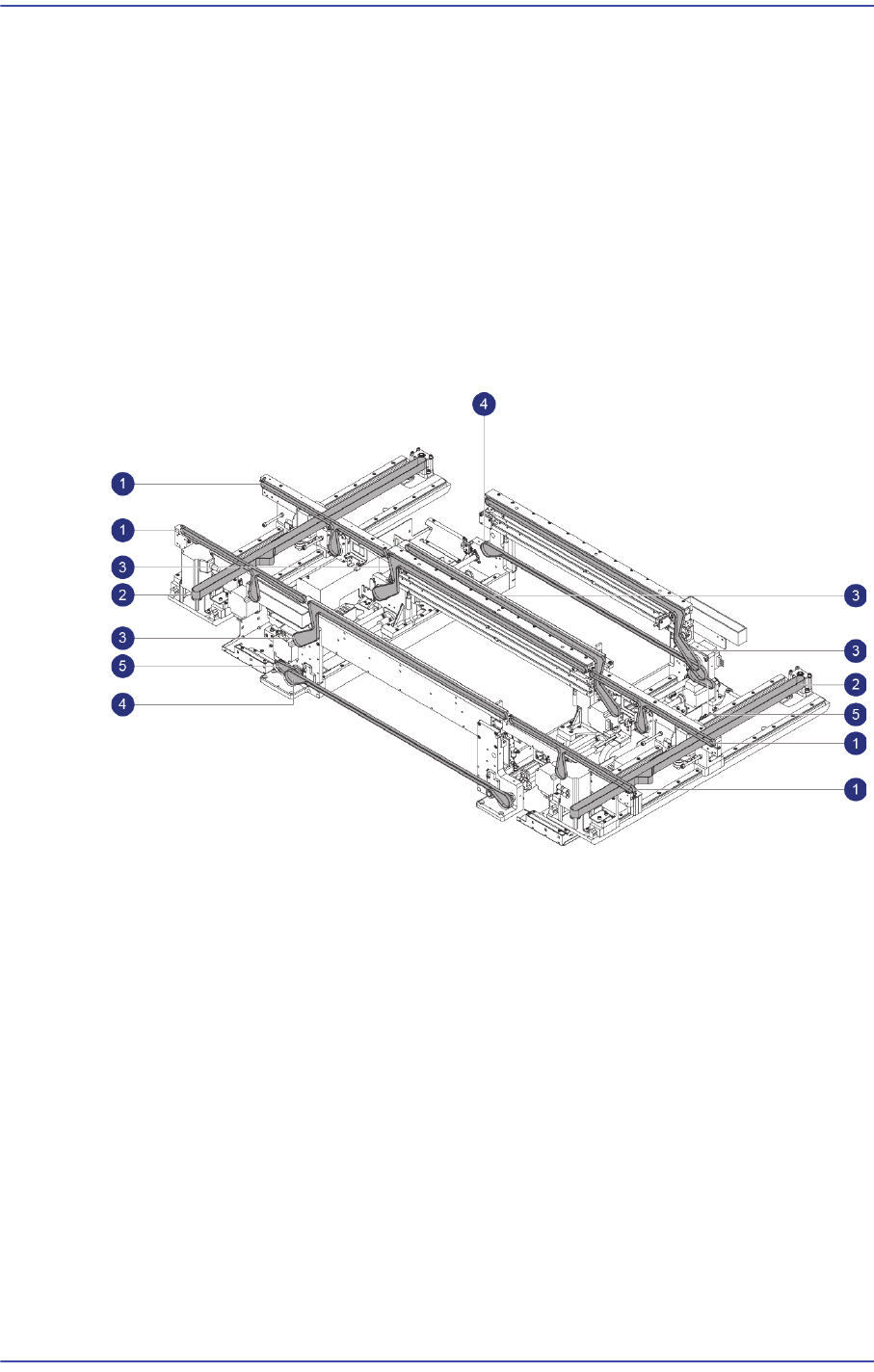

1: Entry / Exit Zone PCB Transfer Belt

2: Entry / Exit Zone width adjustment Belt

3: Work Zone PCB Transfer Belt

4: Work Zone width adjustment Belt

5: Work Zone Power transmission Belt

6.2.3. Entry / Exit Zone PCB Transfer Belt Replacement Procedure

1) Manipulate to increase the conveyor width as wide as possible.

2) Close the PC as usual and turn off the main switch at the front of the machine.

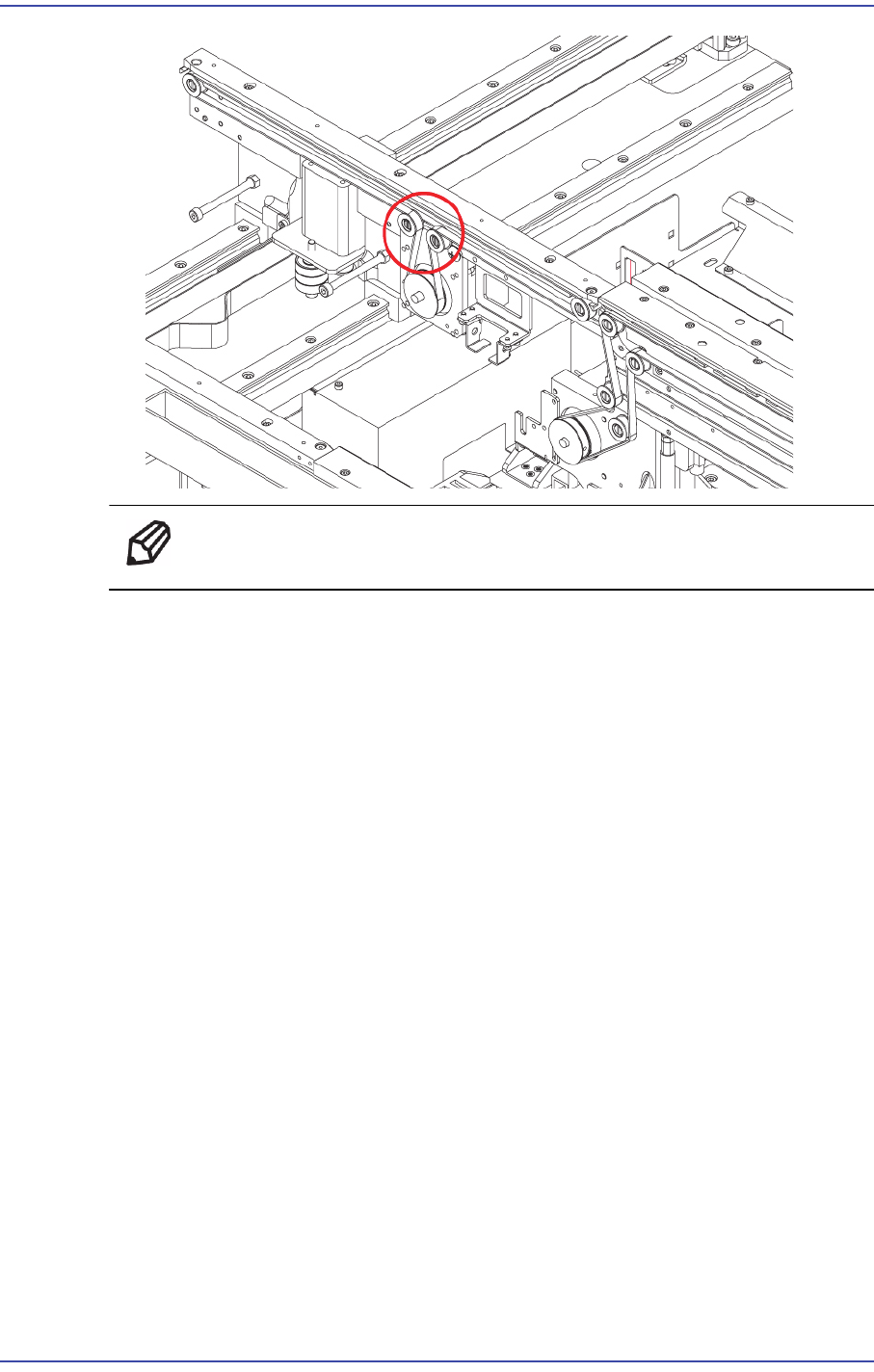

3) Remove the Belt to reduce the Tension Loosen slightly the Idler Shaft Belt of the

attempt to replace.

6-5

Conveyor

Ref The part number of the belt is MC05-000068A.

4) When assembling it with a new Belt, refer to the following.

6-6

Fast & Flexible Chip Shooter DECAN F2 Service Manual

Ref Tension: 22 ±2 Hz

Tension Measurement location:

You can adjust the Tension to move to the left and right Idle.

5) After assembling the conveyor belt, check whether it works properly.

6.2.4. Entry / Exit Zone Width adjustment Belt Replacement Procedure

1) Manipulate to increase the conveyor width as wide as possible.

2) Close the PC as usual and turn off the main switch at the front of the machine.

3) Unscrew the Fixing bolts(4-M3*6) securing the belt using a wrench and remove it

Ref The part number of the belt is MC05-000151.
