5-10 Fast & Flexible Chip Shooter DECAN F2 Service Manual Ref The part number of the new Board is AM06-00035 8A. 8) Assemble the board in the reverse order of disassembling. 9) Once the assembling is comple ted, turn…

5-9

Head

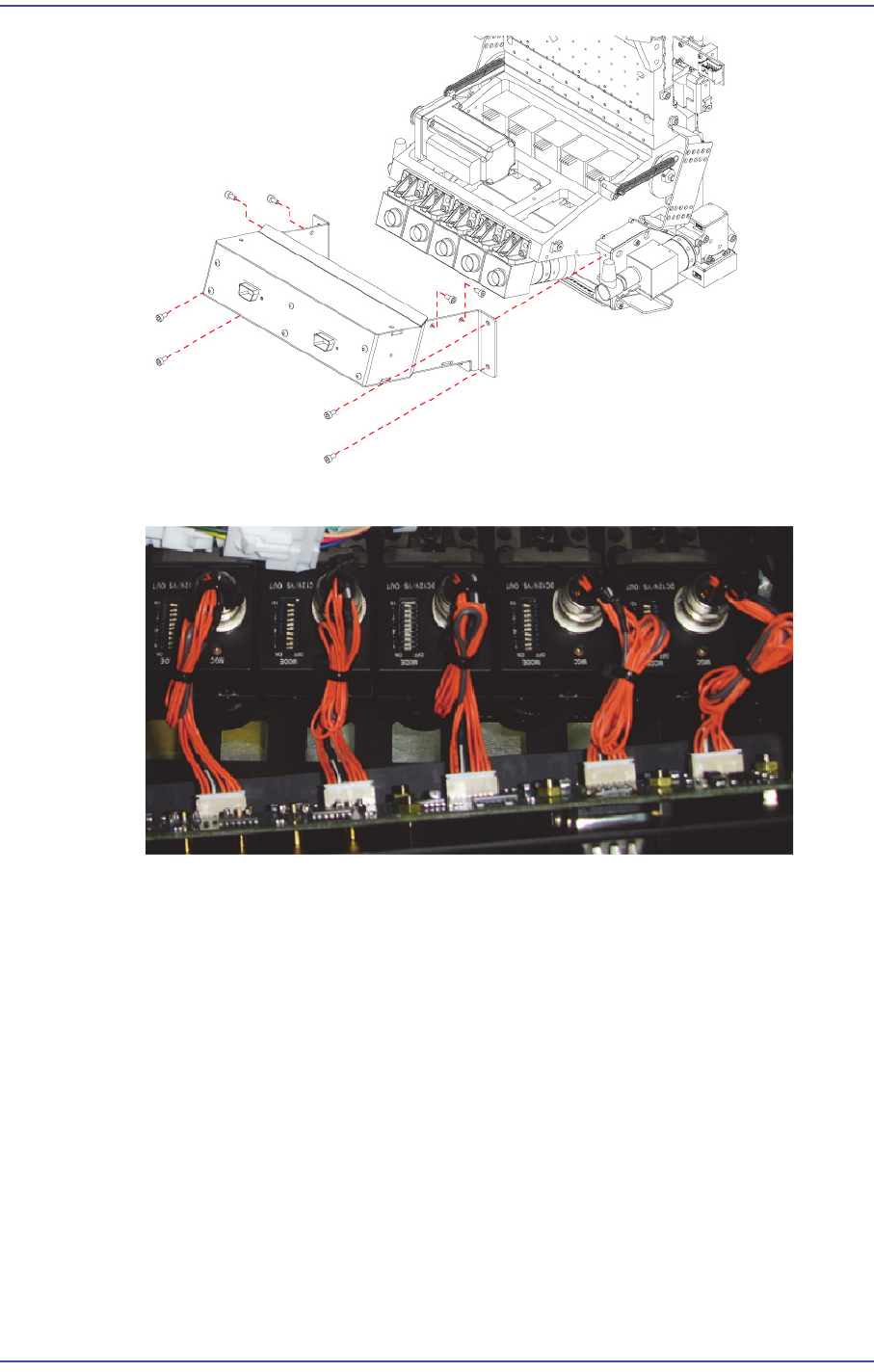

5) Remove the connectors connected to camera and Board.

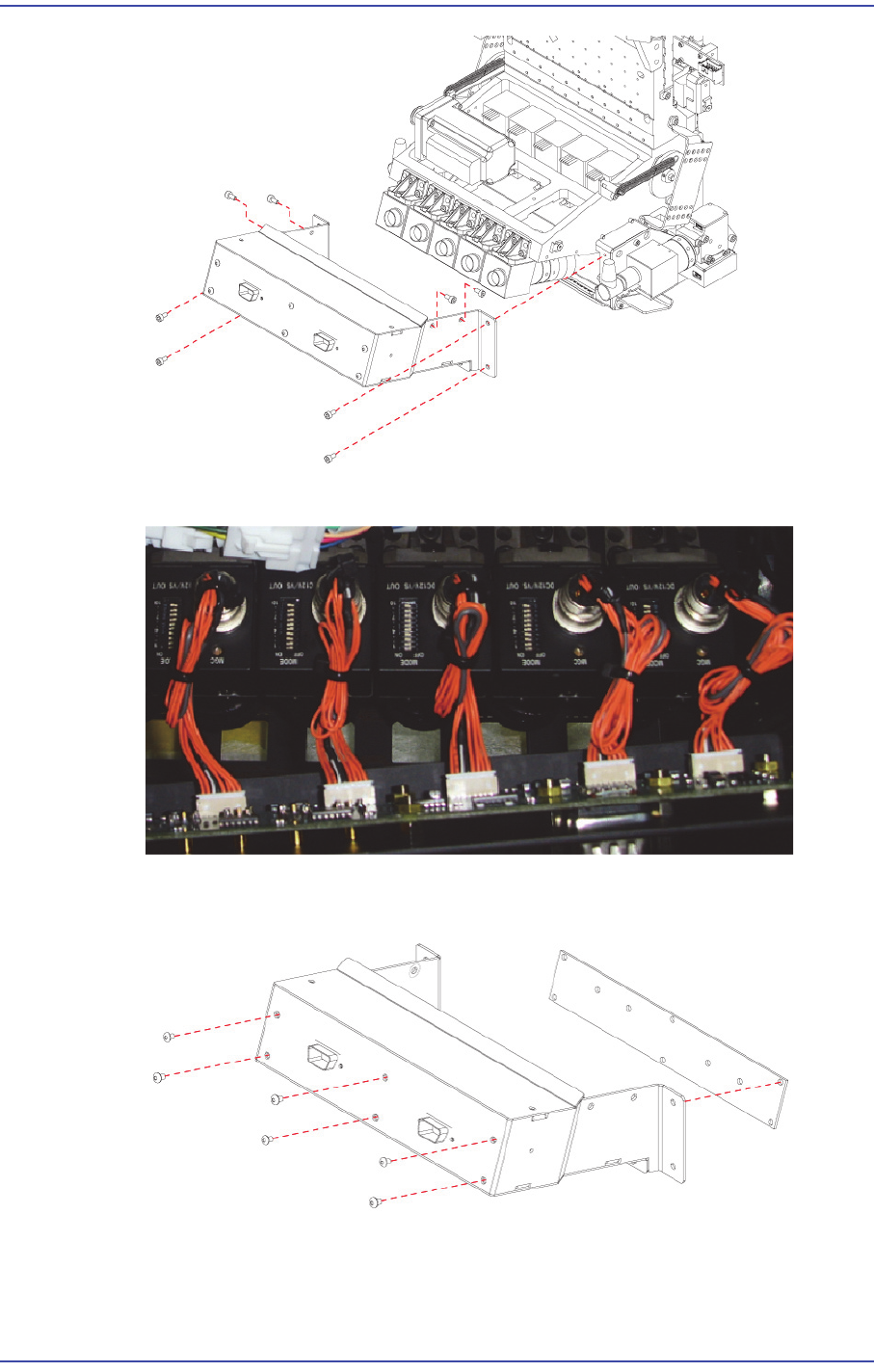

6) Unscrew the fixing bolts(6-M3*5) securing the flying IO board using a hex wrench

and remove it.

7) Replace the Board with a new one.

5-10

Fast & Flexible Chip Shooter DECAN F2 Service Manual

Ref The part number of the new Board is AM06-000358A.

8) Assemble the board in the reverse order of disassembling.

9) Once the assembling is completed, turn on the main switch on the front of the machine

and boot the PC.

10) Perform the following calibrations.

Light Mapping

Total Time : 0.8Hour

5.3.3. Flying Camera Replacement Procedure

1) Manipulate the teaching box to move the head module to the front.

2) Close the PC as usual and turn off the main switch at the front of the machine.

3) Remove the connectors connected to board.

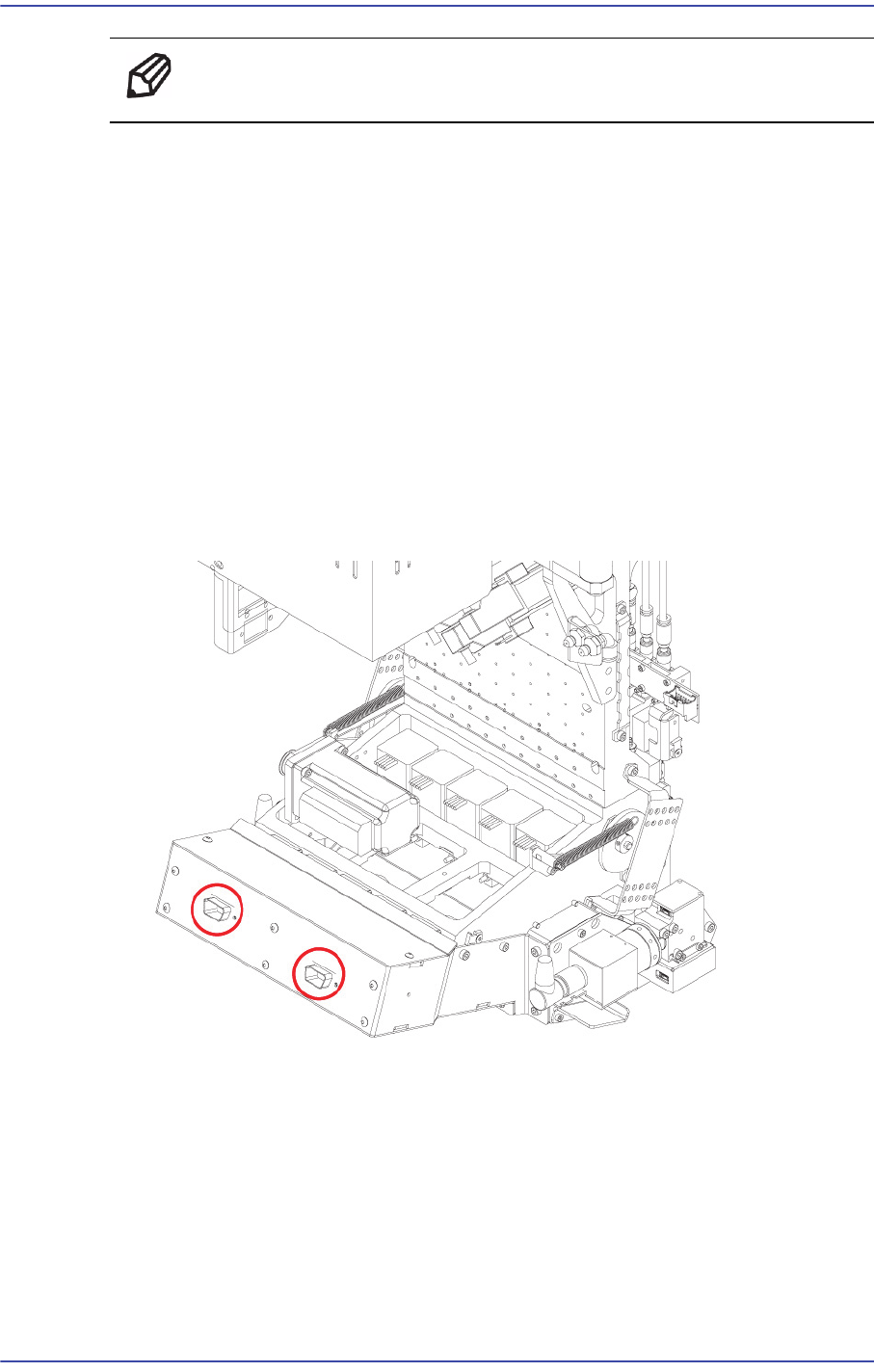

4) Unscrew the fixing bolts(8-M3*6) securing the flying IO board assembly using a hex

wrench and remove it

5-11

Head

5) Remove the connectors connected to camera and Board.

6) Unscrew the fixing bolts(3-M2*6) securing the bracket using a hex wrench and

remove it.
