14-20 Fast & Flexible Chip Shooter DECAN F2 Service Manual Ref The part number of the new Board is J91741 337A.

14-19

Board

Warning Be sure to wear anti-electrostatic gloves when servicing the

machine.

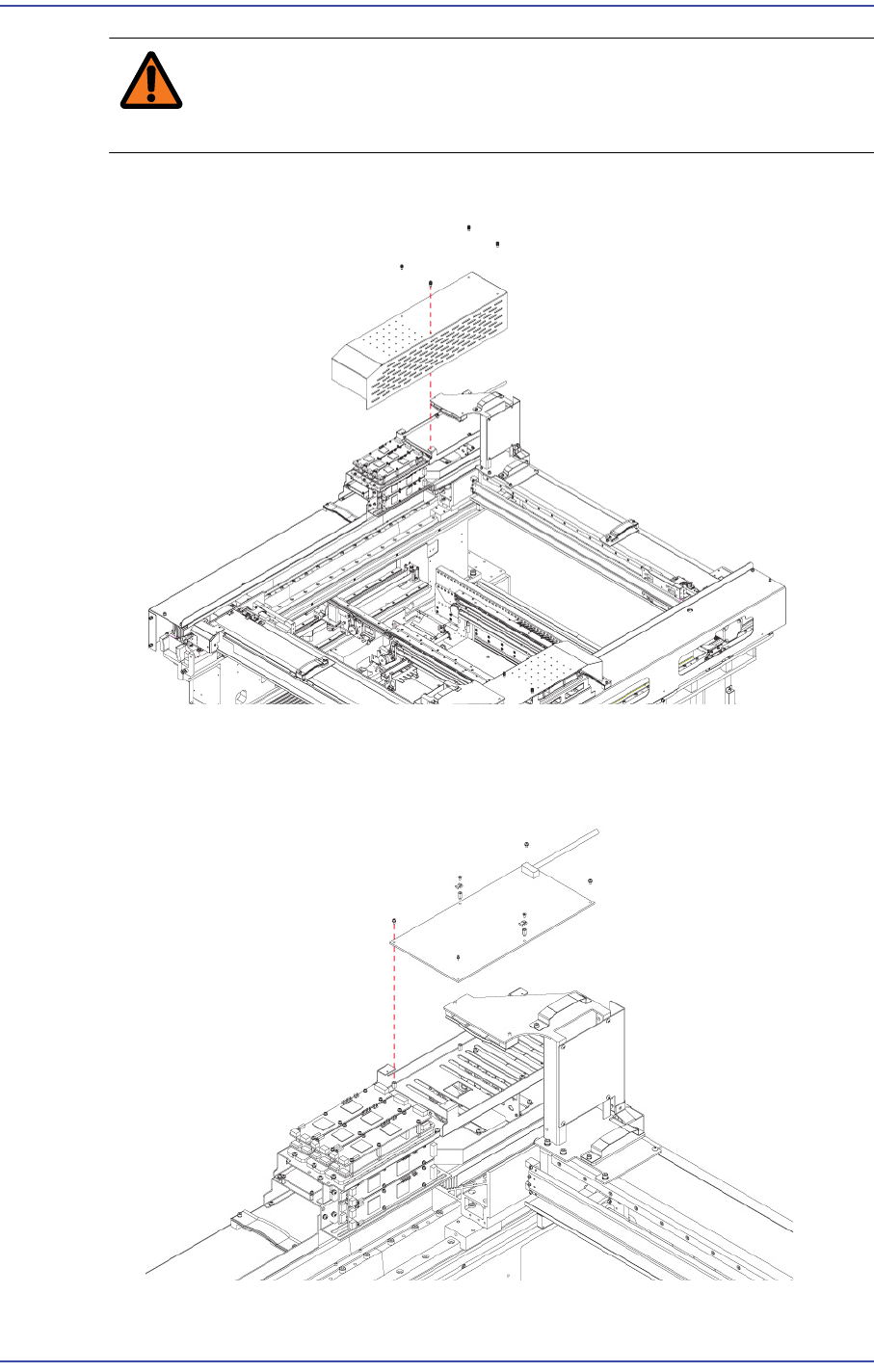

3) Unscrew the Fastener securing the Cover Driver Y using a wrench and remove it.

4) Remove the cable connected to the board.

5) Unscrew the fixing bolts(6-M3*6) securing the 16 Axis Board using a wrench and

remove it.

6) Assemble in the Y Fame Duct a new Board.

14-20

Fast & Flexible Chip Shooter DECAN F2 Service Manual

Ref The part number of the new Board is J91741337A.

14-21

Board

14.4. Feeder Base Board

14.4.1. Required Tools

 Crosshead (Phillips) screwdriver and flathead screwdriver

 T Wrench or Hex Wrench

 Nipper (Remove the Cable Tie)

14.4.2. Feeder Base Board Replacement Procedure

1) Close the PC as usual and turn off the main switch at the front of the machine.

2) Turn off the main power supply to the machine.

Warning Before servicing the machine, turn off the power switch

located at the front bottom as well as the main circuit

breaker at the rear bottom of the machine. Otherwise,

serious personal injury may occur. Perform servicing with

the power supply to the machine cut off without fail.

Warning Be sure to wear anti-electrostatic gloves when servicing the

machine.
