5-37

Head

5) Remove the cable connected to motor.

6) Unscrew the fixing bolts(2-M3*8) securing motor and remove it.

7) Unscrew the setscrew(2-M3*3) securing pulley and remove it.

5-38

Fast & Flexible Chip Shooter DECAN F2 Service Manual

Ref The part number of the new motor is J31081047A.

8) When assembling, refer to the following.

Belt Tension : 136~175Hz

Measurement Position :

9) Once the assembling is completed, turn on the main switch on the front of the machine

and boot the PC.

5-39

Head

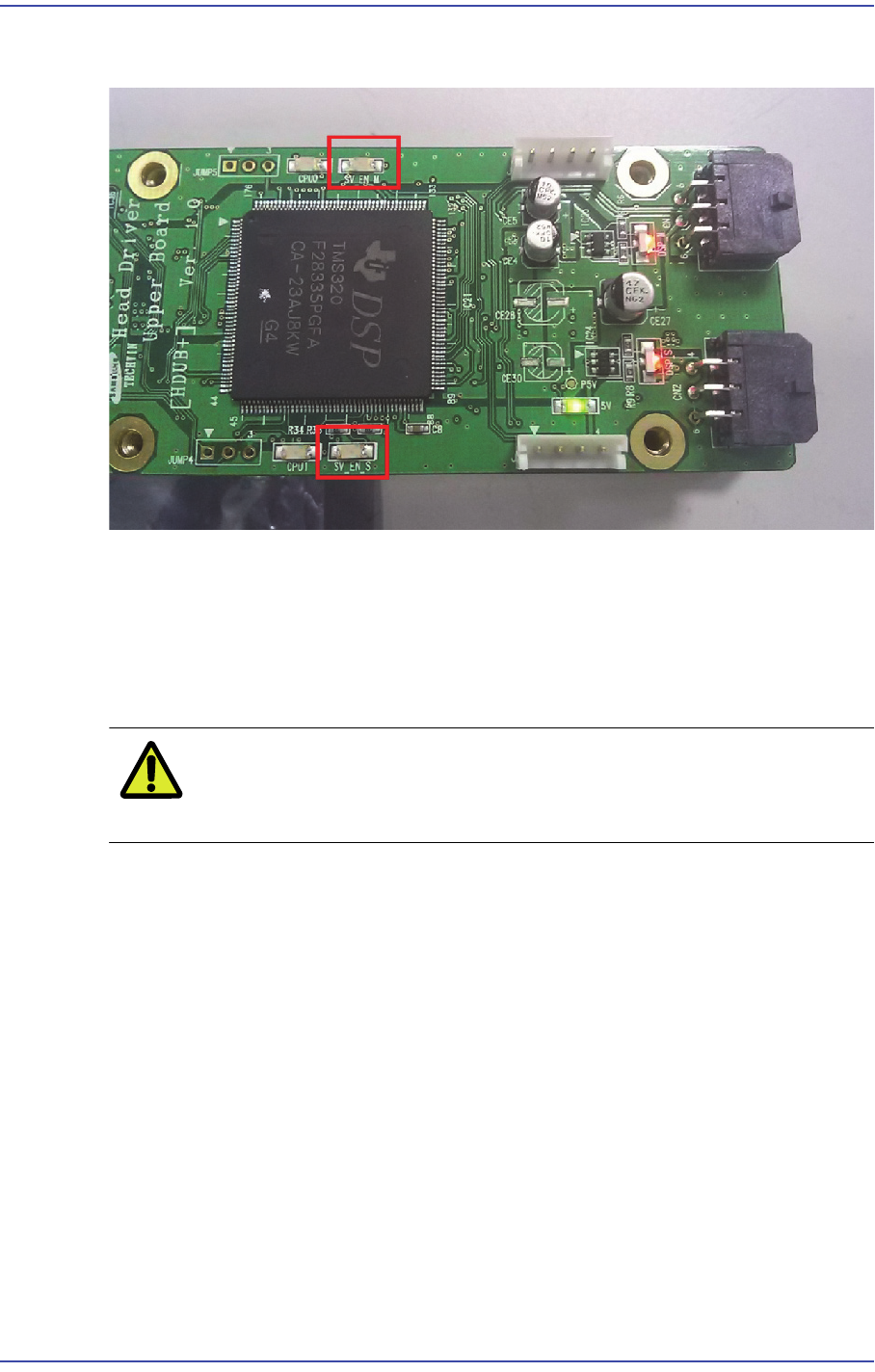

5.9.3.1. How to check the Z phase of the head motor

1) Move the corresponding axis block connected to the head AMP down.

2) When the physical Z phase of the motor is detected during the above process, the

SV_EN LED is turned on.

3) That is, the position at which the SV_EN_LED is turned on is the Z phase of the

corresponding axis motor.

Caution Since the range of the physical Z phase is small, move the

axis block as slowly as possible.
