8-8 Fast & Flexible Chip Shooter DECAN F2 Service Manual Ref The part number of the new Spring is J6107047A. 8) T urn on the main switch at the front of the machine and boot the PC once the replacement is completed.

8-7

BUT

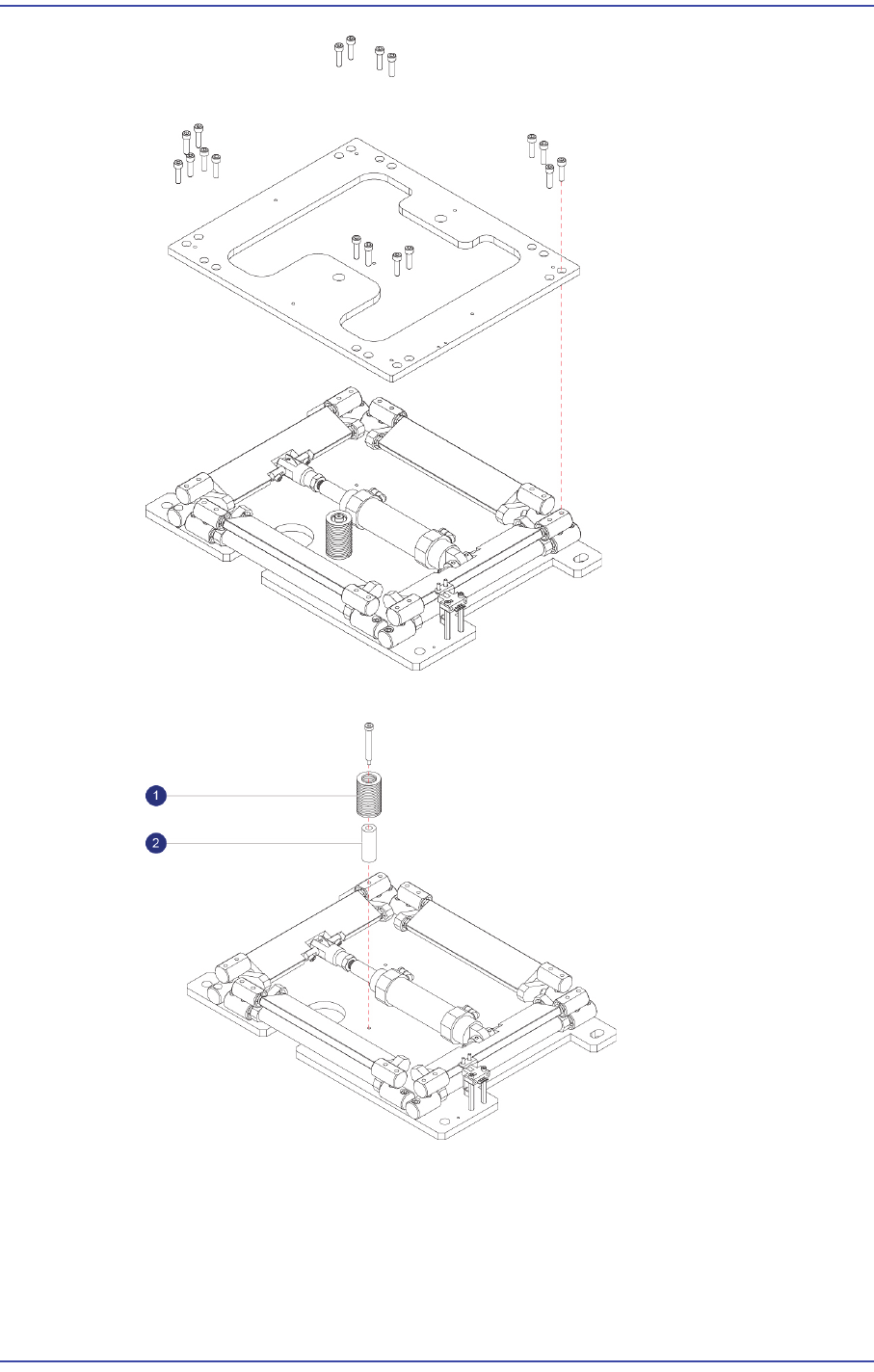

6) Unscrew the fixing bolts securing the Spring using a wrench and remove it.

1: Spring : J6107047A

2: Cushion : J6308003A

7) Assemble in the BUT a new Spring.

8-8

Fast & Flexible Chip Shooter DECAN F2 Service Manual

Ref The part number of the new Spring is J6107047A.

8) Turn on the main switch at the front of the machine and boot the PC once the

replacement is completed.

Y Frame Duct
