5-34

Fast & Flexible Chip Shooter DECAN F2 Service Manual

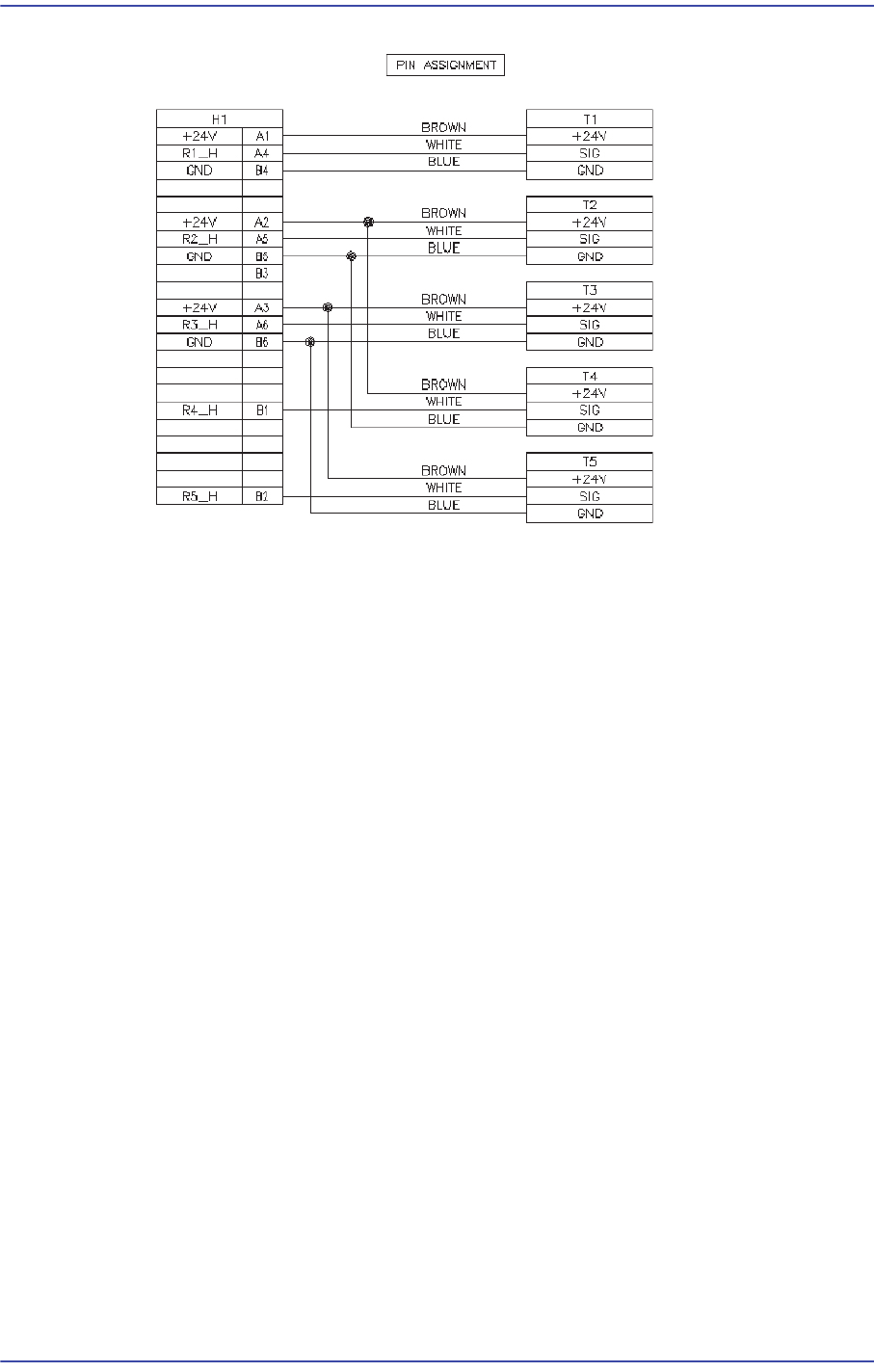

Pin Assignment of R Axis Home Sensor Cable

5-35

Head

5.9. Z Axis Motor / Belt / Sensor

5.9.1. Required Tools

 T wrench (other tools supplied) or hex wrench

 Gear wrench or torque wrench

5.9.2. Belt Replacement Procedure

1) Manipulate the teaching box to move the head module to the front.

2) Close the PC as usual and turn off the main switch at the front of the machine.

3) Remove the spindle at the location where the spindle is replaced referring to the

Spindle Replacement Procedure.

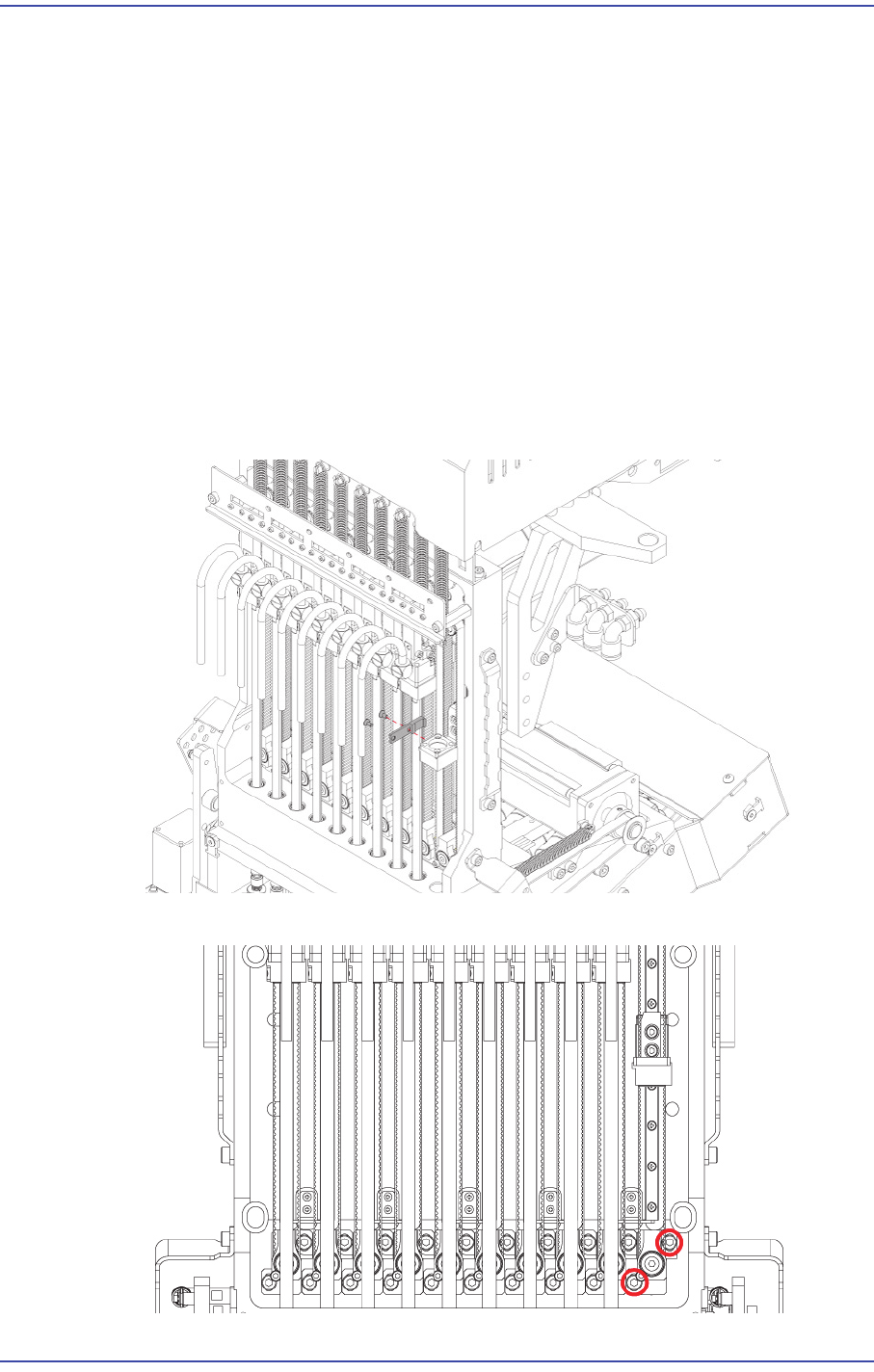

4) Unscrew the fixing bolts(2-M2*4) securing belt clamp and remove it.

5) Slightly loosen the fixing bolts securing the Z idle body and remove the loosened belt.

5-36

Fast & Flexible Chip Shooter DECAN F2 Service Manual

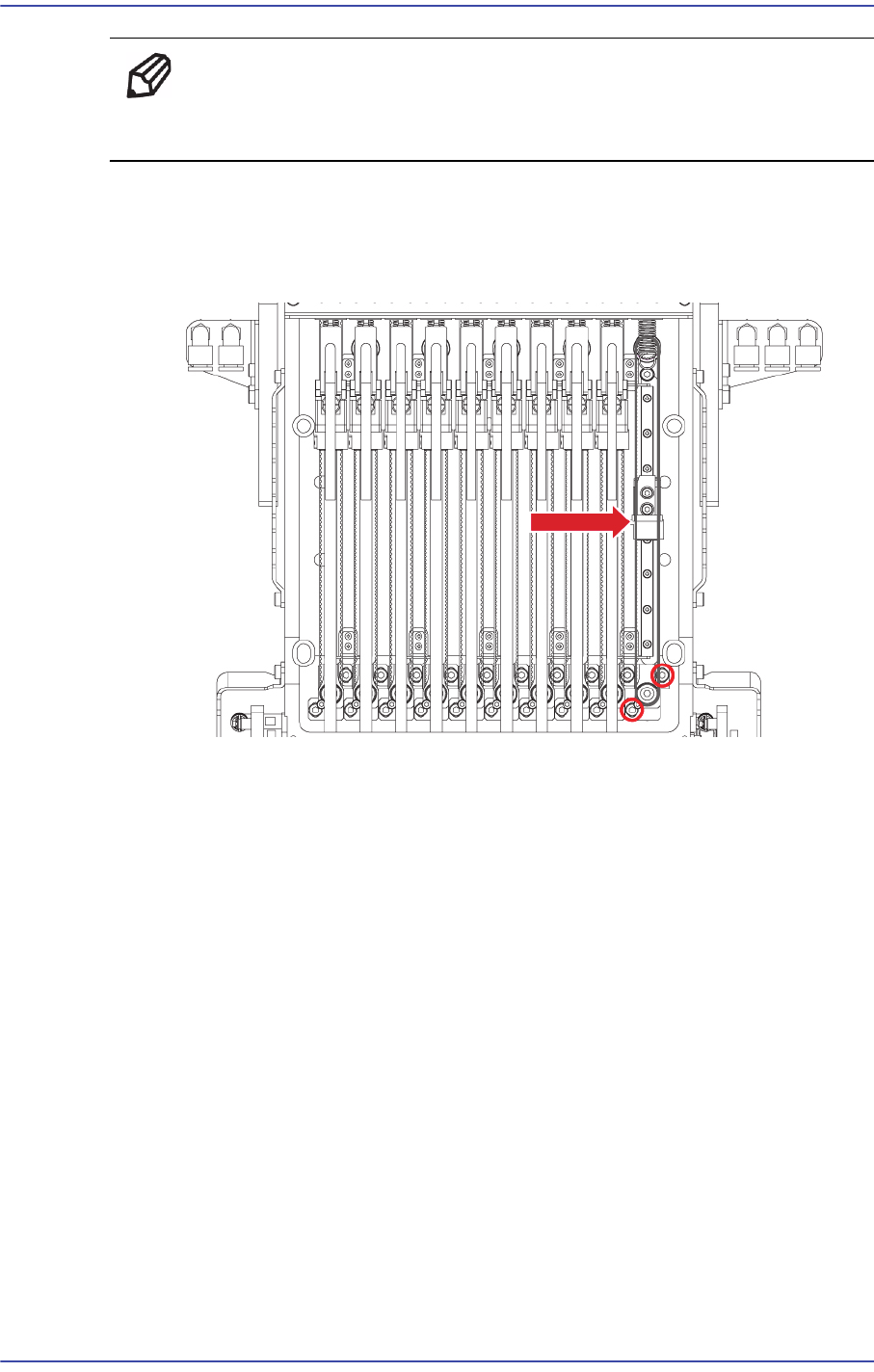

Ref The part number of the new short belt is MC05-000119.

The part number of the new long belt is MC05-000117.

6) When assembling, refer to the following.

Belt Tension : 136~175Hz

Measurement Position :

7) Once the assembling is completed, turn on the main switch on the front of the machine

and boot the PC.

8) Perform the following calibrations.

Axis Home Calibration

Head Z Offset calibration

Total Time : 0.5Hour

5.9.3. Motor Replacement Procedure

1) Manipulate the teaching box to move the head module to the front.

2) Close the PC as usual and turn off the main switch at the front of the machine.

3) Remove the spindle at the location where the spindle is replaced referring to the

Spindle Replacement Procedure.

4) Unscrew the fixing bolts(2-M2*4) securing belt clamp and remove it.
