6-7 Conveyor 4) Assemble the belt referring to the following. Ref T ensio n : 22 ± 2 Hz T ension Measurement location: Meas ured from the vote Hole in the Shuttle Base. Y ou can adjust the T e nsion to move to the left a…
6-6
Fast & Flexible Chip Shooter DECAN F2 Service Manual
Ref Tension: 22 ±2 Hz
Tension Measurement location:
You can adjust the Tension to move to the left and right Idle.
5) After assembling the conveyor belt, check whether it works properly.
6.2.4. Entry / Exit Zone Width adjustment Belt Replacement Procedure
1) Manipulate to increase the conveyor width as wide as possible.
2) Close the PC as usual and turn off the main switch at the front of the machine.
3) Unscrew the Fixing bolts(4-M3*6) securing the belt using a wrench and remove it
Ref The part number of the belt is MC05-000151.
6-7
Conveyor

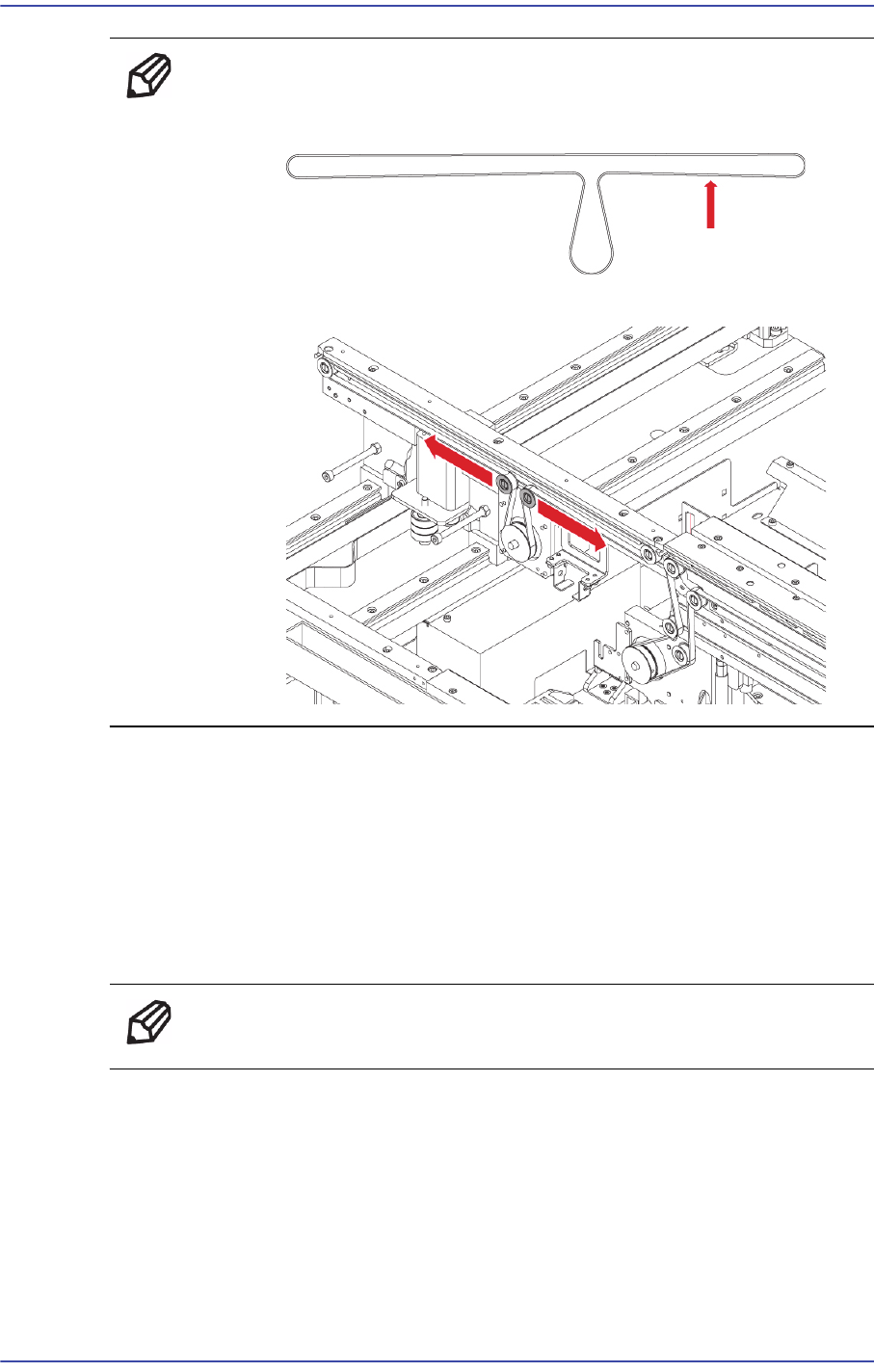

4) Assemble the belt referring to the following.
Ref Tension : 22 ± 2 Hz
Tension Measurement location: Measured from the vote Hole in the
Shuttle Base.
You can adjust the Tension to move to the left and right Idle.
6-8
Fast & Flexible Chip Shooter DECAN F2 Service Manual
5) After assembling the conveyor belt, check whether it works properly.
6.2.5. Work Zone PCB Transfer Belt t Replacement Procedure
1) Manipulate to increase the conveyor width as wide as possible.
2) Close the PC as usual and turn off the main switch at the front of the machine.

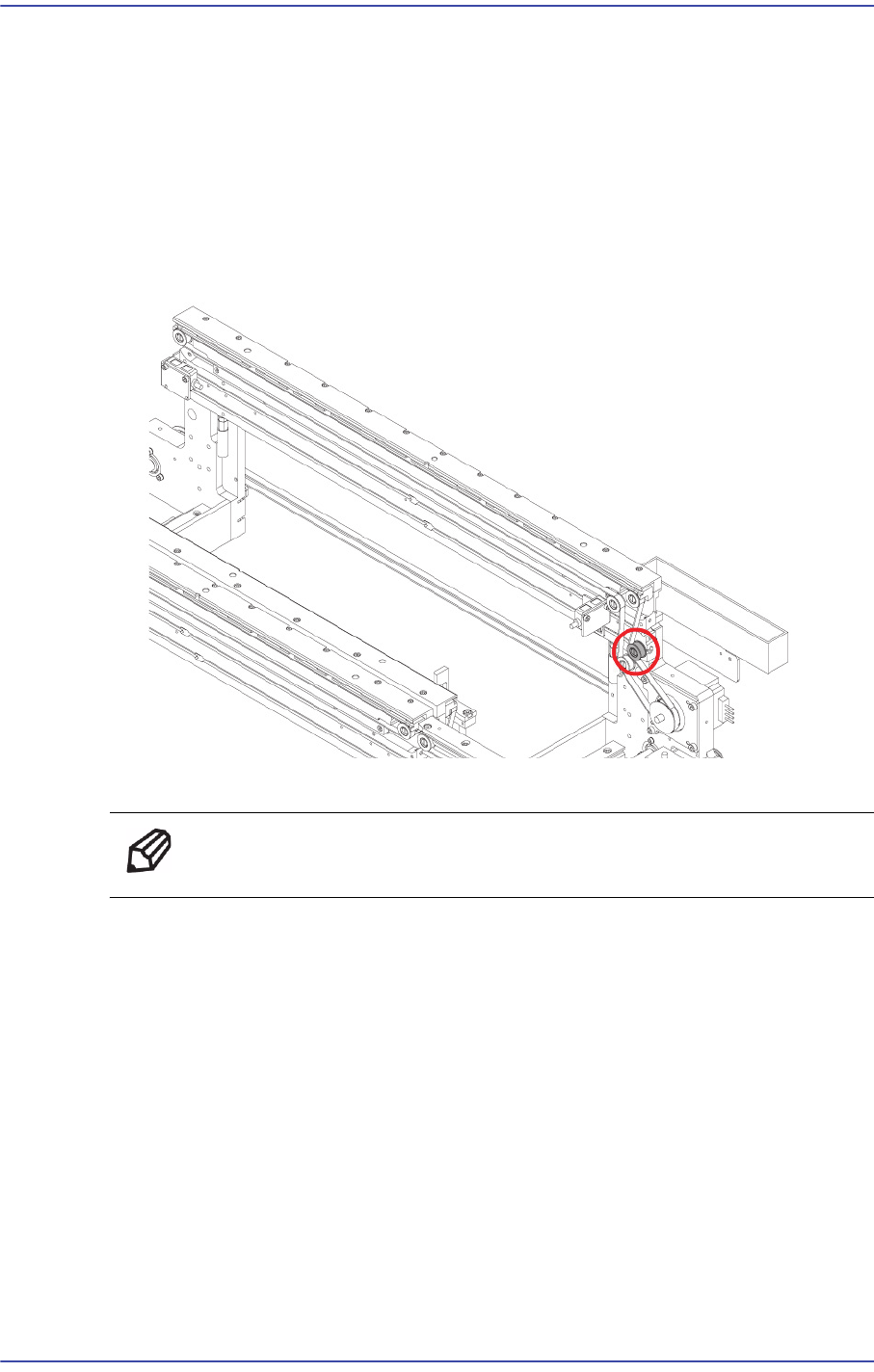

3) Remove the Belt to reduce the Tension Loosen slightly the Idler Shaft Belt of the
attempt to replace.
4) Replace the belt with a new one.
Ref The part number of the new belt is J66021006A.
5) When assembling it with a new Belt, refer to the following.
