6-9 Conveyor Ref T ension: 22 ±2 Hz T ension Measurement location: Y ou can adjust the T ension to mo ve to the left and right Idle. 6) After assembling the conveyor belt, check whether it works properly . 6.2.6. Wor…
6-8
Fast & Flexible Chip Shooter DECAN F2 Service Manual
5) After assembling the conveyor belt, check whether it works properly.
6.2.5. Work Zone PCB Transfer Belt t Replacement Procedure
1) Manipulate to increase the conveyor width as wide as possible.
2) Close the PC as usual and turn off the main switch at the front of the machine.
3) Remove the Belt to reduce the Tension Loosen slightly the Idler Shaft Belt of the
attempt to replace.
4) Replace the belt with a new one.
Ref The part number of the new belt is J66021006A.
5) When assembling it with a new Belt, refer to the following.
6-9
Conveyor

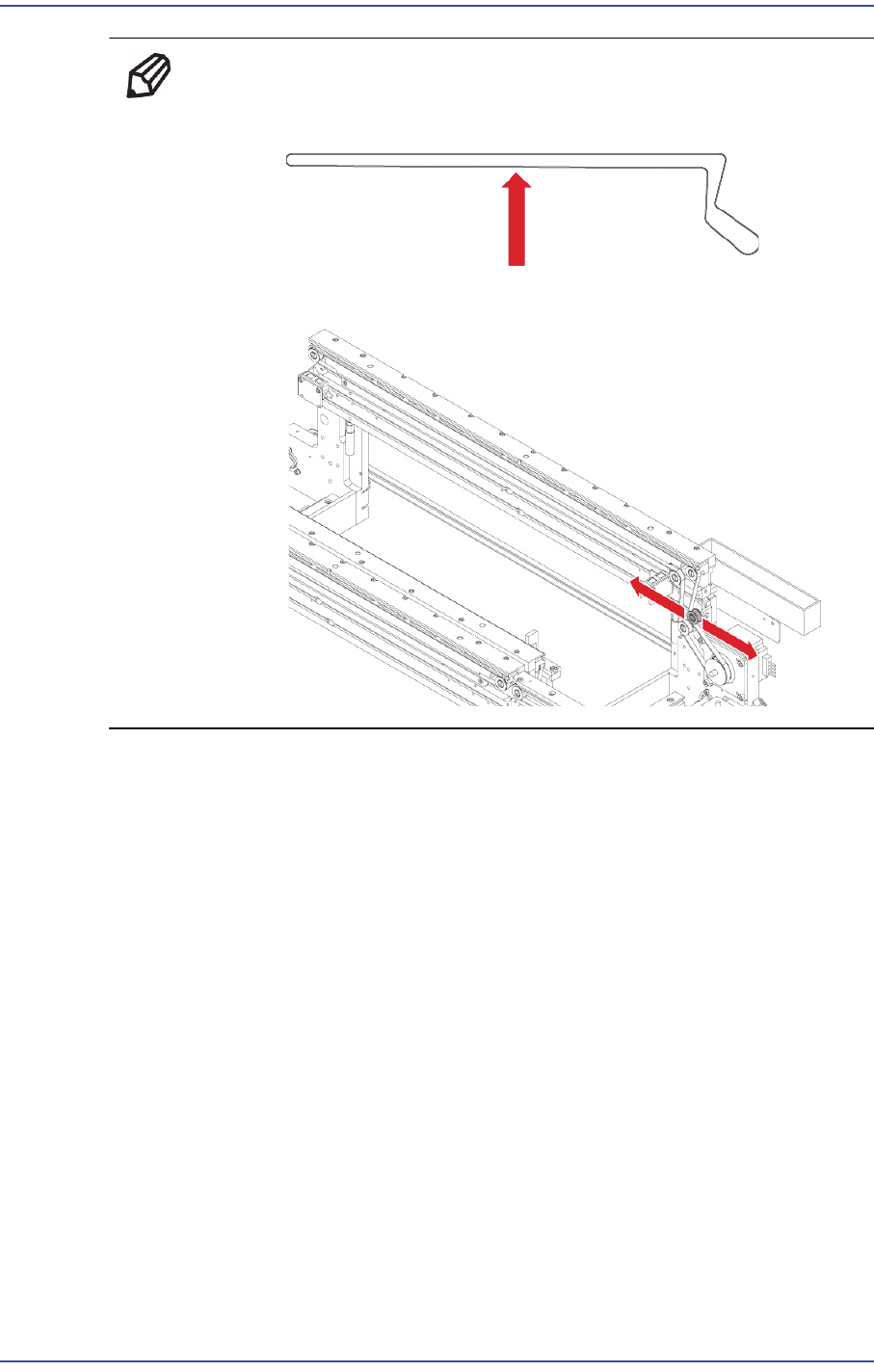

Ref Tension: 22 ±2 Hz
Tension Measurement location:
You can adjust the Tension to move to the left and right Idle.
6) After assembling the conveyor belt, check whether it works properly.
6.2.6. Work Zone Width adjustment Belt Replacement Procedure
1) Manipulate the teaching box to move the X Frame to the rear.
2) Close the PC as usual and turn off the main switch at the front of the machine.

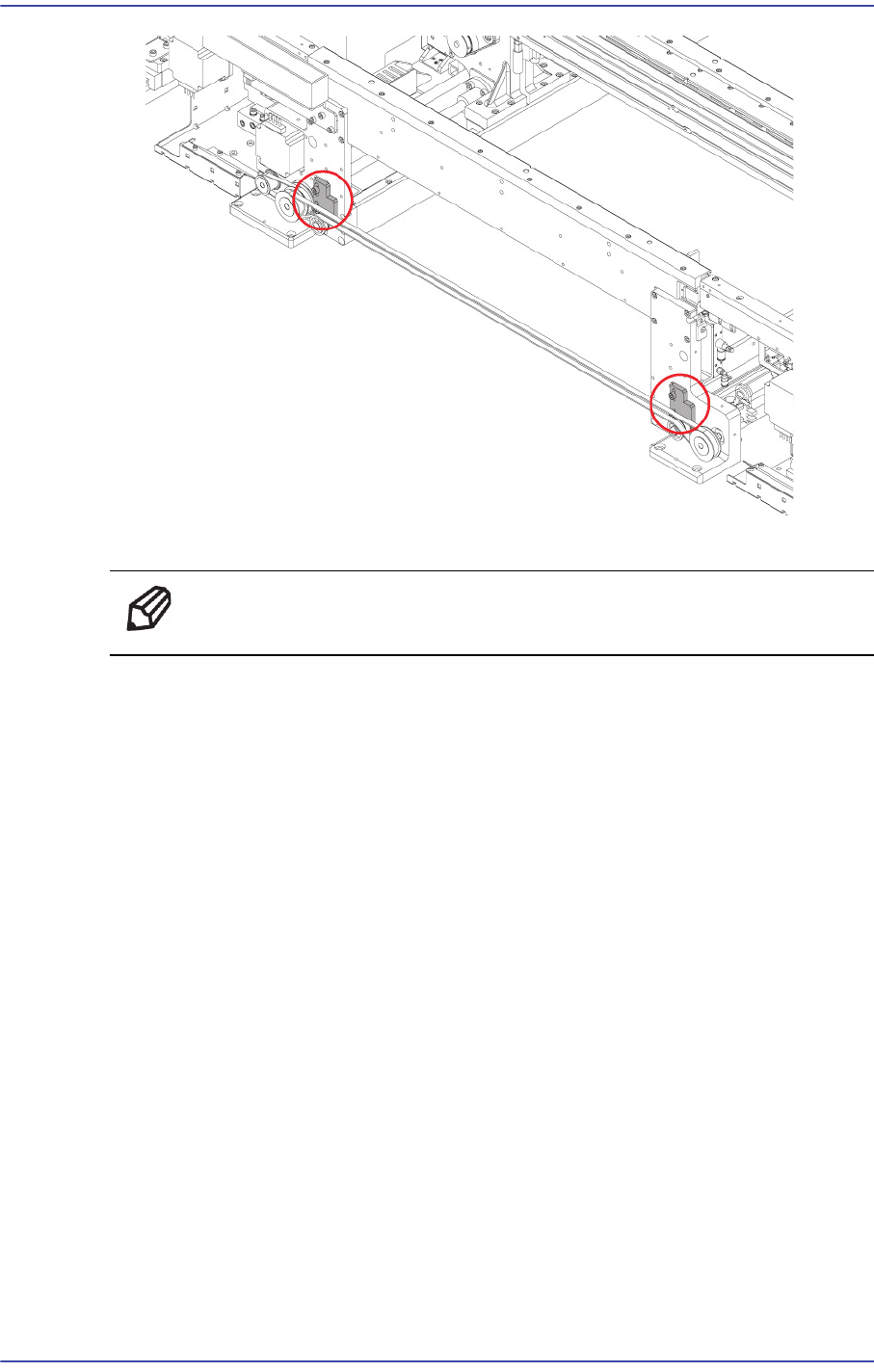

3) Unscrew the idler shaft using a flathead screwdriver and loosen the timing belt
tension.
6-10
Fast & Flexible Chip Shooter DECAN F2 Service Manual
4) Replace the belt with a new one.
Ref The part number of the new belt is J66021005A.
5) Assembled the reverse order of disassembling.
