3-5 Installation & Operation 2: Y Axis Leveler 4) When adjusting the level of the foot, it is recommended to grou p 2 feet as one set and adjust the level in each direction. (At this time, adjust the foot finally .…
3-4
Fast & Flexible Chip Shooter DECAN F2 Service Manual

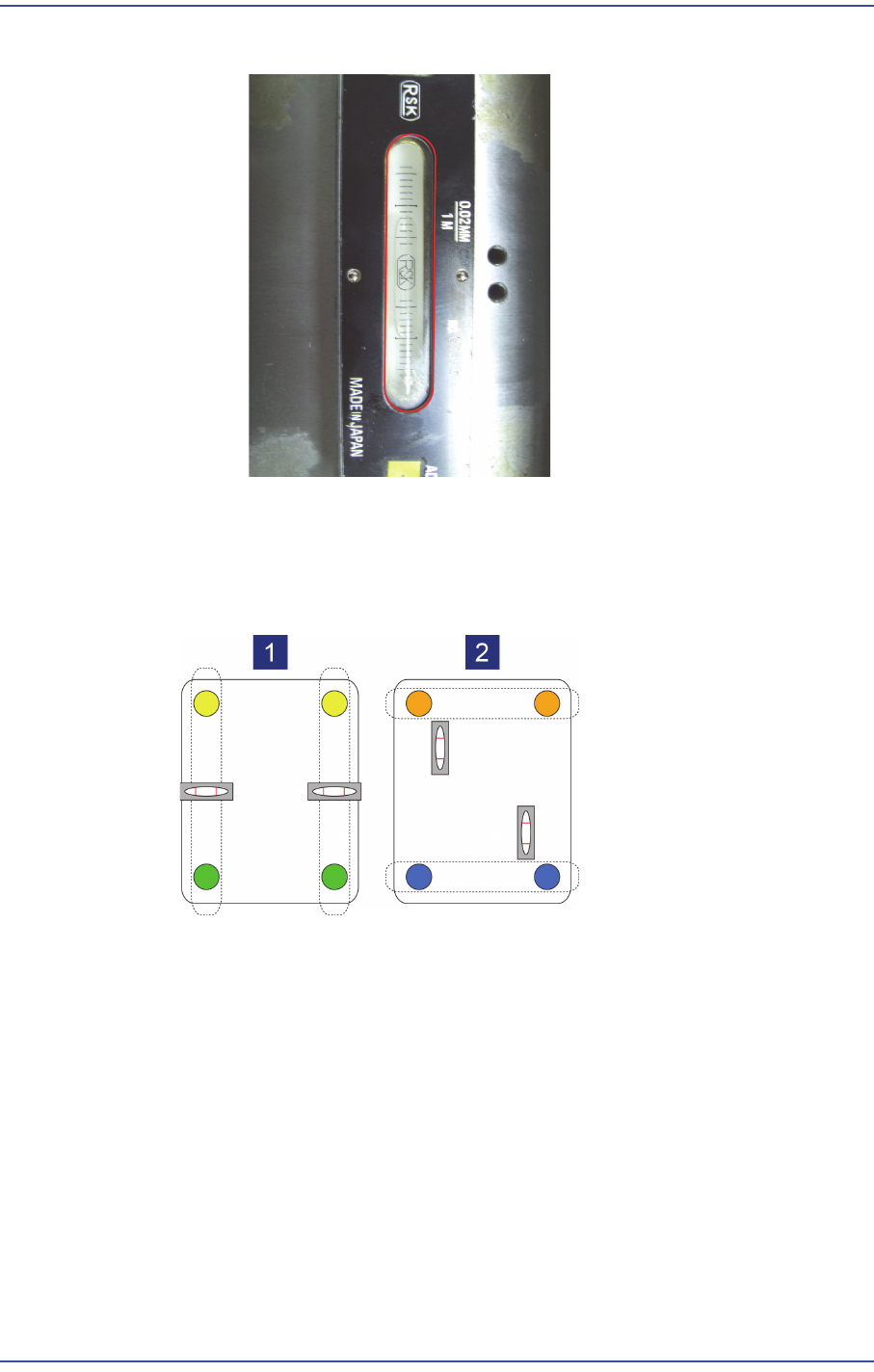

3) Place the levelers simultaneously to adjust the level. The allowable tolerance must be
adjusted within 0.05mm/m (1 scale is 0.02mm). Perform measurement by using 2 sets
of the levelers simultaneously.
Measuring position
XY-axis Direction
Push the X Gantry to the rear as far as possible and place the head in the
middle. Push the head to the rear side as far as possible, place two level
gauges on the middle of the upper surface of the Y-axis LM Guide and then
conduct measurement. (The center of the level is located on the 13th hole from
the LM Guide hole as a reference.)
1: X Axis Leveler
3-5
Installation & Operation
2: Y Axis Leveler
4) When adjusting the level of the foot, it is recommended to group 2 feet as one set and
adjust the level in each direction. (At this time, adjust the foot finally.)
Leveling in the front-rear direction: Adjust feet at the front and rear in pair
Leveling in the left-right direction: Adjust feet at the left and right in pair
5) The feet of the machine must be supported at uniform force, which is adjusted by
tightening the lock nut of the foot so that uniform force is applied to the feet. Check if
there is any loose foot. Tighten the lock nuts for 4 legs after leveling is finished.
3-6
Fast & Flexible Chip Shooter DECAN F2 Service Manual
Caution If the level of the machine is not adjusted, it has influence
on the accuracy of the machine. Be sure to level the
machine and check if the feet of the machine are tightened
properly.
There must be no grease on the lock nut and foot nut. If
there is grease on them, clean it completely. Otherwise, the
nut is loosened during machine operation, which may
damage the machine.
6) Install the machine that was move to the designated place after confirming the place of
the installed line from the responsible personnel of the customer.
7) Remove the vinyl sheet, internal packing material and desiccant.
Caution If the machine is unpacked by imposing excessive impact
on it, the machine cover may be damaged. Do not unpack
the machine by imposing excessive impact on it.

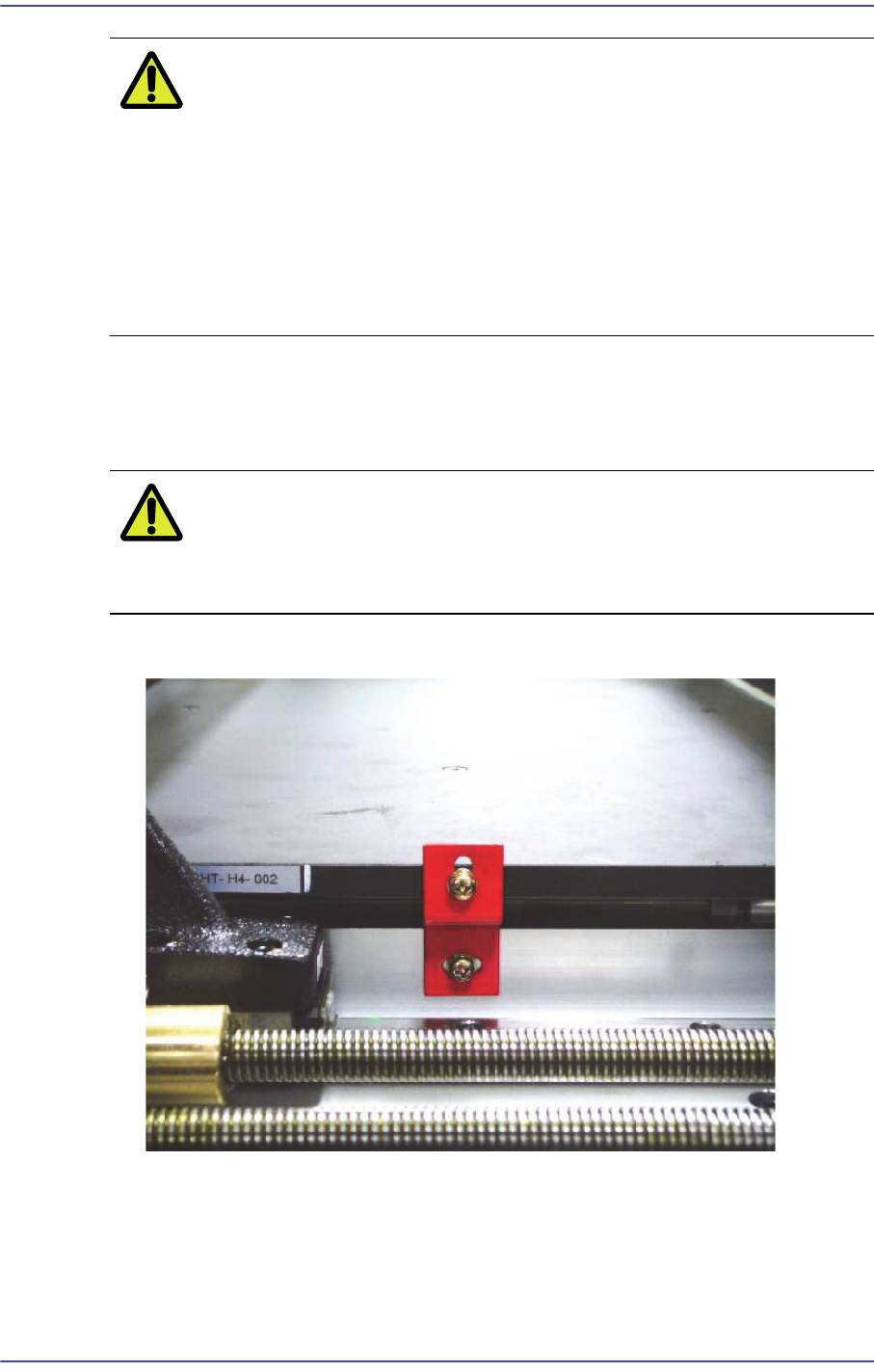

8) Remove the BUT fixing bracket.
